ALN 123608
7811250
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
UL Name : ALN UL 123608
Dimensions - 125 x 362 x 81
Description : Enclosure, aluminium
Package : 1
Unit : Piece
EAN : 6418074011404
SSTL number : 3420050
Electric No. Denmark : 8212004728
Electric No. Sweden : 2500914
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IP68 | IK08
Height (mm) : 125
Width (mm) : 362
Depth (mm) : 81
Height (inch) : 4.92
Width (inch) : 14.25
Depth (inch) : 3.19
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : NEMA__1_4_4X_6_12_13

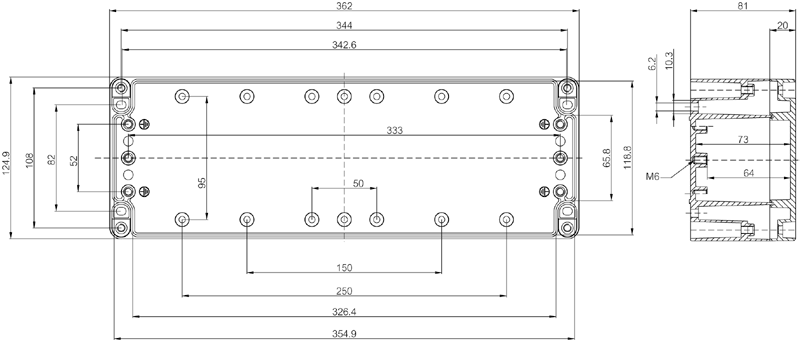

CAD Drawings
- ALN123605B.dwg
- ALN123603C.dwg
- FIBOX_ALN123603C.x_t
- FIBOX_ALN123603C.zip
- ALN123605B.dxf
- ALN123603C.dxf
- FIBOX_ALN123605B.stp
- FIBOX_ALN123603C.stp
- FIBOX_ALN123605B.x_t
- FIBOX_ALN123605B.zip
- 7811250_FIBOX_ALN123608.step
Please note, that we need you permission in order for you to view the CAD files.
ALN 123608 7811250 Accessories
ALN 123608

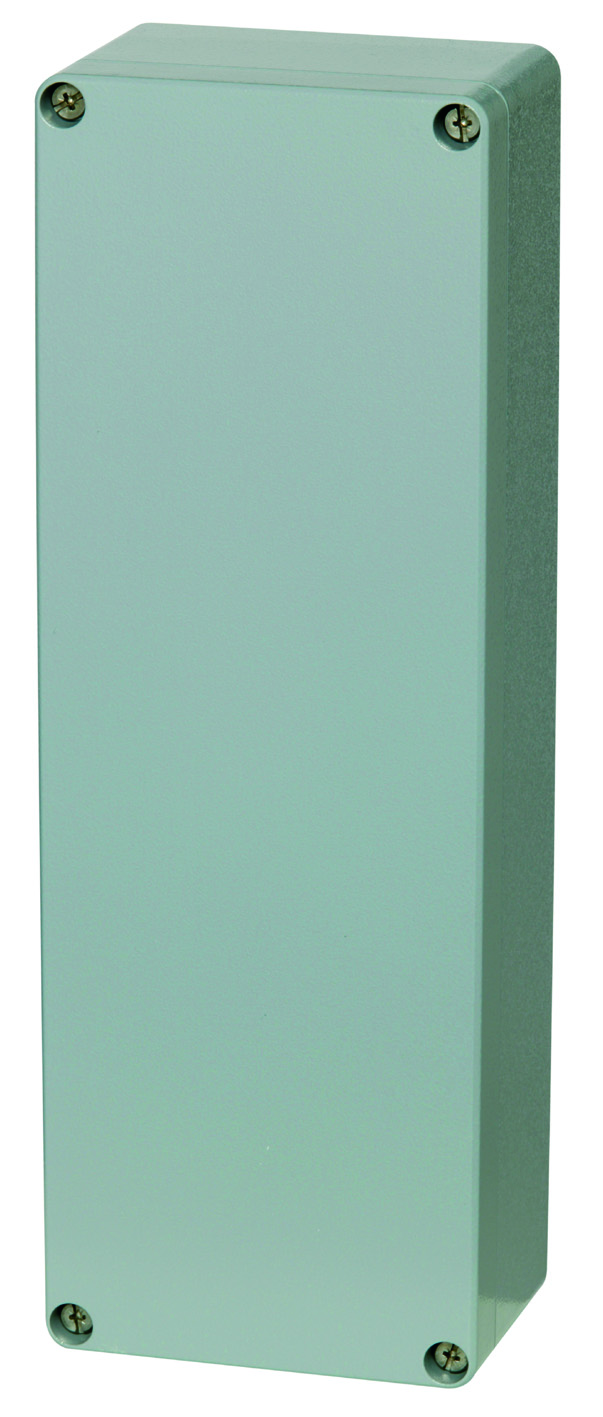

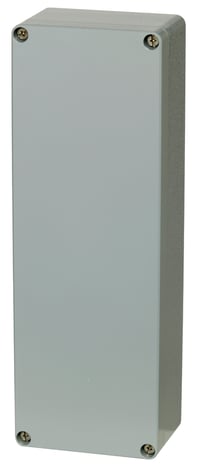

Sample image
Order symbol : ALN 123608
Product nr : 7811250
UL Name : ALN UL 123608
Description : Enclosure, aluminium
EAN : 6418074011404
El. number :
- Finland : 3420050
- Denmark : 8212004728
- Sweden : 2500914
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 125 | 362 | 81 |
| inch : | 4.92 | 14.25 | 3.19 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Accessories : | |
|---|---|
| AM 1212 |
Mounting plate, for enclosures:
(107 x 110 x 1.5) |
| MR 75005 | Selftapping taptite screw M5, for enclosures: |
| MRS 28541 |
Wall fastening lug (2 pcs), for enclosures:
(15 x 50 x 1) |
| ARH 12 |
DIN-35 Mounting rail, for enclosures:
(105 x 35 x 7) |
| AM 1236 |
Mounting plate, for enclosures:
(107 x 347 x 1.5) |
| AM 1222 |
Mounting plate, for enclosures:
(107 x 207 x 1.5) |
| ARH 36 |
DIN-35 Mounting rail, for enclosures:
(343 x 35 x 7) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | NEMA__1_4_4X_6_12_13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
