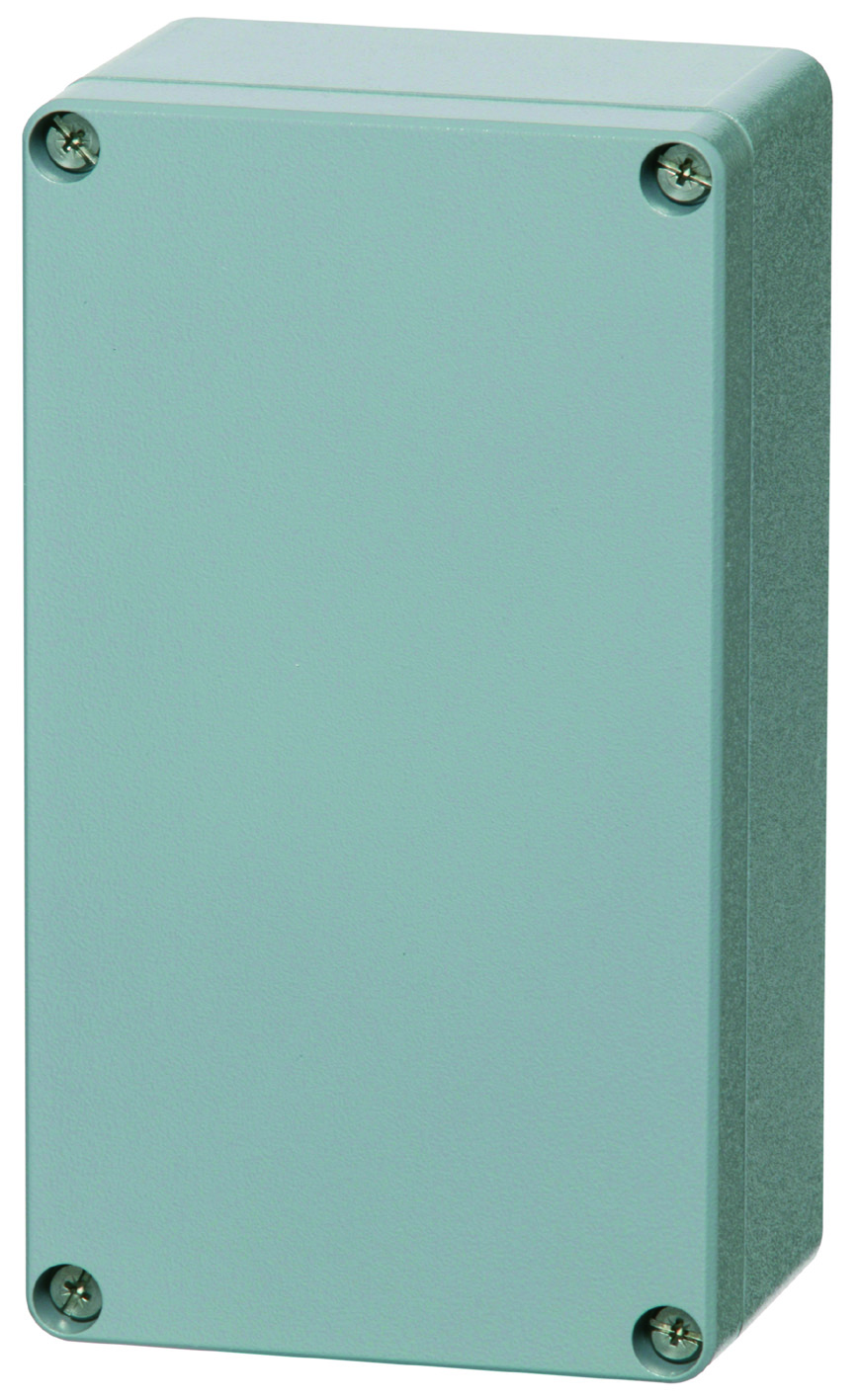

AL_122208
Next slide
AL_122208

ALUN / ALU 1222 / ALN 122208

ALN 122208 7811230

UL Code: 7811232

UL Name: ALN UL 122208

Dimensions 125 x 222 x 81.

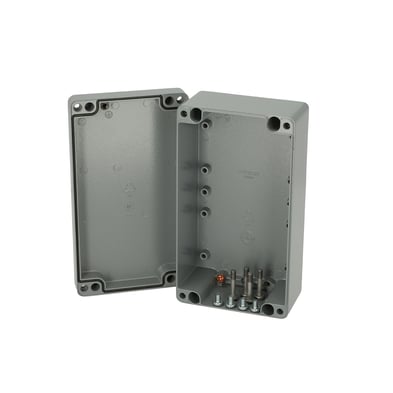

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC: IP66; IP67; IP68; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 7811230

Description: Aluminum enclosure

Remarks: Aluminium

Package: 1

Unit: Piece

EAN: 6418074016119

SSTL number: 3420049

Electric No. Denmark: 8212045693

Electric No. Sweden: 2500913

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 125

Width (mm): 222

Depth (mm): 81

Height (inch): 4.92

Width (inch): 8.74

Depth (inch): 3.19

Materials:

Material: Aluminum

Base colour: RAL 7036

Cover colour: RAL 7036

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -50 … 80

Temperature °F (short term): -60 … 285

Temperature °F (continuous): -60 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67; IP68;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Not insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating:

Glow Wire Test (IEC 695-2-1): C

NEMA Class:

Product is connected to following catalogs:

ALUN / ALU 1222 / ALN 122208

CAD files
Certificates and Declarations
Catalogues
Contact

ALN 122208

Fibox
AL_122208

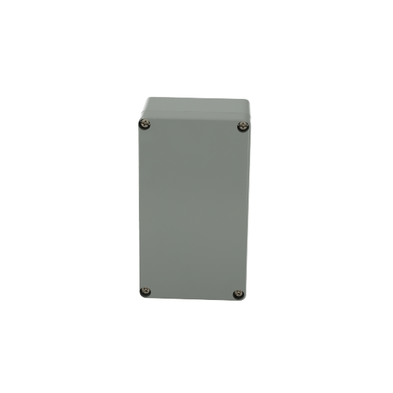

Sample image

Order symbol: ALN 122208

Product nbr: 7811230

UL Code: 7811232

UL Name: ALN UL 122208

Description: Aluminum enclosure

Remarks: Aluminium

EAN: 6418074016119

El. number:

  • Finland: 3420049
  • Denmark: 8212045693
  • Sweden: 2500913

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

ALN122208

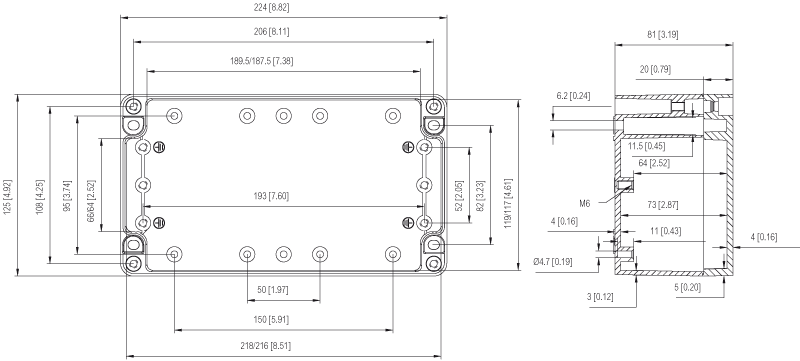

Dimensions: Height Width Depth
mm: 125 222 81
inch: 4.92 8.74 3.19
Materials:
Material: Aluminum
Base colour: RAL 7036
Cover colour: RAL 7036
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -50 … 80
Temperature °F (short term): -60 … 285
Temperature °F (continuous): -60 … 175
Accessories:
ARH 22 DIN-35 Mounting rail. for enclosures:
(203 x 35 x 1)
MR 75005 Selftapping taptite screw M5. for enclosures:
MRS 28541 Mounting foot kit (2 pcs). for enclosures:
(15 x 50 x 1)
AM 1222 Back Panel. for enclosures:
(107 x 207 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67; IP68;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
SGSFIMKO_ALU
