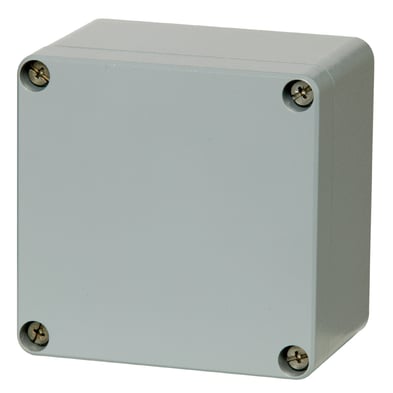

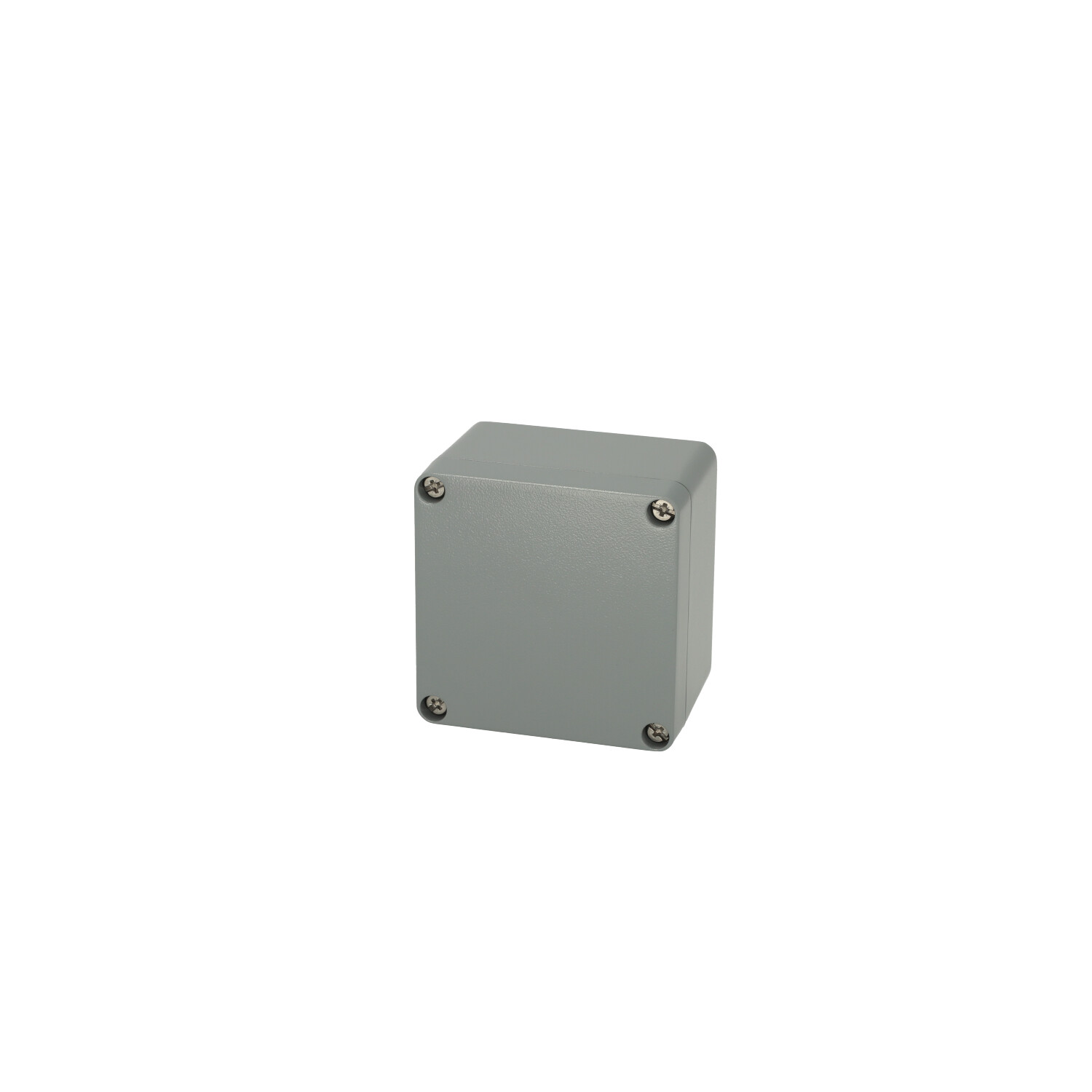

ALN 121208
7811210
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
UL Name : ALN UL 121208
Dimensions - 125 x 124 x 81
Description : Enclosure, aluminium
Remarks : Aluminium
Package : 4
Unit : Piece
EAN : 6418074016102
SSTL number : 3420048
Electric No. Denmark : 8212045680
Electric No. Sweden : 2500912
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IP68 | IK08
Height (mm) : 125
Width (mm) : 124
Depth (mm) : 81
Height (inch) : 4.92
Width (inch) : 4.88
Depth (inch) : 3.19
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : NEMA__1_4_4X_6_12_13
CAD Drawings
- ALN121205B.dwg
- ALN121203C.dwg
- FIBOX ALN_121202C.x_t
- FIBOX ALN_121202C.zip
- ALN121205B.dxf
- ALN121203C.dxf
- FIBOX ALN_121206B.stp
- FIBOX ALN_121202C.stp
- FIBOX ALN_121206B.x_t
- FIBOX ALN_121206B.zip
- 7811210_FIBOX_ALN121208.step
Please note, that we need you permission in order for you to view the CAD files.
ALN 121208 7811210 Accessories
ALN 121208

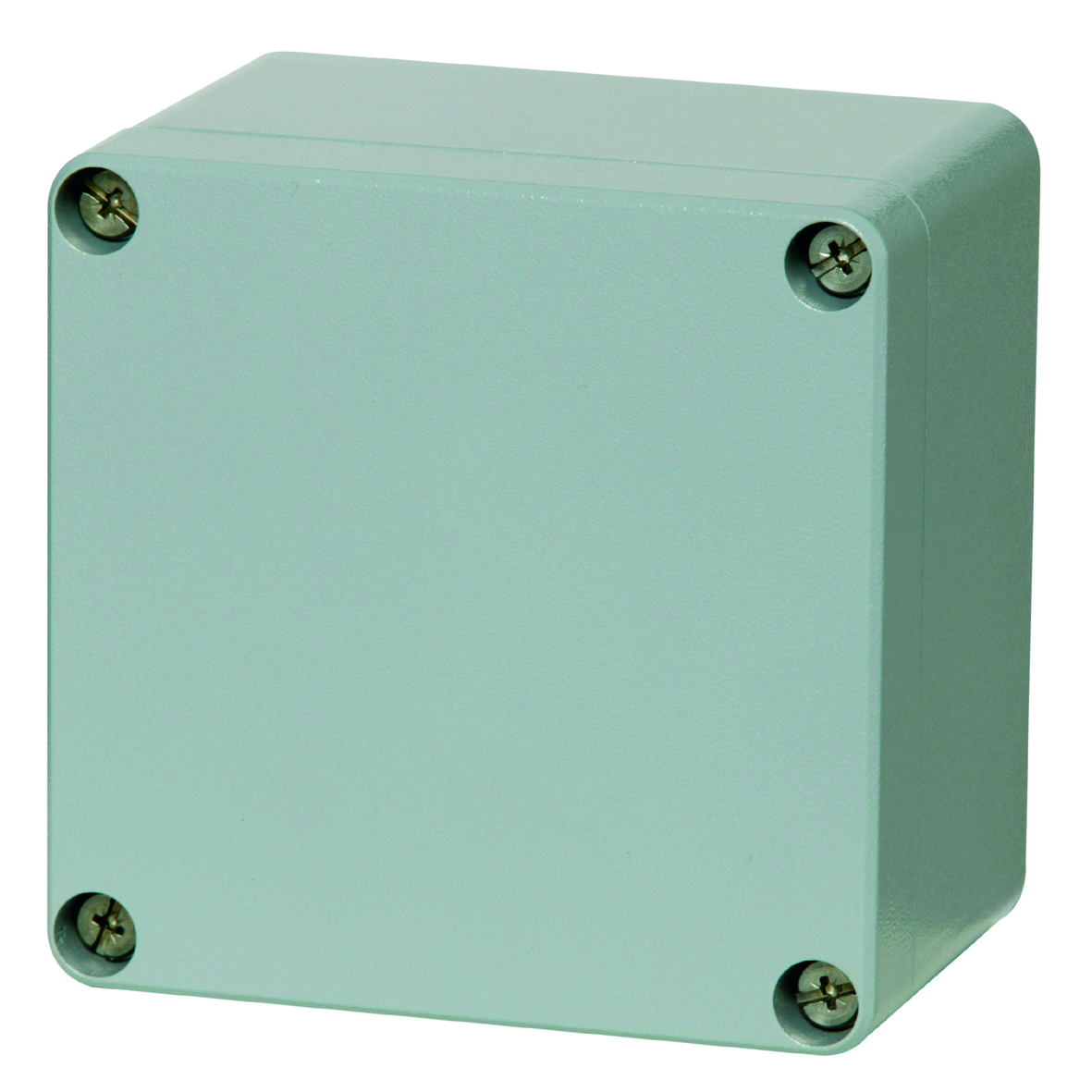

Sample image
Order symbol : ALN 121208
Product nr : 7811210
UL Name : ALN UL 121208
Description : Enclosure, aluminium
Remarks : Aluminium
EAN : 6418074016102
El. number :
- Finland : 3420048
- Denmark : 8212045680
- Sweden : 2500912
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 125 | 124 | 81 |
| inch : | 4.92 | 4.88 | 3.19 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Accessories : | |
|---|---|
| AM 1212 |
Mounting plate, for enclosures:
(107 x 110 x 1.5) |
| MR 75005 | Selftapping taptite screw M5, for enclosures: |
| MRS 28541 |
Wall fastening lug (2 pcs), for enclosures:
(15 x 50 x 1) |
| ARH 12 |
DIN-35 Mounting rail, for enclosures:
(105 x 35 x 7) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | NEMA__1_4_4X_6_12_13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
