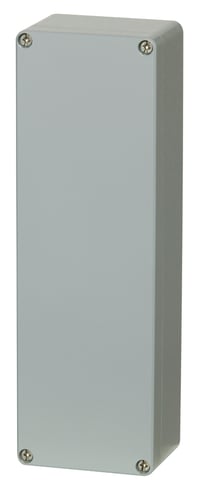

ALN 082506
7811190
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
UL Name : ALN UL 082506
Dimensions - 81 x 252 x 57
Description : Enclosure, aluminium
Package : 4
Unit : Piece
EAN : 6418074016096
SSTL number : 3420047
Electric No. Denmark : 8212004676
Electric No. Sweden : 2500911
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IP68 | IK08
Height (mm) : 81
Width (mm) : 252
Depth (mm) : 57
Height (inch) : 3.19
Width (inch) : 9.92
Depth (inch) : 2.24
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : NEMA__1_4_4X_6_12_13
CAD Drawings
- FIBOX ALN_082504B.dwg
- FIBOX ALN_082502C.dwg
- FIBOX ALN_082502C.dxf
- FIBOX ALN_082502C.x_t
- FIBOX ALN_082502C.zip
- FIBOX ALN_082504B.step
- FIBOX ALN_082502C.step
- FIBOX ALN_082504B.x_t
- FIBOX ALN_082504B.zip
- 7811190_FIBOX_ALN082506.step
Please note, that we need you permission in order for you to view the CAD files.
ALN 082506 7811190 Accessories
ALN 082506

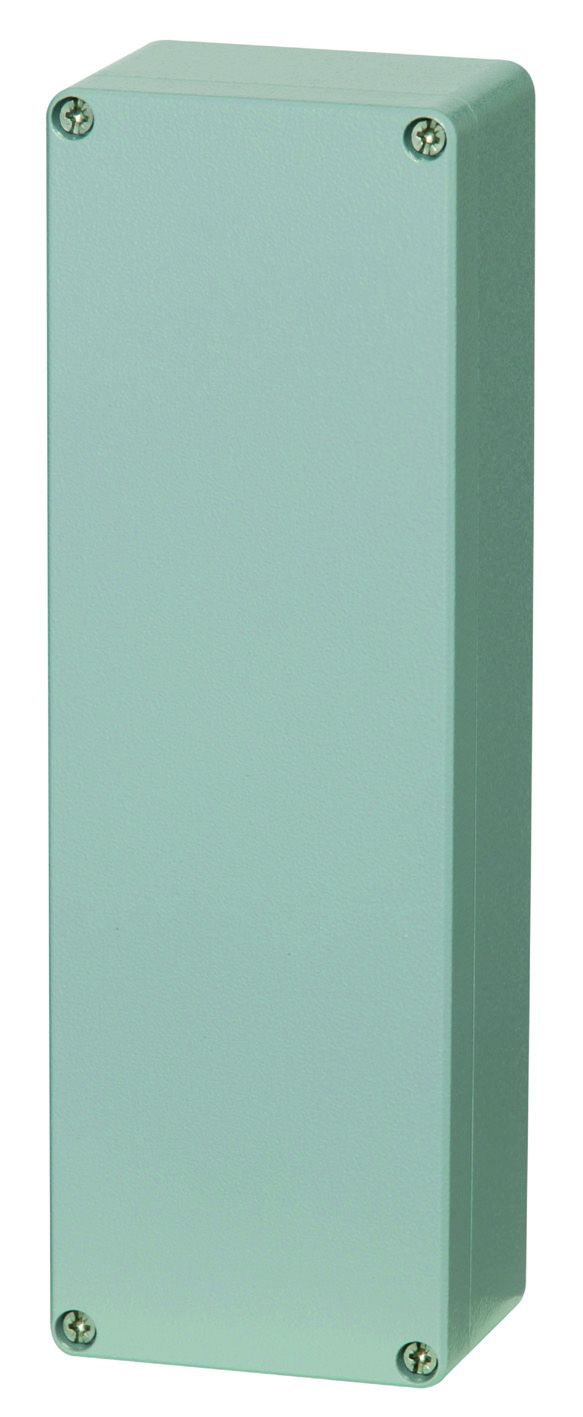

Sample image
Order symbol : ALN 082506
Product nr : 7811190
UL Name : ALN UL 082506
Description : Enclosure, aluminium
EAN : 6418074016096
El. number :
- Finland : 3420047
- Denmark : 8212004676
- Sweden : 2500911
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 81 | 252 | 57 |
| inch : | 3.19 | 9.92 | 2.24 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Accessories : | |
|---|---|
| ARH 26 |
DIN-35 Mounting rail, for enclosures:
(240 x 35 x 7) |
| AM 0825 |
Mounting plate, for enclosures:
(69 x 240 x 1.5) |
| MR 75003 | Selftapping taptite screw M3, for enclosures: |
| MRS 28540 |
Wall fastening lug (2 pcs), for enclosures:
(11 x 42 x 1) |
| ARM 0825 |
DIN-15 Mounting rail, for enclosures:
(240 x 15 x 5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | NEMA__1_4_4X_6_12_13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
