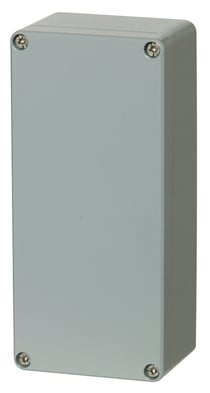

ALN 081806 7811170
UL Name : ALN UL 081806
Dimensions 81 x 177 x 57
Dimensions 3.19 x 6.97 x 2.24
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
- PC : IP66; IP67; IP68; IK08
Technical data
Product nr : 7811170
Description : Enclosure, aluminium
Remarks : Aluminium
Package : 4
Unit : Piece
EAN : 6418074016089
SSTL number : 3420046
Electric No. Denmark : 8212045664
Electric No. Sweden : 2500910
ETIM : EC000261
Height (mm) : 81
Width (mm) : 177
Depth (mm) : 57
Height (inch) : 3.19
Width (inch) : 6.97
Depth (inch) : 2.24
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : NEMA__1_4_4X_6_12_13
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
ALN 081806

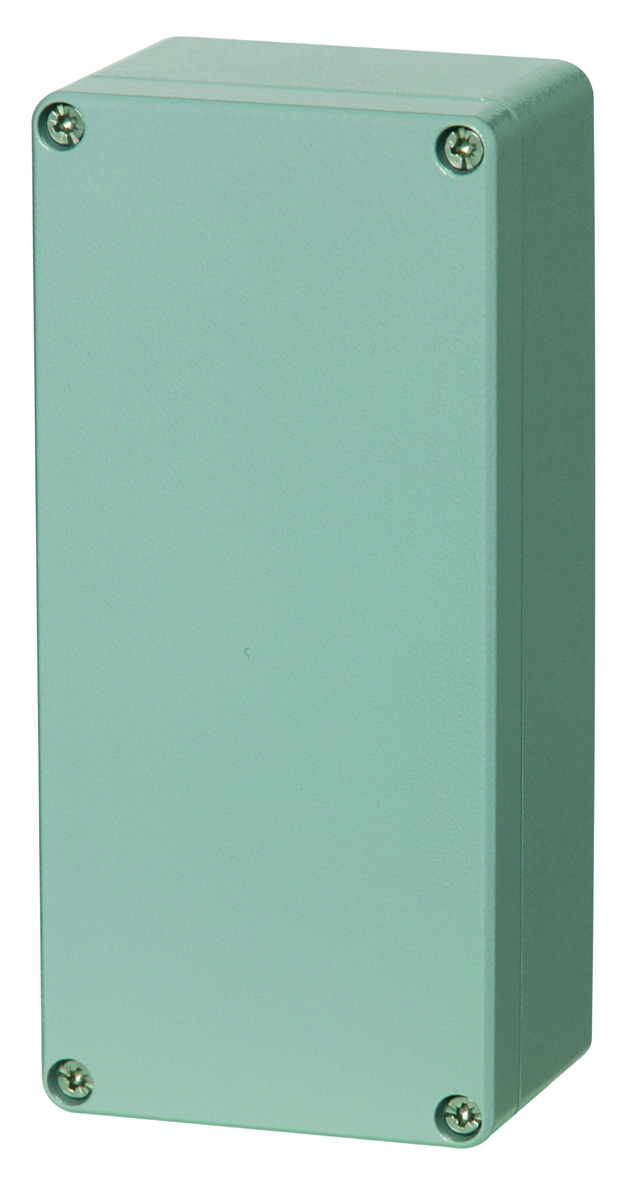

Sample image
Order symbol : ALN 081806
Product nr : 7811170
UL Name : ALN UL 081806
Description : Enclosure, aluminium
Remarks : Aluminium
EAN : 6418074016089
El. number :
- Finland : 3420046
- Denmark : 8212045664
- Sweden : 2500910
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 81 | 177 | 57 |
| inch : | 3.19 | 6.97 | 2.24 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Accessories : | |
|---|---|
| EKV 12 |
DIN-35 Mounting rail, for enclosures:
(160 x 35 x 1) |
| AM 0818 |
Mounting plate, for enclosures:
(69 x 164 x 1) |
| MR 75003 | Selftapping taptite screw M3, for enclosures: |
| MRS 28540 |
Wall fastening lug (2 pcs), for enclosures:
(11 x 42 x 1) |
| ARM 0818 |
DIN-15 Mounting rail, for enclosures:
(165 x 15 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | NEMA__1_4_4X_6_12_13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
