    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Previous slide

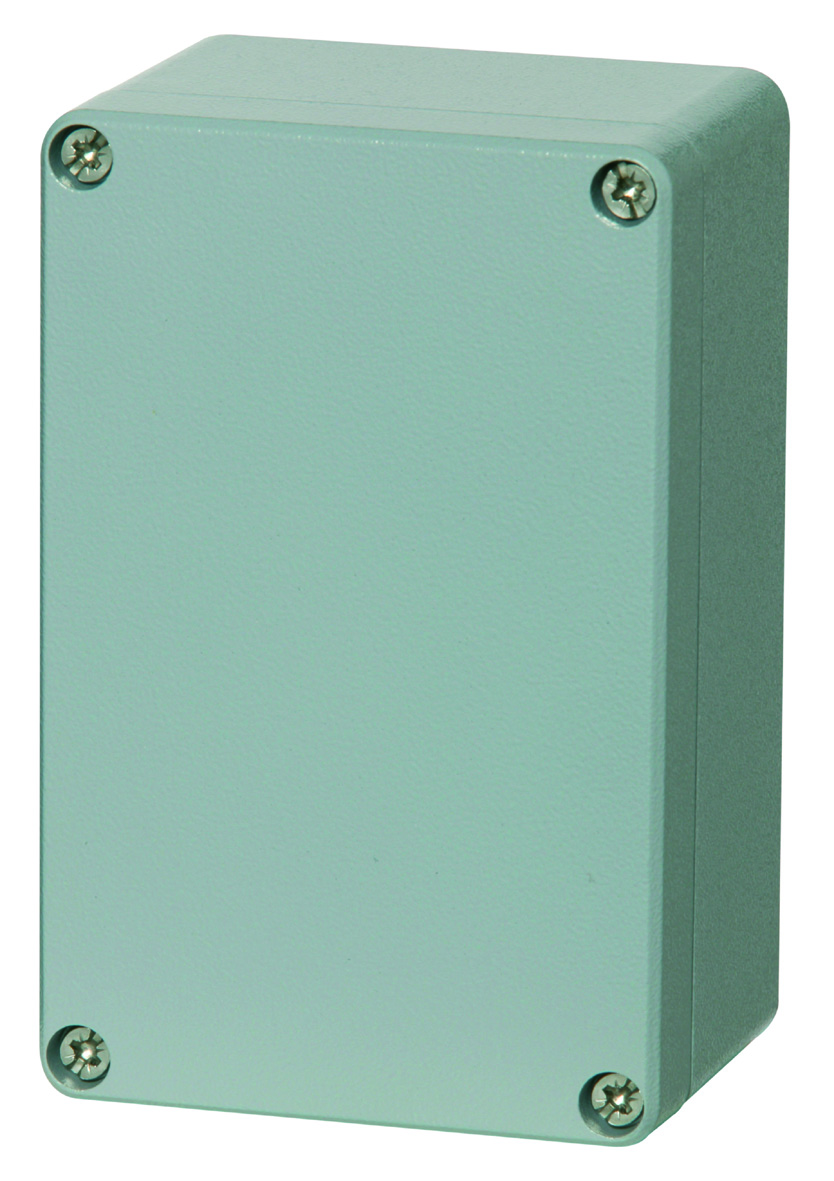

ALN 081306 product image 1
ALN 081306 product image 2
ALN 081306 product image 1
Next slide
ALN 081306 thumbnail image 1
ALN 081306 thumbnail image 2
ALN 081306 thumbnail image 1

ALUN / ALU 0813 / ALN 081306

ALN 081306 7811150

UL Name : ALN UL 081306

Dimensions 81 x 127 x 57

Dimensions 3.19 x 5 x 2.24

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC : IP66; IP67; IP68; IK08
Technical data
Product:

Product nr : 7811150

Description : Enclosure, aluminium

Remarks : Aluminium

Package : 4

Unit : Piece

EAN : 6418074016072

SSTL number : 3420045

Electric No. Denmark : 8212045651

Electric No. Sweden : 2500908

ETIM : EC000261

Dimensions :

Height (mm) : 81

Width (mm) : 127

Depth (mm) : 57

Height (inch) : 3.19

Width (inch) : 5

Depth (inch) : 2.24

Materials :

Material : Aluminum

Base colour : RAL_7001

Cover colour : RAL 7001

Gasket material : Polyurethane

Temperatures :

Temperature °C : -50 … 80

Temperature °F : -60 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66IP67IP68

Impact Resistance (EN 62262): IK08

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

UL Type : NEMA__1_4_4X_6_12_13

Product is connected to following catalogues :

ALUN / ALU 0813 / ALN 081306

ALN 081306

Fibox
7811150_ALN081306 360_ANIMA_SMALL.gif

Sample image

Order symbol : ALN 081306

Product nr : 7811150

UL Name : ALN UL 081306

Description : Enclosure, aluminium

Remarks : Aluminium

EAN : 6418074016072

El. number :

  • Finland : 3420045
  • Denmark : 8212045651
  • Sweden : 2500908

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

ALN081306
Dimensions : Height Width Depth
mm : 81 127 57
inch : 3.19 5 2.24
Materials :
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -50 … 80
Temperature °F (continuous) : -60 … 175
Accessories :
ARM 0813 DIN-15 Mounting rail, for enclosures:
(115 x 35 x 1)
MR 75003 Selftapping taptite screw M3, for enclosures:
AM 0813 Mounting plate, for enclosures:
(69 x 114 x 1)
MRS 28540 Wall fastening lug (2 pcs), for enclosures:
(11 x 42 x 1)
Ratings :
Ingress protection (EN 60529): IP66; IP67; IP68;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type NEMA__1_4_4X_6_12_13
Certificates :
SGSFIMKO_ALU
