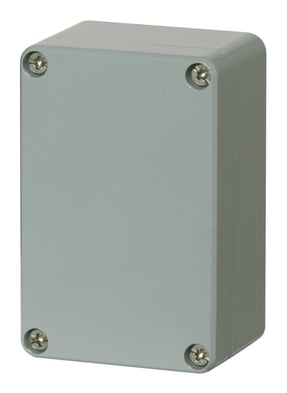

ALN 061005 product image 1

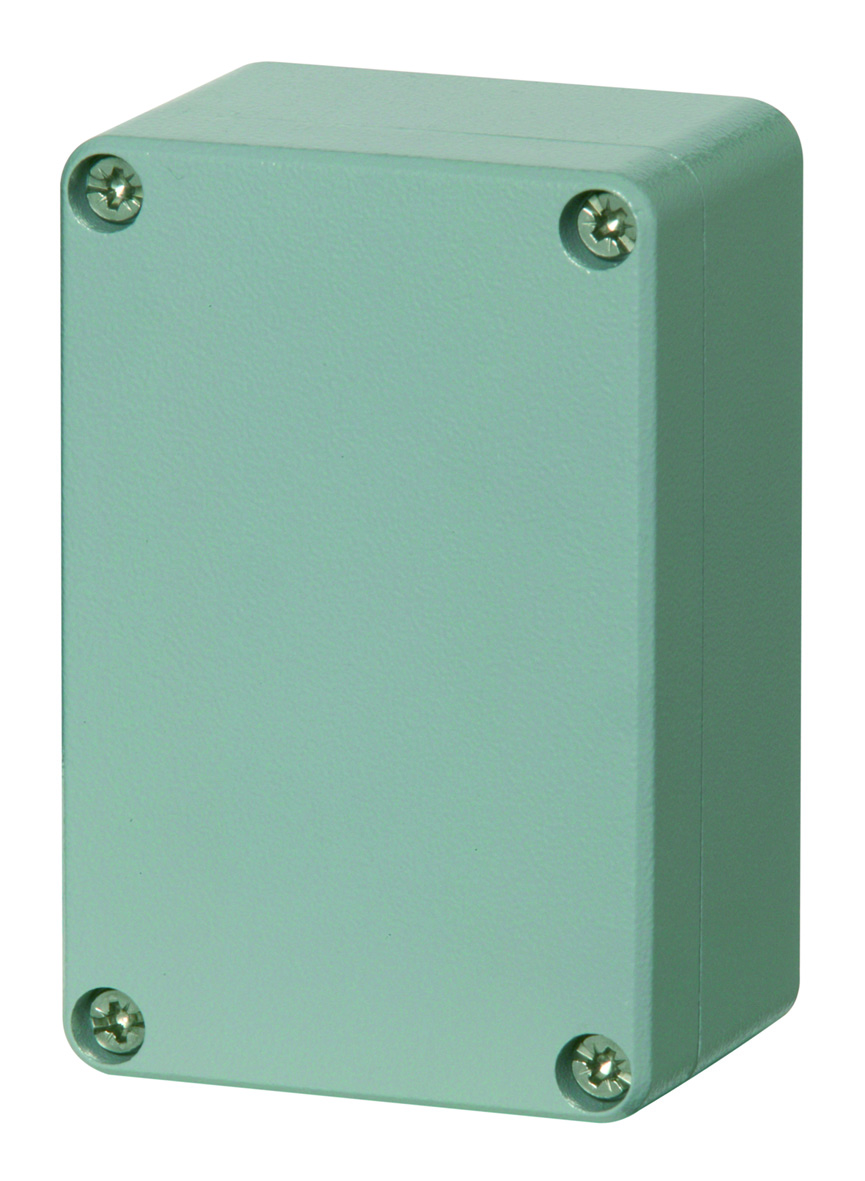

ALN 061005 product image 2
ALN 061005 product image 1
Next slide
ALN 061005 thumbnail image 1
ALN 061005 thumbnail image 2
ALN 061005 thumbnail image 1

ALUN / ALU 0610 / ALN 061005

ALN 061005 7811080

UL Name : ALN UL 061005

Dimensions 66 x 100 x 46

Dimensions 2.6 x 3.94 x 1.81

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC : IP66; IP67; IP68; IK08
Technical data
Product:

Product nr : 7811080

Description : Enclosure, aluminium

Remarks : Aluminium

Package : 4

Unit : Piece

EAN : 6418074016041

SSTL number : 3420042

Electric No. Denmark : 8212045622

Electric No. Sweden : 2500902

ETIM : EC000261

Dimensions :

Height (mm) : 66

Width (mm) : 100

Depth (mm) : 46

Height (inch) : 2.6

Width (inch) : 3.94

Depth (inch) : 1.81

Materials :

Material : Aluminum

Base colour : RAL_7001

Cover colour : RAL 7001

Gasket material : Polyurethane

Temperatures :

Temperature °C : -50 … 80

Temperature °F : -60 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66IP67IP68

Impact Resistance (EN 62262): IK08

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

UL Type : NEMA__1_4_4X_6_12_13

Product is connected to following catalogues :

ALUN / ALU 0610 / ALN 061005

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

ALN 061005

Fibox

Sample image

Order symbol : ALN 061005

Product nr : 7811080

UL Name : ALN UL 061005

Description : Enclosure, aluminium

Remarks : Aluminium

EAN : 6418074016041

El. number :

  • Finland : 3420042
  • Denmark : 8212045622
  • Sweden : 2500902

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

ALN061005
Dimensions : Height Width Depth
mm : 66 100 46
inch : 2.6 3.94 1.81
Materials :
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -50 … 80
Temperature °F (continuous) : -60 … 175
Accessories :
ARM 0610 DIN-15 Mounting rail, for enclosures:
(88 x 15 x 5.5)
MR 75003 Selftapping taptite screw M3, for enclosures:
MRS 28540 Wall fastening lug (2 pcs), for enclosures:
(11 x 42 x 1)
Ratings :
Ingress protection (EN 60529): IP66; IP67; IP68;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type NEMA__1_4_4X_6_12_13
Certificates :
SGSFIMKO_ALU
