ALN 060605
7811060
ALU aluminium enclosure range is designed to house DIN-rail mounted terminal block and various types of sensors.
UL Name : ALN UL 060605
Dimensions - 66 x 60 x 46
Description : Enclosure, aluminium
Remarks : Aluminium
Package : 4
Unit : Piece
EAN : 6418074016034
SSTL number : 3413045
Electric No. Denmark : 8212045619
Electric No. Sweden : 2500901
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IP68 | IK08
Height (mm) : 66
Width (mm) : 60
Depth (mm) : 46
Height (inch) : 2.6
Width (inch) : 2.36
Depth (inch) : 1.81
Material : Aluminum
Base colour : RAL_7001
Cover colour : RAL 7001
Gasket material : Polyurethane
Temperature °C : -50 … 80
Temperature °F : -60 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67IP68
Impact Resistance (EN 62262): IK08
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
UL Type : NEMA__1_4_4X_6_12_13

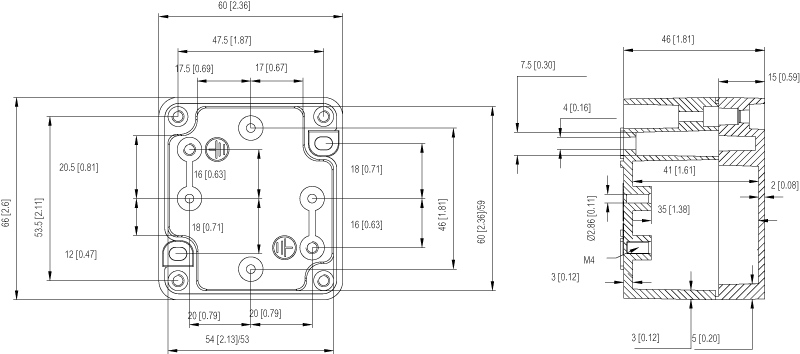

CAD Drawings
- ALN060601C.dwg
- FIBOX ALN_060603B.x_t
- FIBOX ALN_060602C.x_t
- FIBOX ALN_060603B.zip
- FIBOX ALN_060602C.zip
- ALN060603B.dwg
- ALN060603B.dxf
- ALN060601C.dxf
- FIBOX ALN_060603B.stp
- FIBOX ALN_060602C.stp
- 7811060_FIBOX_ALN060605.step
Please note, that we need you permission in order for you to view the CAD files.
ALN 060605

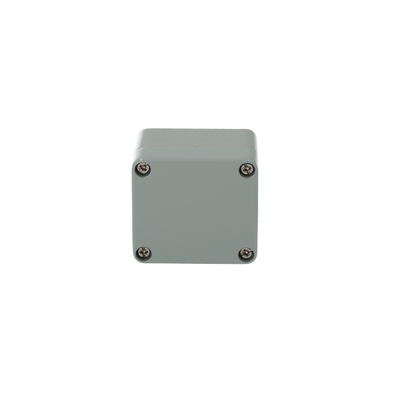

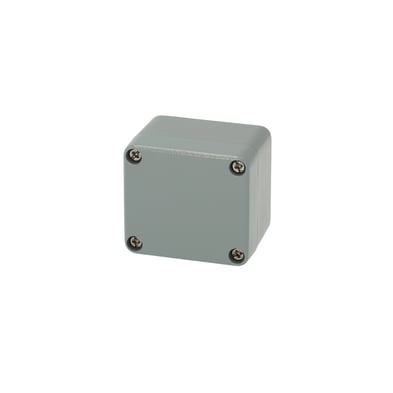

Sample image
Order symbol : ALN 060605
Product nr : 7811060
UL Name : ALN UL 060605
Description : Enclosure, aluminium
Remarks : Aluminium
EAN : 6418074016034
El. number :
- Finland : 3413045
- Denmark : 8212045619
- Sweden : 2500901
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 66 | 60 | 46 |
| inch : | 2.6 | 2.36 | 1.81 |
| Materials : | |
|---|---|
| Material : | Aluminum |
| Base colour : | RAL_7001 |
| Cover colour : | RAL 7001 |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -50 … 80 |
| Temperature °F (continuous) : | -60 … 175 |
| Accessories : | |
|---|---|
| MIV 5 |
DIN-35 Mounting rail, for enclosures:
(50 x 35 x 7) |
| TRM 0507 |
DIN-15 Mounting rail, for enclosures:
(48 x 15 x 5) |
| MRS 28540 |
Wall fastening lug (2 pcs), for enclosures:
(11 x 42 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; IP68; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| UL Type | NEMA__1_4_4X_6_12_13 |
| Certificates : | |
|---|---|
| SGSFIMKO_ALU | |
