Technical data
Product nr : 8120741
Description : Mounting plate (250x150 mm)
Remarks : Isolated, for size 300x200x150
Package : 1
Unit : Piece
EAN : 6418074082633
SSTL number : 3423822
Electric No. Denmark : 8212094482
ETIM : EC000213
Height (mm) : 250
Width (mm) : 150
Depth (mm) : 20
Height (inch) : 9.84
Width (inch) : 5.91
Depth (inch) : 0.79

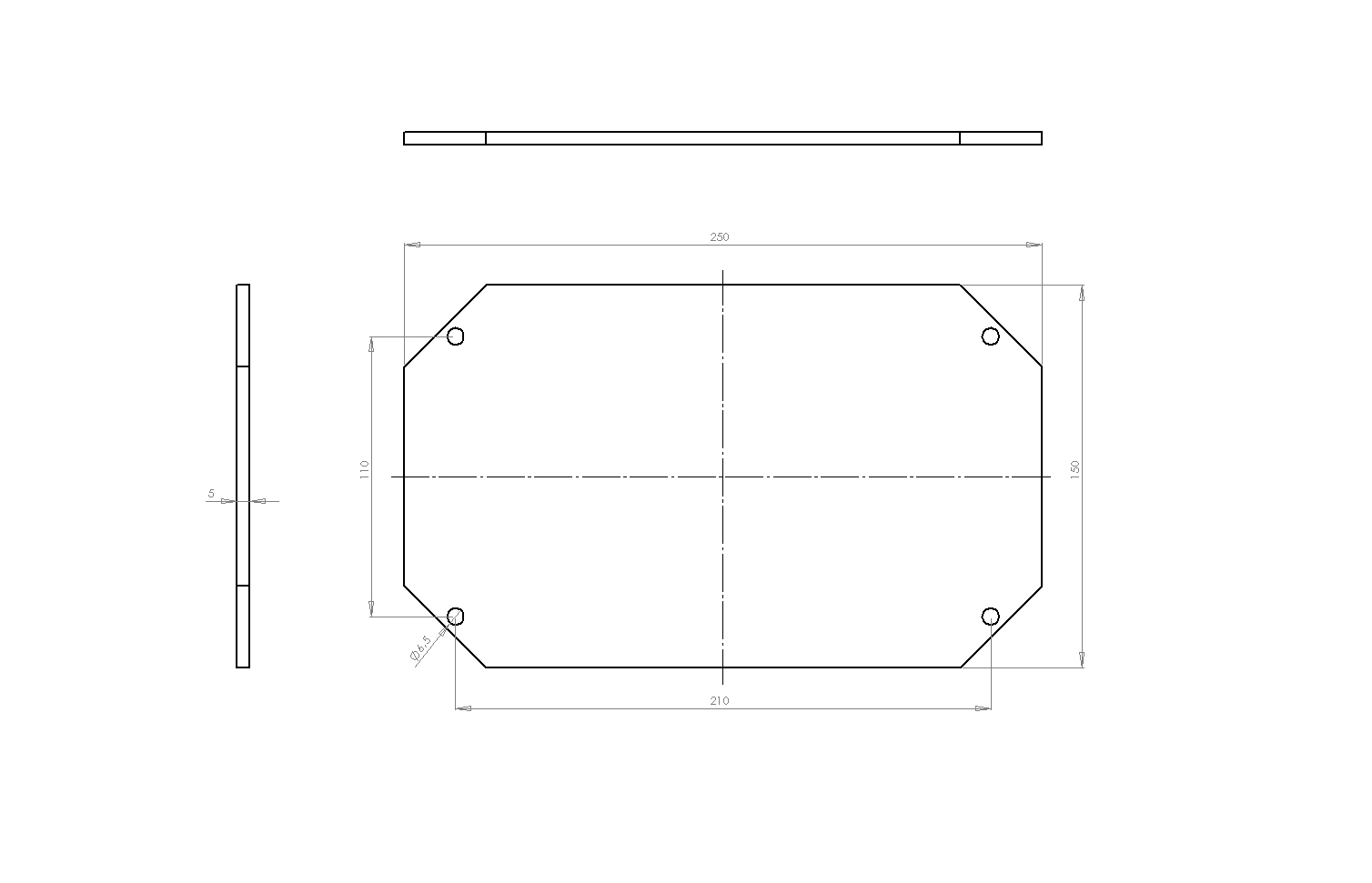

Dimensional Drawings
Catalogues
Contact
MPX ARCA 3020
Sample image
Order symbol : MPX ARCA 3020
Product nr : 8120741
Description : Mounting plate (250x150 mm)
Remarks : Isolated, for size 300x200x150
EAN : 6418074082633
El. number :
- Finland : 3423822
- Denmark : 8212094482
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 250 | 150 | 20 |
| inch : | 9.84 | 5.91 | 0.79 |
| Ratings : | |
|---|---|
| Electrical insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | No |
| UV resistance : | - |
