MPI EKJ 2819
3770101
"MPI – THE FUTURE MOUNTING PLATE, 100 % Corrosion Free , Light weight, Quick installation, High impact resistance, Strong heavy load, Radio frequency transparent, Sustainable"
Dimensions 259 x 164 x 4
Dimensions 10.2 x 6.46 x 0.16
Including : Plastic mountingplate, mounting screws, installation screws
Description : Multiperforated plastic mounting plate
Package : 4
Unit : piece
EAN : 6418074316868
SSTL number : 3424692
Electric No. Denmark : 8212098970
Electric No. Sweden : 2507124
ETIM : EC000213
Height (mm) : 259
Width (mm) : 164
Depth (mm) : 4
Height (inch) : 10.2
Width (inch) : 6.46
Depth (inch) : 0.16
Material : ABS
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Halogen free (DIN/VDE 0472, Part 815) : Yes

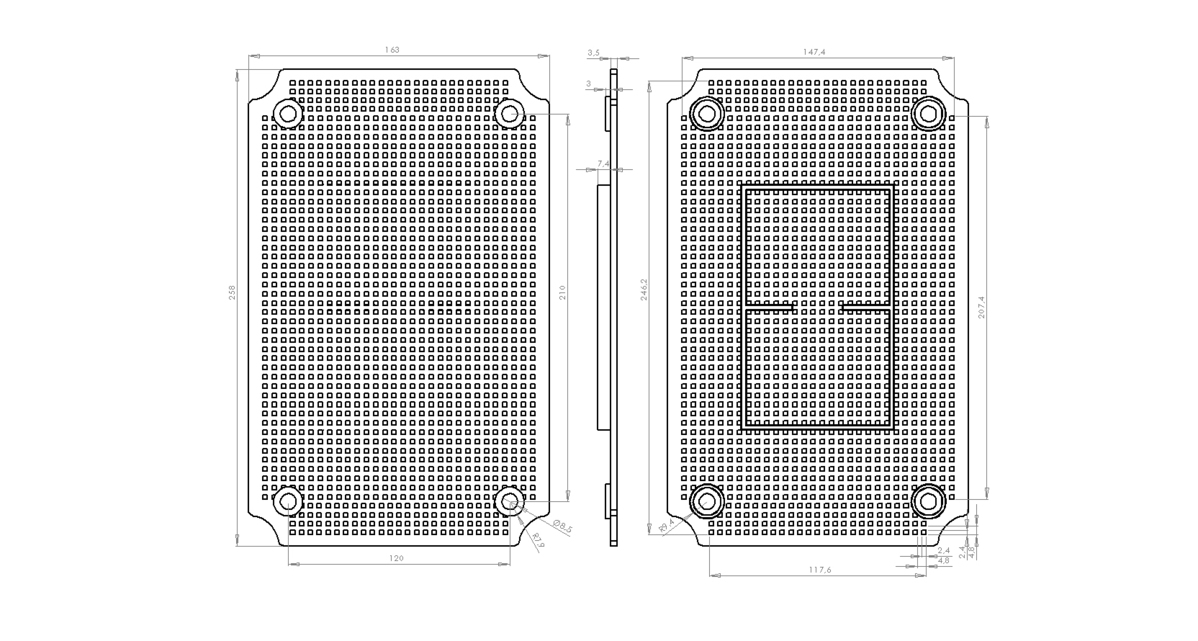

CAD Drawings
Lorem ipsum dolor sit amet consectetur. Est vitae sed nulla maecenas suspendisse purus nisl. Pretium a feugiat posuere orci id in. Ut in et sit risus gravida diam amet.
- 3770101_MPI_EKJ_2819.dxf
- 3770101_MPI_EKJ_2819_DIM.dwg
- 3770101_MPI_EKJ_2819.step
- 3770101_MPI_EKJ_2819.step
Please note, that we need you permission in order for you to view the CAD files.

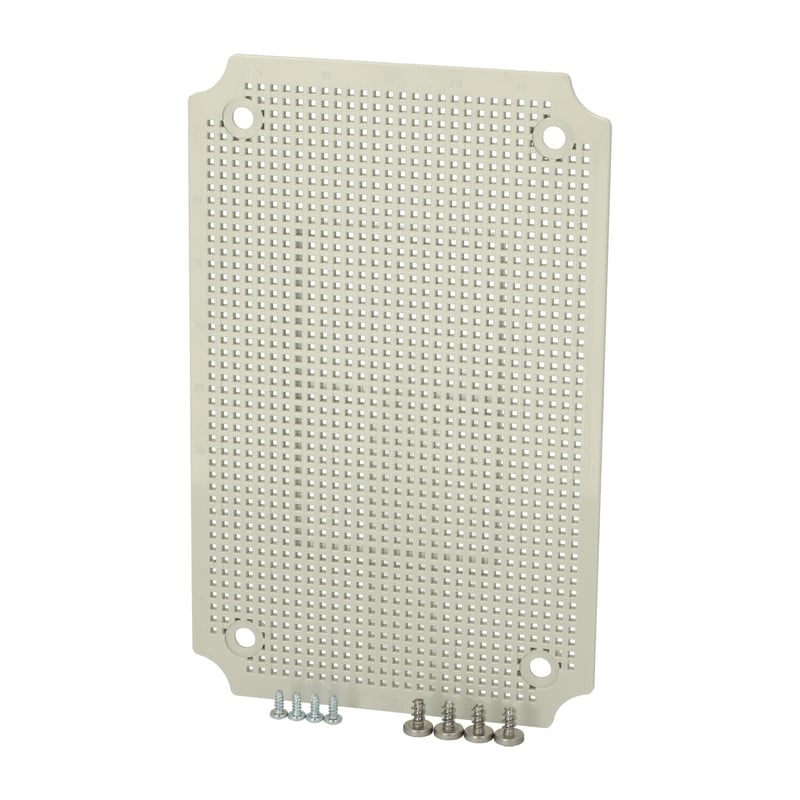

MPI EKJ 2819
Sample image
Order symbol : MPI EKJ 2819
Product nr : 3770101
Description : Multiperforated plastic mounting plate
EAN : 6418074316868
El. number :
- Finland : 3424692
- Denmark : 8212098970
- Sweden : 2507124
Including : Plastic mountingplate, mounting screws, installation screws
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 259 | 164 | 4 |
| inch : | 10.2 | 6.46 | 0.16 |
| Materials : | |
|---|---|
| Material : | ABS |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | - |
