Piccolo / PICCOLO M / ABS M 95 G

ABS M 95 G 8784318

Dimensions 230 x 140 x 95.

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

PC : IP66; IP67; IK08;

Product number : 8784318 Download product card

Technical data

Product:

Product nr: 8784318

Description: Enclosure. ABS

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074002334

SSTL number: 3423469

Electric No. Denmark: 8212002076

Electric No. Sweden: 2536729

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 230

Width (mm): 140

Depth (mm): 95

Height (inch) : 9.06

Width (inch) : 5.51

Depth (inch) : 3.74

Materials :

Material: ABS

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) :

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695) : 650 °C

NEMA Class :

Product is connected to following catalogs :

Piccolo / PICCOLO M / ABS M 95 G

Dimensional Drawings

CAD Files

Contact

Accessories

CHM-3

DIN-35 Mounting rail. for enclosures:
(110 x 35 x 1)

FM-3

DIN-35 Mounting rail. for enclosures:
(35 x 200 x 1)

FP 22046

Mounting foot kit (4 pcs)

M-MP

Back Panel. for enclosures:
(185 x 94 x 1)

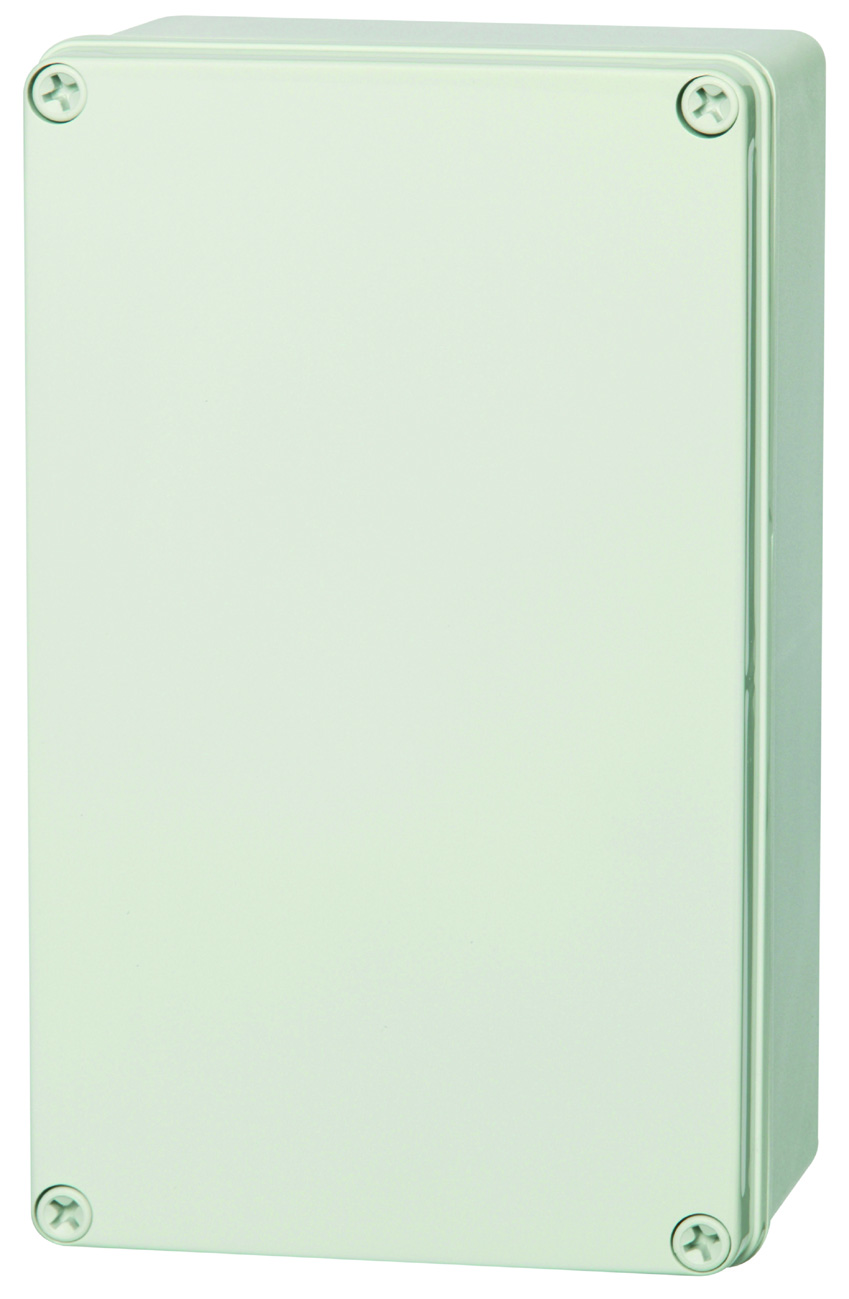

Sample image

Order symbol: ABS M 95 G

Product nbr: 8784318

Description: Enclosure. ABS

Remarks: Opaque cover

EAN: 6418074002334

El. number:

Finland: 3423469
Denmark: 8212002076
Sweden: 2536729

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

Dimensions:	Height	Width	Depth
mm:	230	140	95
inch:	9.06	5.51	3.74

Materials:
Material:	ABS
Base colour:	RAL 7035 -light grey
Cover colour:	RAL 7035 -light grey
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 80
Temperature °C (continuous):
Temperature °F (short term):	-40 … 175
Temperature °F (continuous):	-40 … 140

Accessories:
CHM-3	DIN-35 Mounting rail. for enclosures: (110 x 35 x 1)
FM-3	DIN-35 Mounting rail. for enclosures: (35 x 200 x 1)
FP 22046	Mounting foot kit (4 pcs)
M-MP	Back Panel. for enclosures: (185 x 94 x 1)

Rating:
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	-
Flammability Rating:	UL 94 HB
Glow Wire Test (IEC 695-2-1) °C:	650 °C
NEMA Class

Certificates:
SGSFIMKO_PICC_pc
