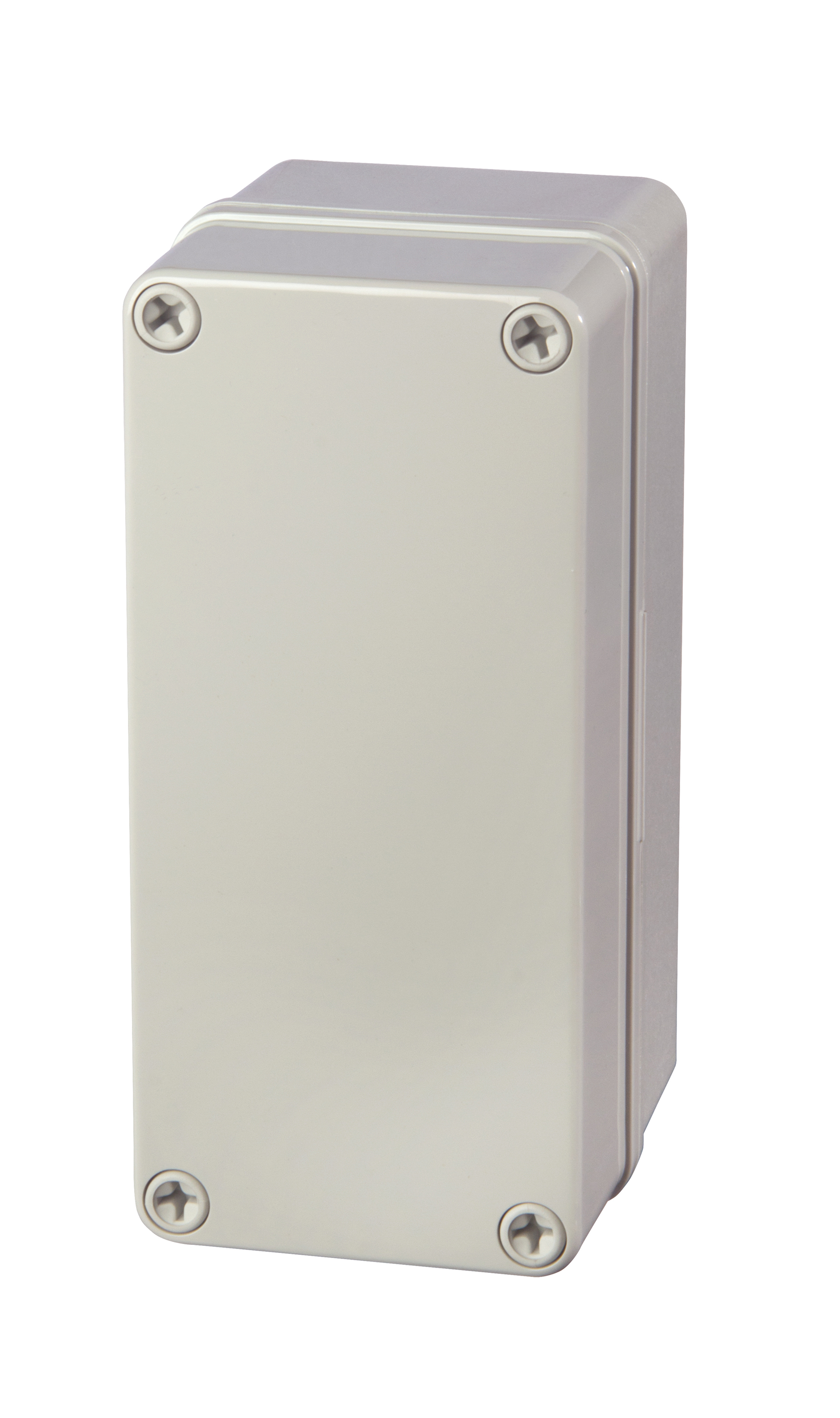

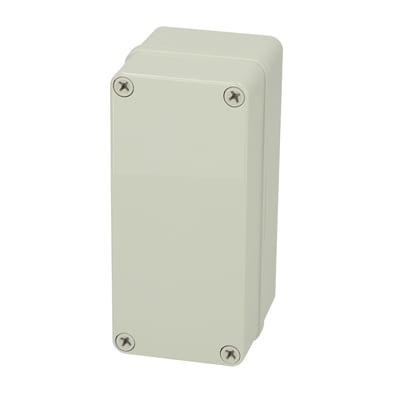

Piccolo / PICCOLO D / PC D 85 G

PC D 85 G 8724308

UL Code: 8714308

UL Name: UL PC D 85 G

Dimensions 170 x 80 x 85.

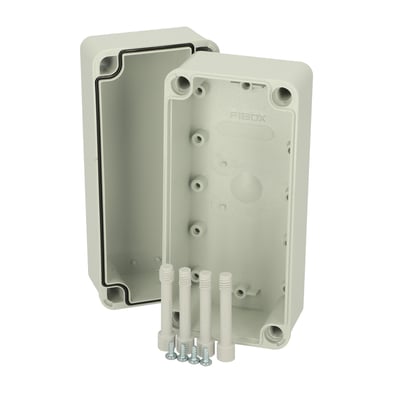

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

  • PC: IP66; IP67; IK08;
Technical data
Product:

Product nr: 8724308

Description: Enclosure. PC

Remarks: Opaque cover

Package: 8

Unit: Piece

EAN: 6418074002136

SSTL number: 3423411

Electric No. Denmark: 8212001572

Electric No. Sweden: 2536817

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 170

Width (mm): 80

Depth (mm): 85

Height (inch): 6.69

Width (inch): 3.15

Depth (inch): 3.35

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous):

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

Piccolo / PICCOLO D / PC D 85 G

CAD files
Certificates and Declarations
Catalogues
Contact

PC D 85 G

Fibox
PC_D_85_G

Sample image

Order symbol: PC D 85 G

Product nbr: 8724308

UL Code: 8714308

UL Name: UL PC D 85 G

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074002136

El. number:

  • Finland: 3423411
  • Denmark: 8212001572
  • Sweden: 2536817

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

PICDDIM
Dimensions: Height Width Depth
mm: 170 80 85
inch: 6.69 3.15 3.35
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous):
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
FP 22040 Mounting foot kit (2 pcs). for enclosures:
DH-3 DIN-35 Mounting rail. for enclosures:
(140 x 35 x 1)
D-MP Back Panel. for enclosures:
(140 x 54 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
SGSFIMKO_PICC_pc
