NEO PC 423215 G
4810002
Best features of screw cover and cabinet solutions combined into one. Modern outlook
UL Code : -
Dimensions - 420 x 320 x 150

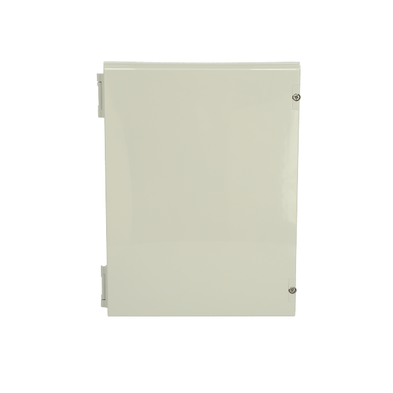

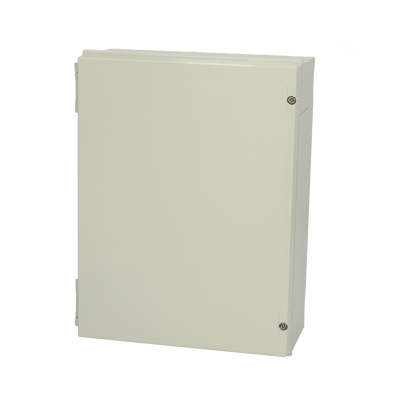

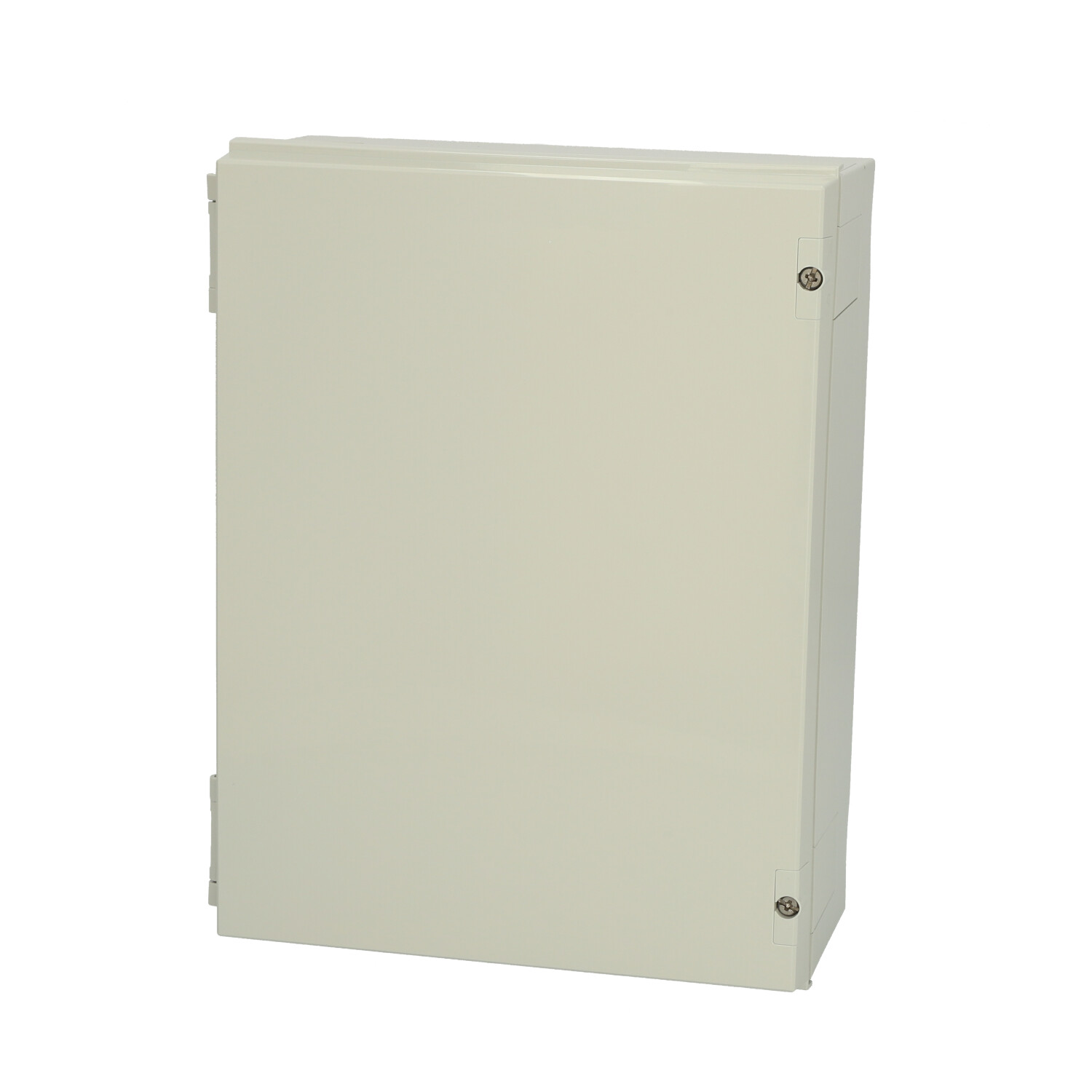

Description : Hinged polycarbonate enclosure with grey cover
Remarks : -
Package : 1
Unit : Piece
EAN : 6418074311351
SSTL number : 3424411
Electric No. Denmark : 8212098048
Electric No. Sweden : 2506217
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IK09
Height (mm) : 420
Width (mm) : 320
Depth (mm) : 150
Height (inch) : 16.54
Width (inch) : 12.6
Depth (inch) : 5.91
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards : EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK09
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- NEO 423203 Cover.x_t
- NEO 423212 Base.x_t
- NEO 423203 Cover.dwg
- NEO 423203 Cover.dxf
- NEO 423212 Base.dwg
- NEO 423212 Base.dxf
- 4810002_FIBOX_NEO_PC_423215G.step
Please note, that we need you permission in order for you to view the CAD files.
NEO PC 423215 G 4810002 Accessories
NEO PC 423215 G
Sample image
Order symbol : NEO PC 423215 G
Product nr : 4810002
UL Code : -
Description : Hinged polycarbonate enclosure with grey cover
Remarks : -
EAN : 6418074311351
El. number :
- Finland : 3424411
- Denmark : 8212098048
- Sweden : 2506217

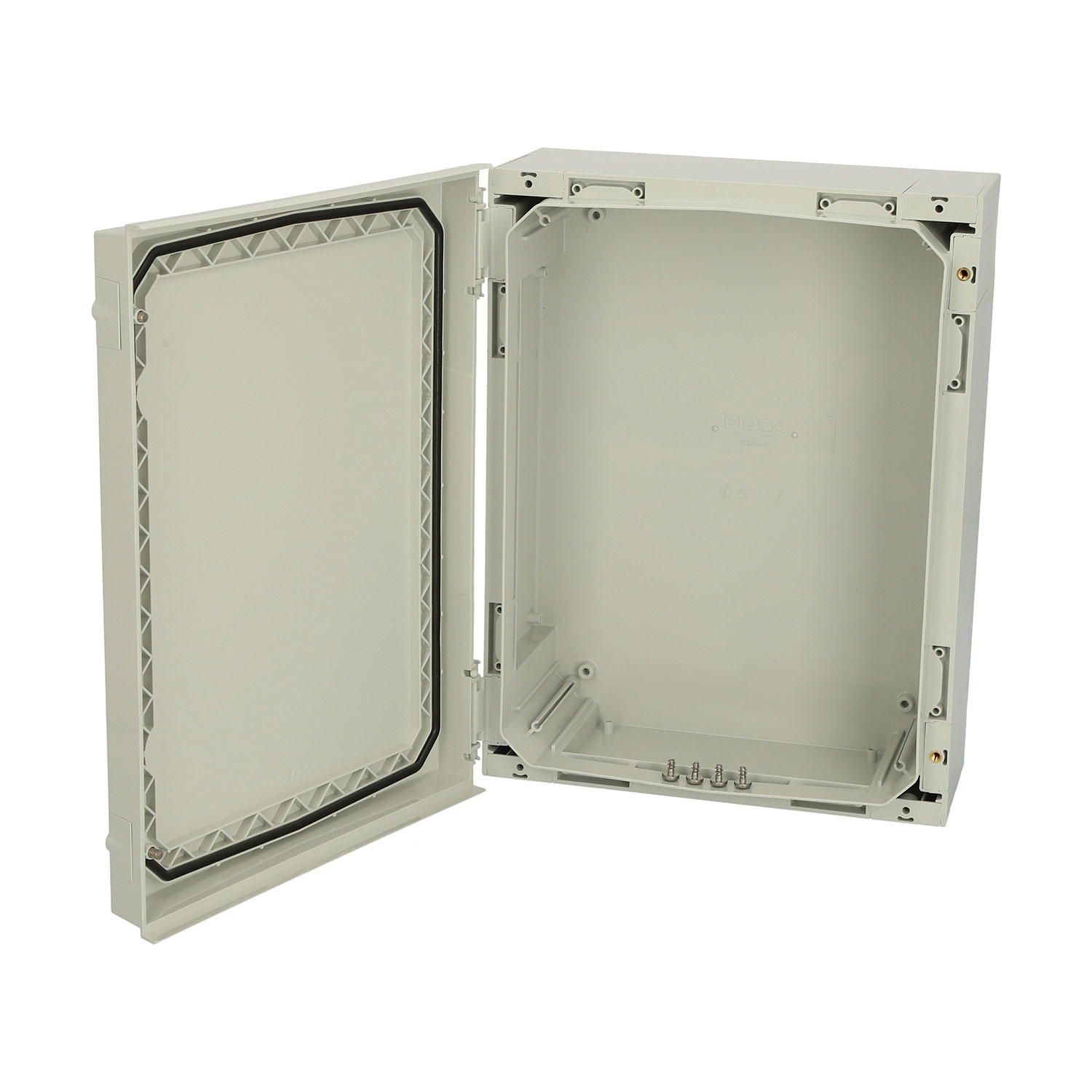

Including : Polycarbonate base and cover, mounting screws for mountingplate/DIN rail.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 420 | 320 | 150 |
| inch : | 16.54 | 12.6 | 5.91 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| NEO MPI 4232 |
Multiperforated plastic mounting plate
(375 x 265 x 3) |
| NEO MPS 4232 |
Metal mounting plate
(375 x 265 x 1.5) |
| PMK NEO 30 |
Polemounting kit
(400 x 300 x 30) |
| WMK NEO plastic |
Wall mounting kit plastic
(80 x 70 x 40) |
| DRS NEO 423215 |
DIN rail frame set
(379 x 279 x 106) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK09; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40693 A1.pdf | |
