Description : Cover, PC
Remarks : Grey
Package : 2
Unit : Piece
EAN : 6418074000415
SSTL number : 3420181
Electric No. Denmark : 8212007275
Electric No. Sweden : 2537876
ETIM : EC002620
Height (mm) : 560
Width (mm) : 380
Depth (mm) : 30
Height (inch) : 22.05
Width (inch) : 14.96
Depth (inch) : 1.18
Material : Polycarbonate
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- Eku30c.dwg
- Eku30c.dxf
- 3730320_FIBOX_EKU30C.step
- 3730320_FIBOX_EKU30C_G.step
Please note, that we need you permission in order for you to view the CAD files.
EKU 30-G

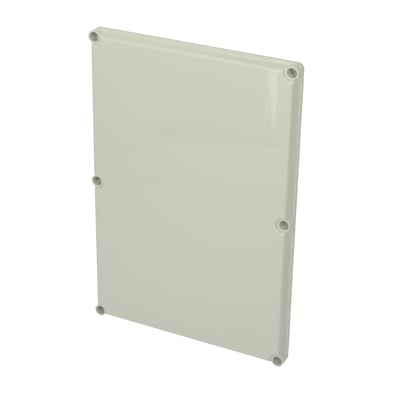

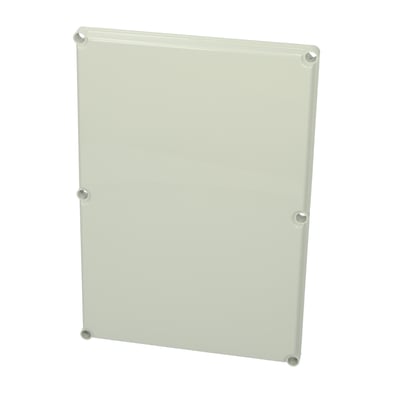

Sample image
Order symbol : EKU 30-G
Product nr : 3730320
Description : Cover, PC
Remarks : Grey
EAN : 6418074000415
El. number :
- Finland : 3420181
- Denmark : 8212007275
- Sweden : 2537876
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 560 | 380 | 30 |
| inch : | 22.05 | 14.96 | 1.18 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| EKUVT |
Mounting plate, for enclosures:
(518 x 338 x 1.5) |
| EKV 32 |
DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7) |
| EKUZR |
Extension frame, for enclosures:
(560 x 380 x 50) |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_EK | |
