Description : Base, PC
Remarks : Openings; 4x size 2 flange
Package : 4
Unit : Piece
EAN : 6418074000088
SSTL number : 3420120
Electric No. Denmark : 8212006564
Electric No. Sweden : 2537814
ETIM : EC002620
Height (mm) : 380
Width (mm) : 280
Depth (mm) : 100
Height (inch) : 14.96
Width (inch) : 11.02
Depth (inch) : 3.94
Material : Polycarbonate
Base colour : RAL_7035
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- Ekp100b.dwg
- Ekp100b.dxf
- 3530133_Fibox_EKPE_380x280x100_B.step
- 3530133_Fibox_EKPE_380x280x100_B.step
Please note, that we need you permission in order for you to view the CAD files.
EKPE 3530133 Accessories
EKPE

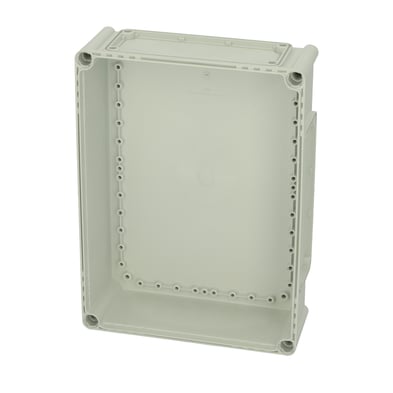

Sample image
Order symbol : EKPE
Product nr : 3530133
Description : Base, PC
Remarks : Openings; 4x size 2 flange
EAN : 6418074000088
El. number :
- Finland : 3420120
- Denmark : 8212006564
- Sweden : 2537814
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 380 | 280 | 100 |
| inch : | 14.96 | 11.02 | 3.94 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| EKV 32 |
DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7) |
| EKV 22 |
DIN-35 Mounting rail, for enclosures:
(235 x 35 x 7) |
| EKPZR |
Extension frame, for enclosures:
(380 x 280 x 50) |
| EKPVT |
Mounting plate, for enclosures:
(338 x 238 x 1.5) |
| MPI EKP 3828 |
Multiperforated plastic mounting plate
(338 x 238 x 4) |
| DRS EKP 2838 2x19M |
DIN rail set
(364 x 264 x 90) |
| DRS EKP 3828 3x14M |
DIN rail set
(364 x 264 x 90) |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_EK | |
