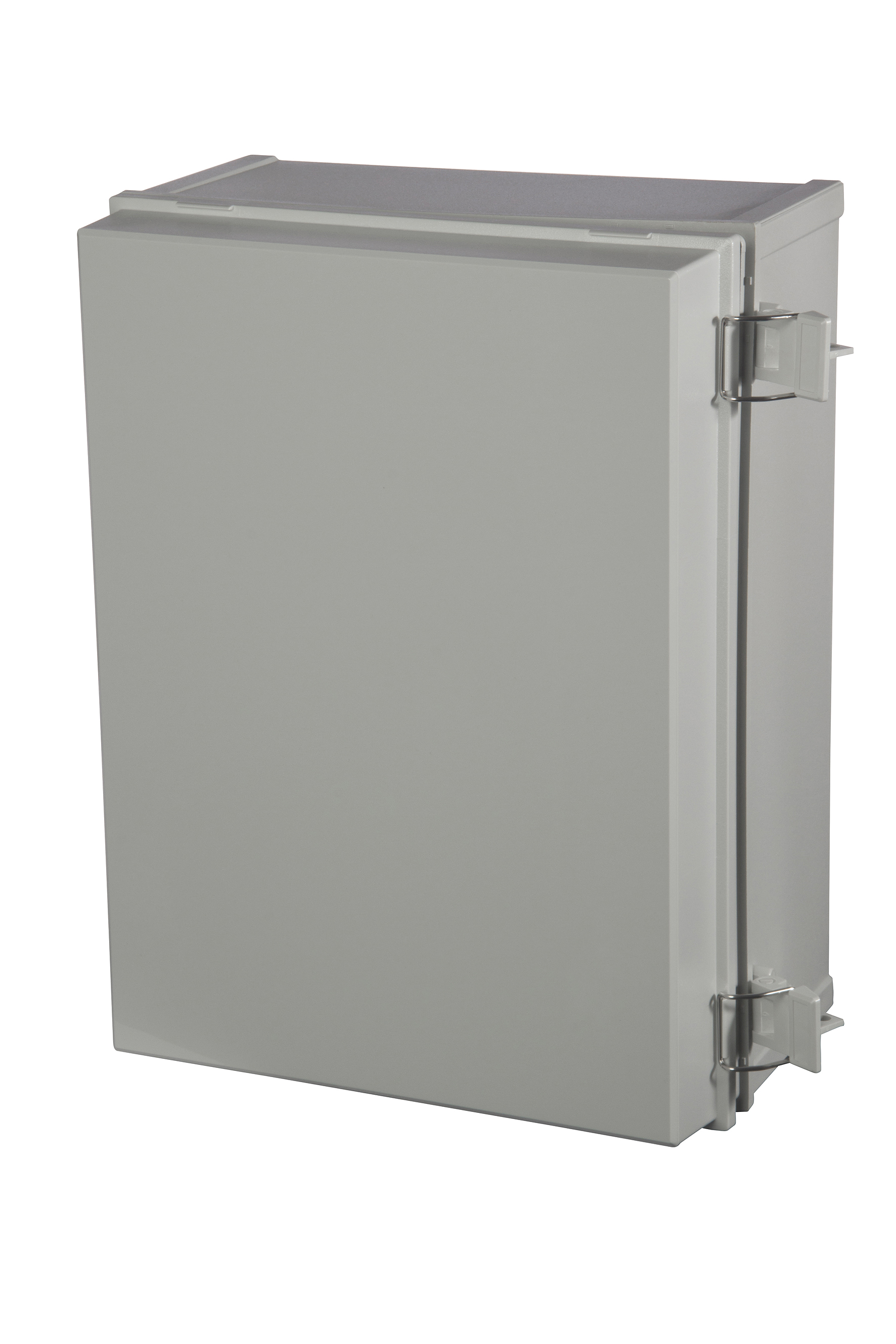

CAB_PC_403018_G
Next slide
CAB_PC_403018_G

CAB / CAB 4030 / CAB PC 403018 G

CAB PC 403018 G 8113350

UL Code: 8143350

UL Name: UL CAB PC 403018 G

Dimensions 400 x 300 x 180.

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

  • PC: IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 8113350

Description: Opaque door

Remarks: Latches on the long side

Package: 1

Unit: Piece

EAN: 6418074020208

SSTL number: 3424114

Electric No. Denmark: 8212020249

Electric No. Sweden: 2539971

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 400

Width (mm): 300

Depth (mm): 180

Height (inch): 15.75

Width (inch): 11.81

Depth (inch): 7.09

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

CAB / CAB 4030 / CAB PC 403018 G

CAB PC 403018 G

Fibox
CAB_PC_403018_G

Sample image

Order symbol: CAB PC 403018 G

Product nbr: 8113350

UL Code: 8143350

UL Name: UL CAB PC 403018 G

Description: Opaque door

Remarks: Latches on the long side

EAN: 6418074020208

El. number:

  • Finland: 3424114
  • Denmark: 8212020249
  • Sweden: 2539971

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB4030S
Dimensions: Height Width Depth
mm: 400 300 180
inch: 15.75 11.81 7.09
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
DRF 43/44 DIN rail frame kit. for enclosures:
MB 12225 AL Swing door kit
EKIV 37 DIN-35 Mounting rail. for enclosures:
(366 x 35 x 1)
EKIV 27 DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)
EKIV 43 PL Back Panel. plastic. for enclosures:
(370 x 270 x 2)
EKIV 43 Back Panel. for enclosures:
(370 x 270 x 1)
FP A 43 Swing-out door/Front panel (aluminum). for enclosures:
(268 x 368 x 1)
Rating:
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40854
