CAB / CAB 2030 / CAB PC 203018 T

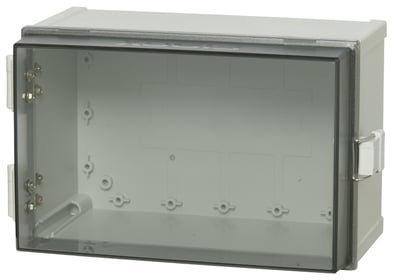

CAB PC 203018 T 8113031

UL Code: 8143031

UL Name: UL CAB PC 203018 T

Dimensions 200 x 300 x 180.

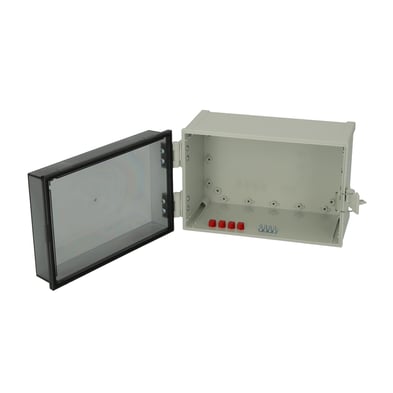

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

  • PC: IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 8113031

Description: Smoked transparent door

Remarks: Latch on the short side

Package: 1

Unit: Piece

EAN: 6418074020031

SSTL number: 3424153

Electric No. Denmark: 8212020414

Electric No. Sweden: 2539937

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 200

Width (mm): 300

Depth (mm): 180

Height (inch): 7.87

Width (inch): 11.81

Depth (inch): 7.09

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: Clear transparent

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

CAB / CAB 2030 / CAB PC 203018 T

CAD files
Catalogues
Contact

CAB PC 203018 T

Fibox
CAB_PC_203018_T

Sample image

Order symbol: CAB PC 203018 T

Product nbr: 8113031

UL Code: 8143031

UL Name: UL CAB PC 203018 T

Description: Smoked transparent door

Remarks: Latch on the short side

EAN: 6418074020031

El. number:

  • Finland: 3424153
  • Denmark: 8212020414
  • Sweden: 2539937

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB3020S
Dimensions: Height Width Depth
mm: 200 300 180
inch: 7.87 11.81 7.09
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: Clear transparent
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
MB 12225 AL Swing door kit
EKIV 27 DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)
DRF 23 DIN rail frame kit. for enclosures:
FP A 23 Swing-out door/Front panel (aluminum). for enclosures:
(168 x 268 x 1)
EKIV 17 DIN-35 Mounting rail. for enclosures:
(166 x 35 x 1)
EKIV 23 Back Panel. for enclosures:
(170 x 270 x 1)
Rating:
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40854
