ARCA JIC / AR 664 / AR664SC

AR664SC 8561001

Dimensions 152 x 152 x 102.

Including: Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

  • PC: IP66; IP67; IK09;
Technical data
Product:

Product nr: 8561001

Description: PC Enclosure

Remarks: Opaque screw cover

Package: 1

Unit: Piece

EAN: 6418074066275

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 152

Width (mm): 152

Depth (mm): 102

Height (inch): 6

Width (inch): 6

Depth (inch): 4

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 140

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK09;

Electrical insulation: Not insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 508

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class: NEMA 4, 4X, 6, 6P, 12, 12K and 13

Product is connected to following catalogs:

ARCA JIC / AR 664 / AR664SC

Dimensional Drawings
CAD files
Certificates and Declarations
Catalogues
Contact

AR664SC

Fibox
AR664SC

Sample image

Order symbol: AR664SC

Product nbr: 8561001

Description: PC Enclosure

Remarks: Opaque screw cover

EAN: 6418074066275

El. number:

  • Finland:
  • Denmark:
  • Sweden:

Including: Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

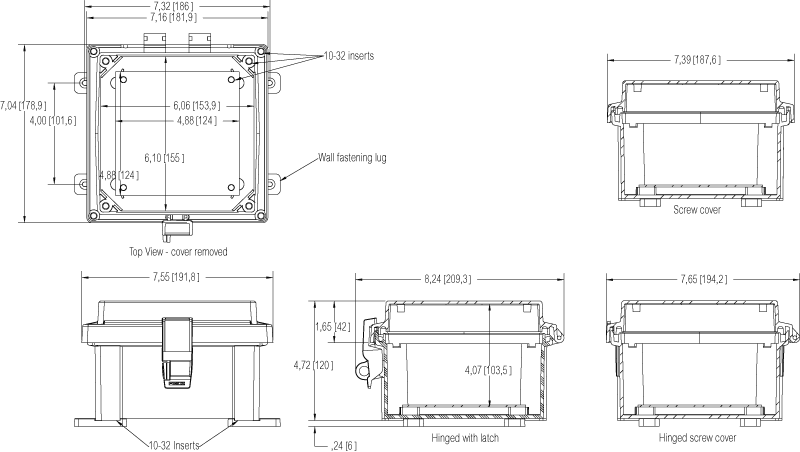

ARCA-6x6_combi
Dimensions: Height Width Depth
mm: 152 152 102
inch: 6 6 4
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 140
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
AMFL6 6" Mounting Flange Set
ABP66 Painted Steel Back Panel
ASPHK6 Swing Panel Kit w/o Panel
ASPK66 Swing Panel Kit incl. Panel
ALBP66 Aluminum Back Panel
APBP66 PVC Back Panel
ASP66 Aluminum Swing Panel

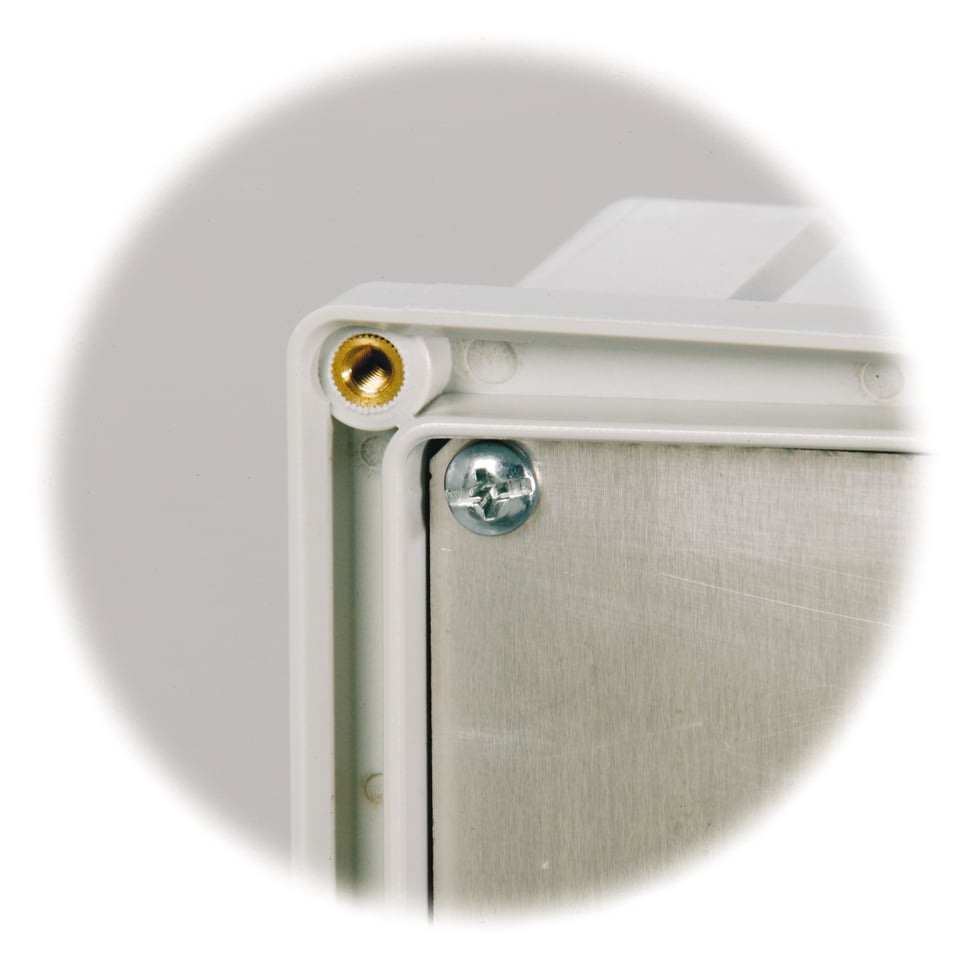

ADFP66 Dead Front Panel w/ screws
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 508
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class NEMA 4, 4X, 6, 6P, 12, 12K and 13
Certificates:
ARCA_CertificateofCompliance
