Description : Base, PC
Remarks : Openings; 2x size 1 flange + 2x size 2 flange
Package : 8
Unit : Piece
EAN : 6418074000033
SSTL number : 3420105
Electric No. Denmark : 8212006522
Electric No. Sweden : 2537804
ETIM : EC002620
Height (mm) : 280
Width (mm) : 190
Depth (mm) : 100
Height (inch) : 11.02
Width (inch) : 7.48
Depth (inch) : 3.94
Material : Polycarbonate
Base colour : RAL_7035
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- EKJ100B.dwg
- EKJ100B.dxf
- 3530140_Fibox_EKJB_280x190x100_B.step
- 3530140_Fibox_EKJB_280x190x100_B.step
EKJB 3530140 Accessories
EKJB

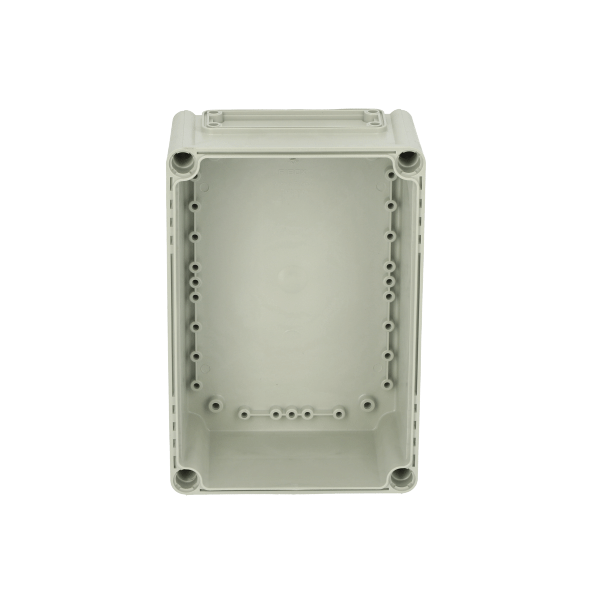

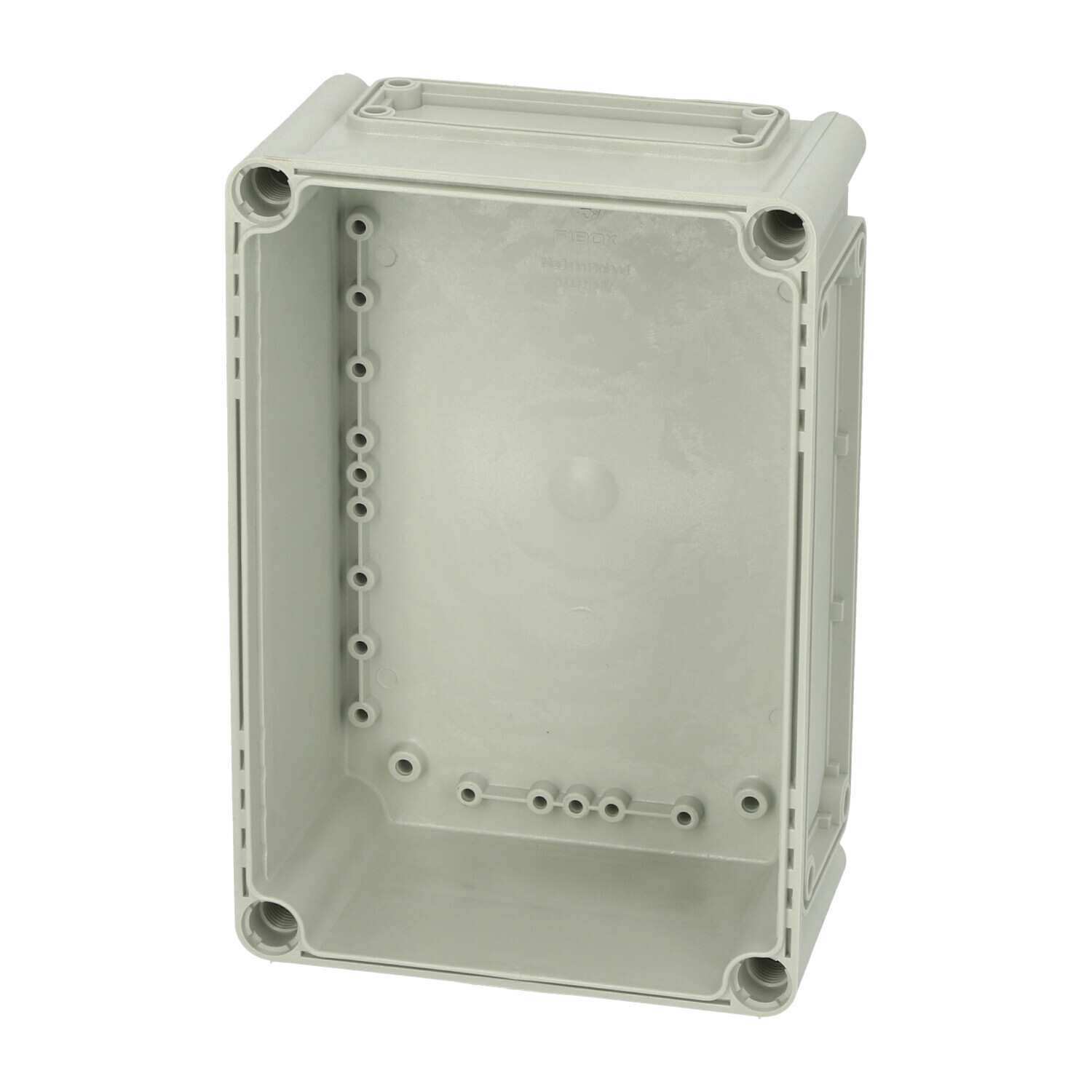

Sample image
Order symbol : EKJB
Product nr : 3530140
Description : Base, PC
Remarks : Openings; 2x size 1 flange + 2x size 2 flange
EAN : 6418074000033
El. number :
- Finland : 3420105
- Denmark : 8212006522
- Sweden : 2537804
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 280 | 190 | 100 |
| inch : | 11.02 | 7.48 | 3.94 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| EKV 12 |
DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7) |
| EKJVT |
Mounting plate, for enclosures:
(238 x 158 x 1.5) |
| EKV 22 |
DIN-35 Mounting rail, for enclosures:
(235 x 35 x 7) |
| EKJZR |
Extension frame, for enclosures:
(280 x 190 x 50) |
| MPI EKJ 2819 |
Multiperforated plastic mounting plate
(259 x 164 x 4) |
| DRS EKJ 1928 1x14M |
DIN rail set
(264 x 174 x 90) |
| DRS EKJ 2819 2x9M |
DIN rail set
(264 x 174 x 90) |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_EK | |
