ARCA JIC / AR 181610 / AR181610CHSSLT

AR181610CHSSLT 8561082

Dimensions 457 x 406 x 254

Dimensions 18 x 16 x 10

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

  • PC : IP66; IP67; IK09
Technical data
Product:

Product nr : 8561082

Description : PC Enclosure

Remarks : Hinged transparent cover w/S.S. Lockable latch

Package : 1

Unit : Piece

EAN : 6418074066862

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 457

Width (mm) : 406

Depth (mm) : 254

Height (inch) : 18

Width (inch) : 16

Depth (inch) : 10

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 140

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 508

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960 °C

NEMA Class : NEMA 4, 4X, 12 and 13

Product is connected to following catalogues :

ARCA JIC / AR 181610 / AR181610CHSSLT

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

AR181610CHSSLT

Fibox
AR14127CHSSLT

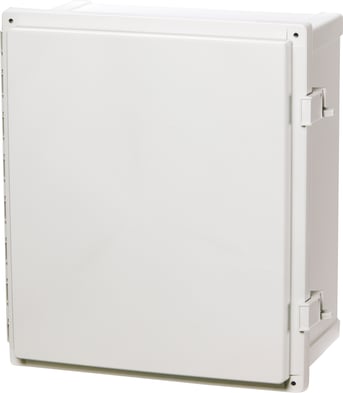

Sample image

Order symbol : AR181610CHSSLT

Product nr : 8561082

Description : PC Enclosure

Remarks : Hinged transparent cover w/S.S. Lockable latch

EAN : 6418074066862

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA-18x16_combi
Dimensions : Height Width Depth
mm : 457 406 254
inch : 18 16 10
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 140
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
APBP1816 PVC Back Panel
(424 x 378)
ABP1816 Painted Steel Back Panel
(424 x 378)
ASP1816 Aluminum Swing Panel
(410 x 465 x 0)
ALBP1816 Aluminum Back Panel
(424 x 378)
ADFP1816 Dead Front Panel w/ screws
(412 x 465 x 0)
AMFL16 16" Mounting Flange Set
ASPK1816 Swing Panel Kit incl. Panel
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
electrical_insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 508
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class NEMA 4, 4X, 12 and 13
Certificates :
ARCA_CertificateofCompliance
