AR16148CHSCT 8561074
Dimensions 406 x 356 x 203
Dimensions 16 x 14 x 8
Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
- PC : IP66; IP67; IK09
Technical data
Product nr : 8561074
Description : PC Enclosure
Remarks : Hinged transparent screw cover
Package : 1
Unit : Piece
EAN : 6418074066640
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 406
Width (mm) : 356
Depth (mm) : 203
Height (inch) : 16
Width (inch) : 14
Depth (inch) : 8
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 140
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK09
Electrical insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 508
Glow Wire Test (IEC 60695): 960 °C
NEMA Class : NEMA 4, 4X, 12 and 13
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
.jpg?width=131&height=131&name=AP_plates%20(P).jpg)

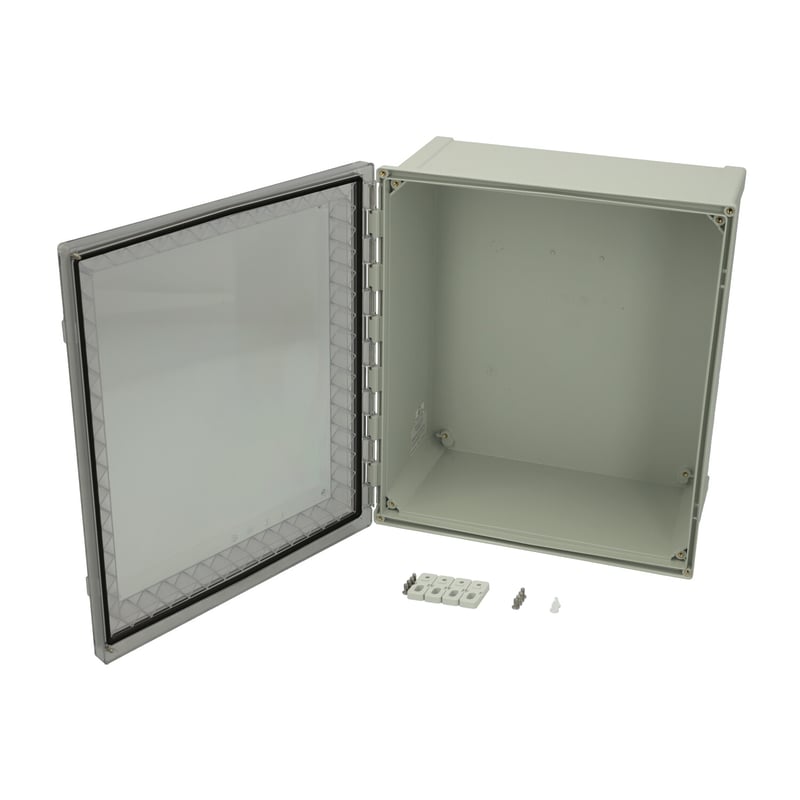

AR16148CHSCT
Sample image
Order symbol : AR16148CHSCT
Product nr : 8561074
Description : PC Enclosure
Remarks : Hinged transparent screw cover
EAN : 6418074066640
Including : Hinged screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 406 | 356 | 203 |
| inch : | 16 | 14 | 8 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Cover colour : | Transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 140 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| ALBP1614 |
Aluminum Back Panel
(375 x 327) |
| ASPHK16 | Swing Panel Kit w/o Panel |
| ADFP1614 |
Dead Front Panel w/ screws
(362 x 415 x 0) |
| APBP1614 |
PVC Back Panel
(375 x 327) |
| ABP1614 |
Painted Steel Back Panel
(375 x 327) |
| AMFL14 | 14" Mounting Flange Set |
| ASPK1614 | Swing Panel Kit incl. Panel |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK09; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 508 |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| NEMA Class | NEMA 4, 4X, 12 and 13 |
| Certificates : | |
|---|---|
| ARCA_CertificateofCompliance | |
