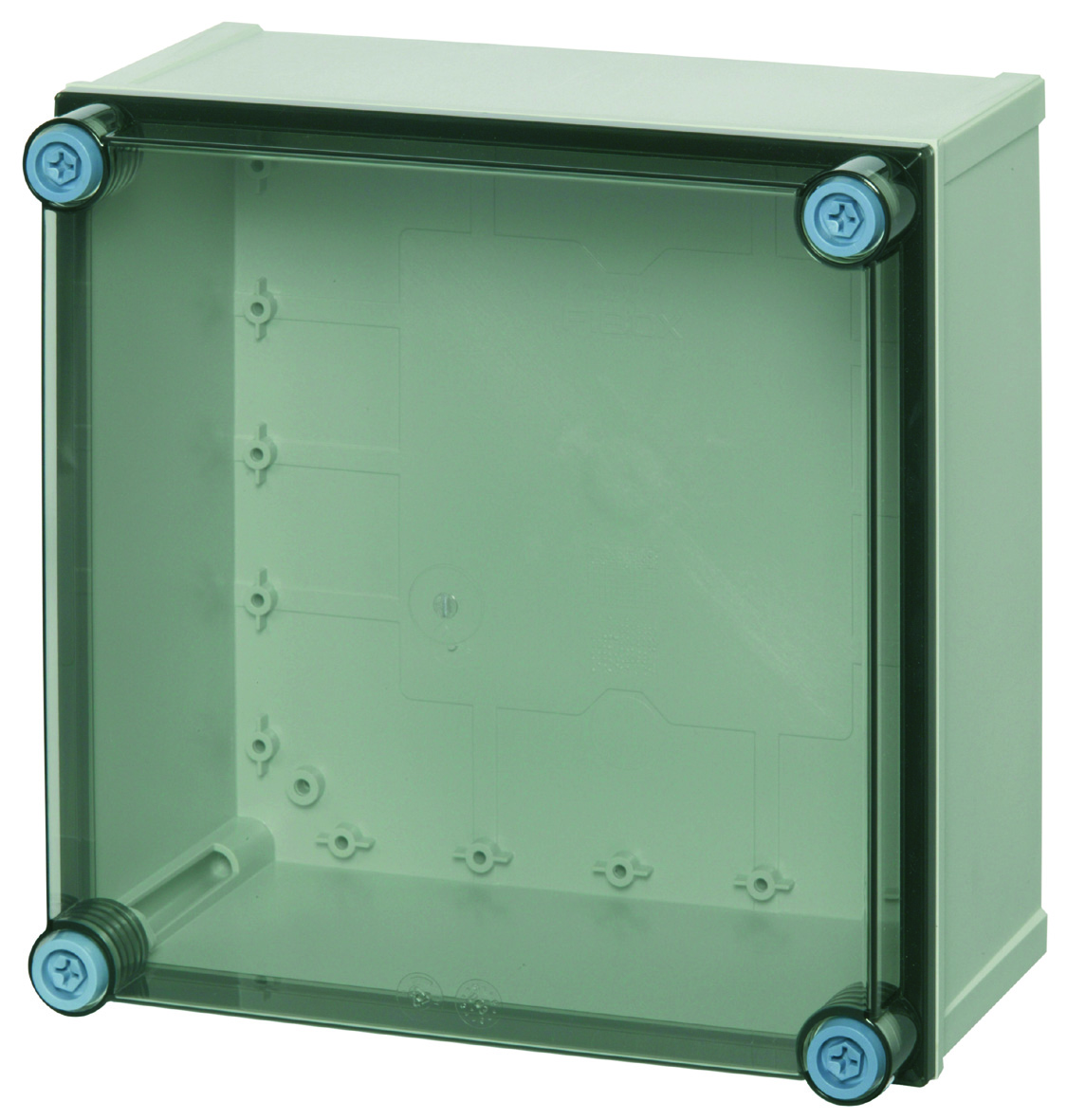

CAB_PCQ_303017_T
Next slide
CAB_PCQ_303017_T

Quick / QUICK 33 / CAB ABSQ 303017 T

CAB ABSQ 303017 T 8183048

Dimensions 300 x 300 x 170.

Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

  • PC: IP66; IP67; IK08;
Technical data
Product:

Product nr: 8183048

Description: Cabinet. ABS

Remarks: Smoked transparent cover

Package: 4

Unit: Piece

EAN: 6418074011220

SSTL number: 3424358

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 300

Width (mm): 300

Depth (mm): 170

Height (inch):

Width (inch):

Depth (inch):

Materials:

Material: ABS

Base colour: RAL 7035 -light grey

Cover colour: Clear transparent

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 80

Temperature °C (continuous): -40 … 60

Temperature °F (short term): -40 … 175

Temperature °F (continuous): -40 … 140

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating: UL 94 HB

Glow Wire Test (IEC 695-2-1): 650 °C

NEMA Class:

Product is connected to following catalogs:

Quick / QUICK 33 / CAB ABSQ 303017 T

CAB ABSQ 303017 T

Fibox
CAB_PCQ_303017_T

Sample image

Order symbol: CAB ABSQ 303017 T

Product nbr: 8183048

Description: Cabinet. ABS

Remarks: Smoked transparent cover

EAN: 6418074011220

El. number:

  • Finland: 3424358
  • Denmark:
  • Sweden:

Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

EKI33Q
Dimensions: Height Width Depth
mm: 300 300 170
inch:
Materials:
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: Clear transparent
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Accessories:
EKIV 33 Back Panel. for enclosures:
(270 x 270 x 1)
PAT 12040 Hinge kit
MB 12225 AL Swing door kit
FP A 33 Swing-out door/Front panel (aluminum). for enclosures:
(268 x 268 x 1)
EKIV 27 DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)
DRF 33 DIN rail frame kit. for enclosures:
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1) °C: 650 °C
NEMA Class
Certificates:
Certificate FI 40848
