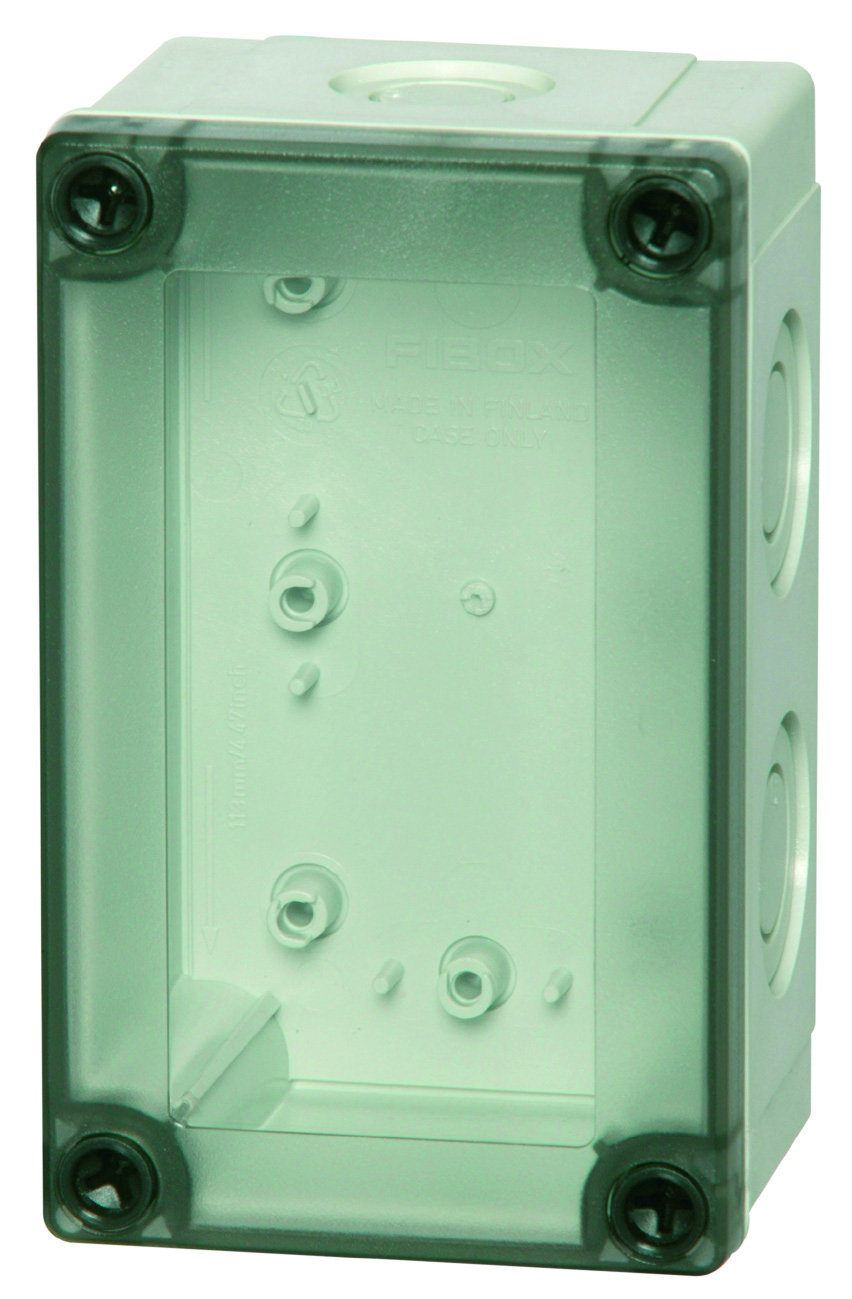

PCM_100_60_T
Next slide
PCM_100_60_T

MNX / PCM 100 / PCM 100/60 T

PCM 100/60 T 6016901

Dimensions 130 x 80 x 60.

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC: IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr: 6016901

Description: Enclosure. PC

Remarks: Smoked transparent cover

Package: 8

Unit: Piece

EAN: 6418074038173

SSTL number: 3421656

Electric No. Denmark: 8212027019

Electric No. Sweden: 2535403

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 130

Width (mm): 80

Depth (mm): 60

Height (inch): 5.12

Width (inch): 3.15

Depth (inch): 2.36

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: Clear transparent

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

MNX / PCM 100 / PCM 100/60 T

PCM 100/60 T

Fibox
PCM_100_60_T

Sample image

Order symbol: PCM 100/60 T

Product nbr: 6016901

Description: Enclosure. PC

Remarks: Smoked transparent cover

EAN: 6418074038173

El. number:

  • Finland: 3421656
  • Denmark: 8212027019
  • Sweden: 2535403

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNXPCM100
Dimensions: Height Width Depth
mm: 130 80 60
inch: 5.12 3.15 2.36
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: Clear transparent
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
MIV 10 DIN-35 Mounting rail. for enclosures:
(100 x 35 x 1)
MIV 5 DIN-35 Mounting rail. for enclosures:
(50 x 35 x 1)
HFP 130 Front panel hinge series for FP A 100-125
MIN 5 DIN-15 Mounting rail. for enclosures:
(50 x 15 x 1)
MIV 100 Back Panel (Galvanized steel). for enclosures:
(98 x 48 x 1)
MIN 10 DIN-15 Mounting rail. for enclosures:
(100 x 15 x 1)
FP 22046 Mounting foot kit (4 pcs)
FP A 100/130 Front panel (Aluminum). for enclosures:
(120 x 62 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40847
