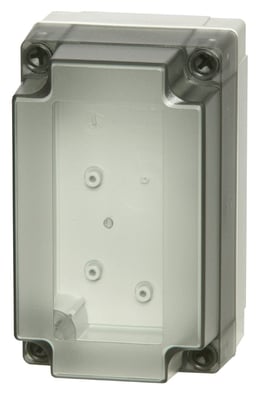

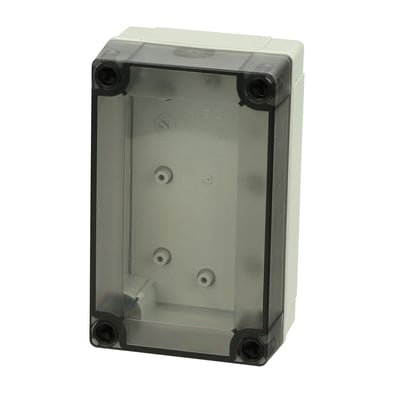

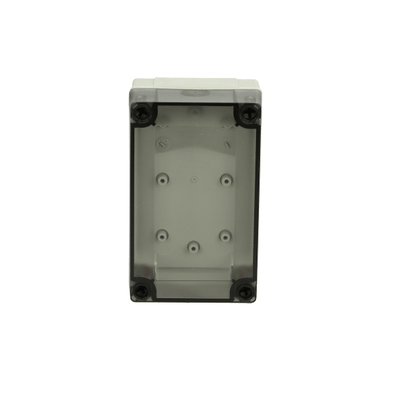

PC 100/50 LT 6012902
Dimensions 130 x 80 x 50
Dimensions 5.12 x 3.15 x 1.97

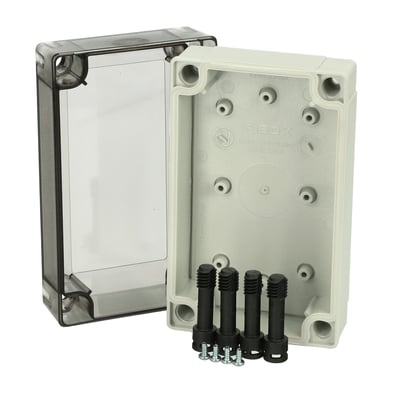

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
- PC : IP66; IP67; IK08
Technical data
Product nr : 6012902
Description : Enclosure, PC
Remarks : Low base, smoked transparent cover
Package : 8
Unit : Piece
EAN : 6418074052391
SSTL number : 3420418
Electric No. Denmark : 8212022593
Electric No. Sweden : 6012902
ETIM : EC000261
Height (mm) : 130
Width (mm) : 80
Depth (mm) : 50
Height (inch) : 5.12
Width (inch) : 3.15
Depth (inch) : 1.97
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
PC 100/50 LT

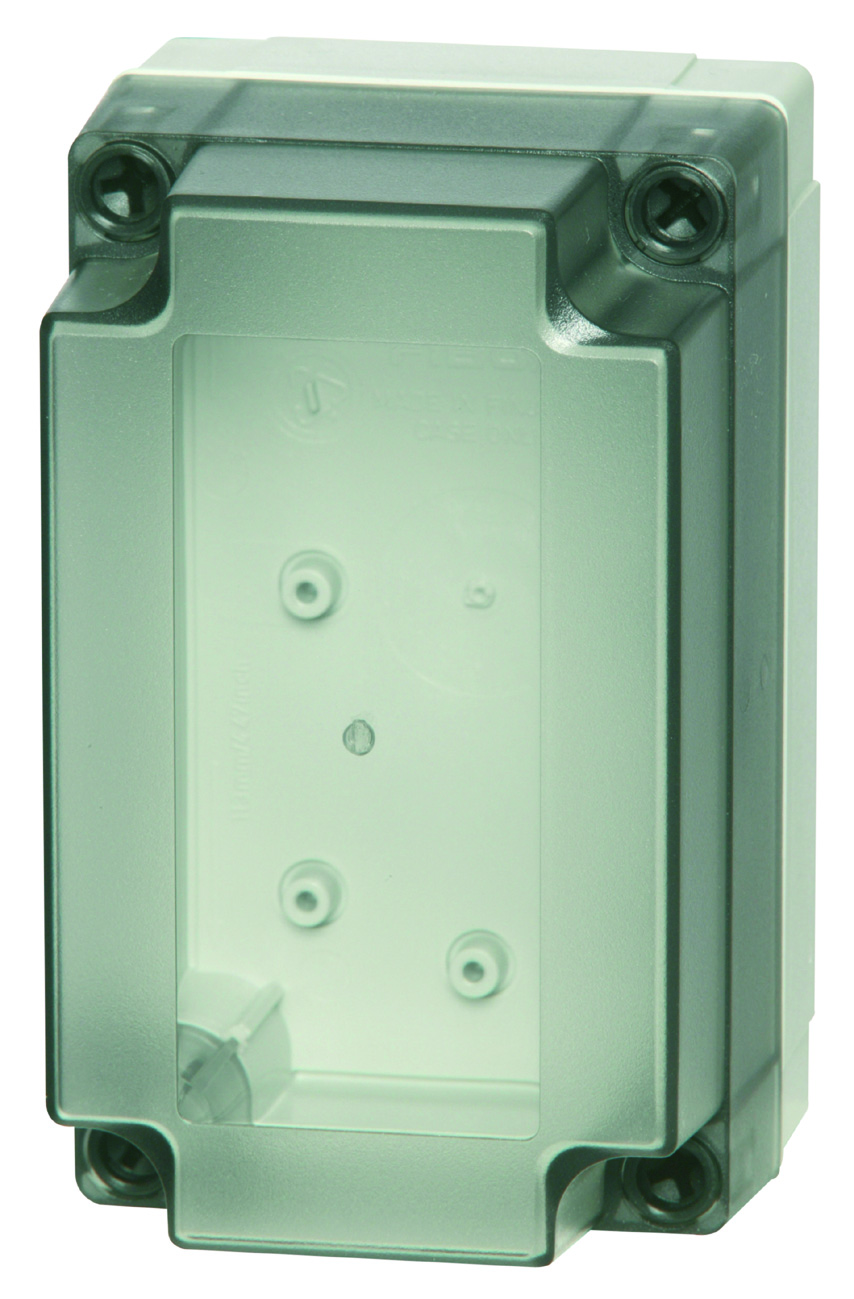

Sample image
Order symbol : PC 100/50 LT
Product nr : 6012902
Description : Enclosure, PC
Remarks : Low base, smoked transparent cover
EAN : 6418074052391
El. number :
- Finland : 3420418
- Denmark : 8212022593
- Sweden : 6012902
Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 130 | 80 | 50 |
| inch : | 5.12 | 3.15 | 1.97 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Clear transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| MIV 10 |
DIN-35 Mounting rail, for enclosures:
(100 x 35 x 1) |
| MIV 5 |
DIN-35 Mounting rail, for enclosures:
(50 x 35 x 1) |
| HFP 130 | Front plate hinge series |
| MIN 5 |
DIN-15 Mounting rail, for enclosures:
(50 x 15 x 1) |
| MIV 100 |
Mounting plate (Galvanized steel), for enclosures:
(98 x 48 x 1) |
| MIN 10 | DIN-15 Mounting rail, for enclosures: |
| FP 22046 | Wall fastening lug (4 pcs) |
| FP A 100/130 |
Front plate (Aluminium), for enclosures:
(120 x 62 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40847 | |
