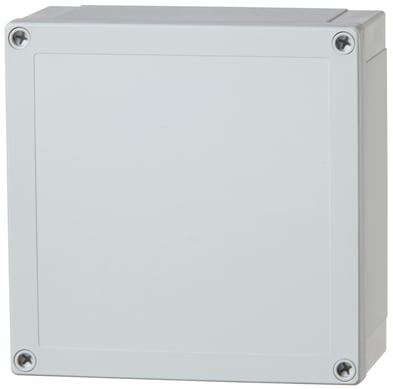

PC175_85XHG
Next slide
PC175_85XHG

MNX / MNX 175XH / PC 175/85 XHG

PC 175/85 XHG 6013339

Dimensions 180 x 180 x 85.

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr: 6013339

Description: Enclosure. PC

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074011695

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 180

Width (mm): 180

Depth (mm): 85

Height (inch) : 7.09

Width (inch) : 7.09

Depth (inch) : 3.35

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

MNX / MNX 175XH / PC 175/85 XHG

PC 175/85 XHG

Fibox
PC175_85XHG

Sample image

Order symbol: PC 175/85 XHG

Product nbr: 6013339

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074011695

El. number:

  • Finland:
  • Denmark:
  • Sweden:

Including: Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNX175XH
Dimensions: Height Width Depth
mm: 180 180 85
inch: 7.09 7.09 3.35
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
MIV 175 Back Panel (Galvanized steel). for enclosures:
(148 x 148 x 1)
FP A 175/180 Front panel (Aluminum). for enclosures:
(170 x 162 x 1)
HFP 180 Front panel hinge series
MIN 15 DIN-15 Mounting rail. for enclosures:
(150 x 15 x 1)
MIV 15 DIN-35 Mounting rail. for enclosures:
(150 x 35 x 1)
FP 22046 Mounting foot kit (4 pcs)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40847
