MNX / MNX 125L / PC 125/75 LG

PC 125/75 LG 6012309

UL Code : 6412309

UL Name : UL PC 125/75 LG

Dimensions 130 x 130 x 75.

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr: 6012309

Description: Enclosure. PC

Remarks: Opaque cover

Package: 8

Unit: Piece

EAN: 6418074022080

SSTL number: 3420325

Electric No. Denmark: 8212022072

Electric No. Sweden: 2535524

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 130

Width (mm): 130

Depth (mm): 75

Height (inch) : 5.12

Width (inch) : 5.12

Depth (inch) : 2.95

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

MNX / MNX 125L / PC 125/75 LG

PC 125/75 LG

Fibox
PC_125_35_LG

Sample image

Order symbol: PC 125/75 LG

Product nbr: 6012309

UL Code: 6412309

UL Name: UL PC 125/75 LG

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074022080

El. number:

  • Finland: 3420325
  • Denmark: 8212022072
  • Sweden: 2535524

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

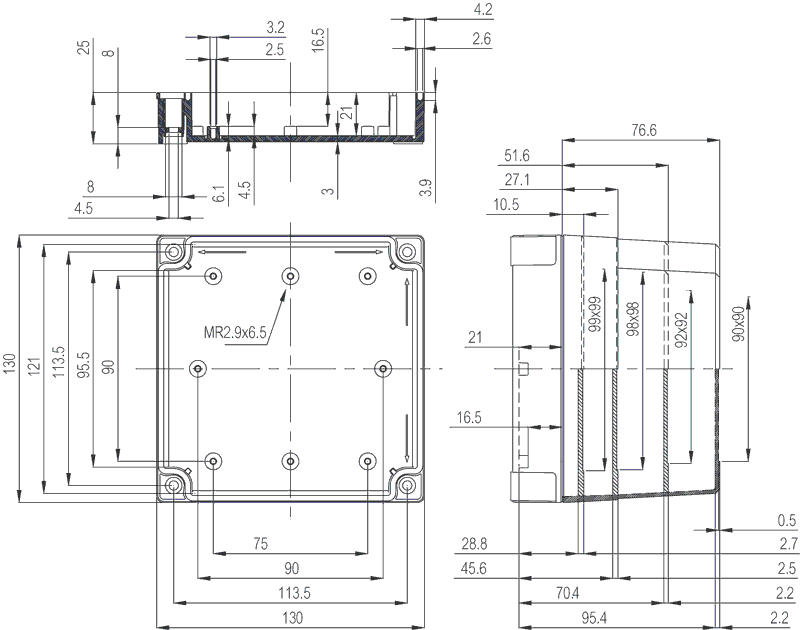

MNX125L
Dimensions: Height Width Depth
mm: 130 130 75
inch: 5.12 5.12 2.95
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
MIV 10 DIN-35 Mounting rail. for enclosures:
(100 x 35 x 1)
HFP 130 Front panel hinge series for FP A 100-125
FP A 125/130 Front panel (Aluminum). for enclosures:
(120 x 112 x 1)
MIN 10 DIN-15 Mounting rail. for enclosures:
(100 x 15 x 1)
FP 22046 Mounting foot kit (4 pcs)
MIV 125 Back Panel (Galvanized steel). for enclosures:
(98 x 98 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40847
