PC 100/75 HT 6011902
UL Code : 6411902
UL Name : UL PC 100/75 HT
Dimensions 130 x 80 x 75.

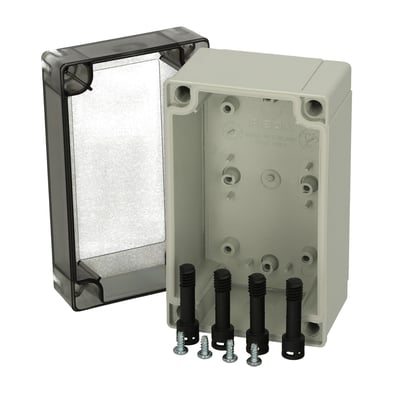

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
- PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product nr: 6011902
Description: Enclosure. PC
Remarks: Smoked transparent cover
Package: 8
Unit: Piece
EAN: 6418074024428
SSTL number: 3422253
Electric No. Denmark: 8212022580
Electric No. Sweden: 2535613
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 130
Width (mm): 80
Depth (mm): 75
Height (inch) :
Width (inch) :
Depth (inch) :
Material: Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695) : 960 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
Accessories
PC 100/75 HT

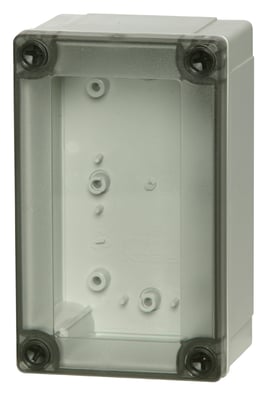

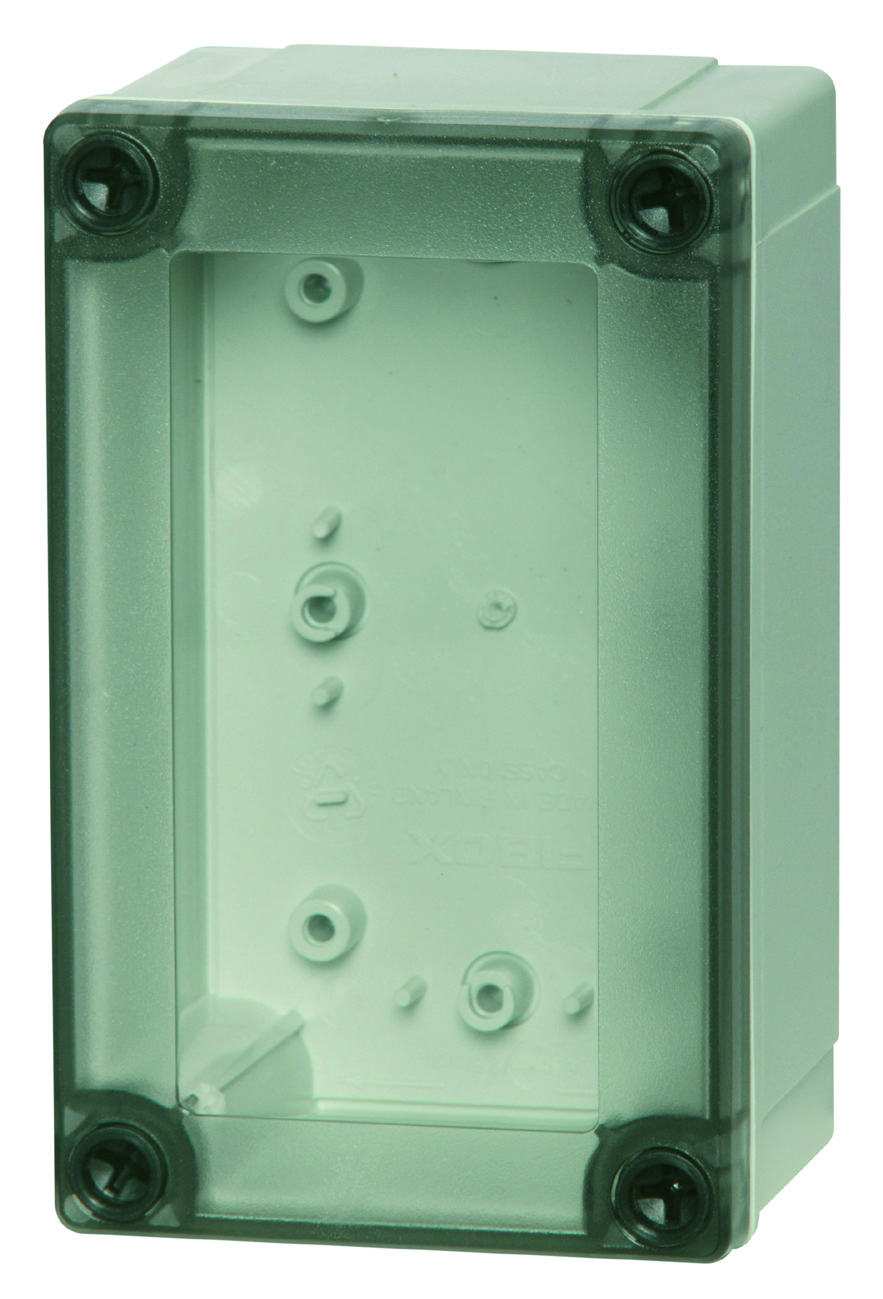

Sample image
Order symbol: PC 100/75 HT
Product nbr: 6011902
UL Code: 6411902
UL Name: UL PC 100/75 HT
Description: Enclosure. PC
Remarks: Smoked transparent cover
EAN: 6418074024428
El. number:
- Finland: 3422253
- Denmark: 8212022580
- Sweden: 2535613
Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 130 | 80 | 75 |
| inch: |
| Materials: | |
|---|---|
| Material: | Polycarbonate |
| Base colour: | RAL 7035 -light grey |
| Cover colour: | Clear transparent |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 120 |
| Temperature °C (continuous): | -40 … 80 |
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Accessories: | |
|---|---|
| MIV 10 | DIN-35 Mounting rail. for enclosures: (100 x 35 x 1) |
| MIV 5 | DIN-35 Mounting rail. for enclosures: (50 x 35 x 1) |
| HFP 130 | Front panel hinge series for FP A 100-125 |
| MIN 5 | DIN-15 Mounting rail. for enclosures: (50 x 15 x 1) |
| MIV 100 | Back Panel (Galvanized steel). for enclosures: (98 x 48 x 1) |
| MIN 10 | DIN-15 Mounting rail. for enclosures: (100 x 15 x 1) |
| FP 22046 | Mounting foot kit (4 pcs) |
| FP A 100/130 | Front panel (Aluminum). for enclosures: (120 x 62 x 1) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | UL 508 |
| Flammability Rating: | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C: | 960 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| Certificate FI 40847 | |
