    Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

Previous slide
AR884SC product image 1
Next slide
AR884SC thumbnail image 1

ARCA JIC / AR 884 / AR884SC

AR884SC 8561085

Including : Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

  • PC : IP66; IP67; IK09
Technical data
Product:

Product nr : 8561085

Description : PC Enclosure

Remarks : Opaque screw cover

Package : 1

Unit : Piece

EAN : 6418074066312

ETIM : EC000261

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK09

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 508

Glow Wire Test (IEC 60695): 960C

UL Type : NEMA__4_4X_6_6P_12_13

Product is connected to following catalogues :

ARCA JIC / AR 884 / AR884SC

AR884SC

Fibox

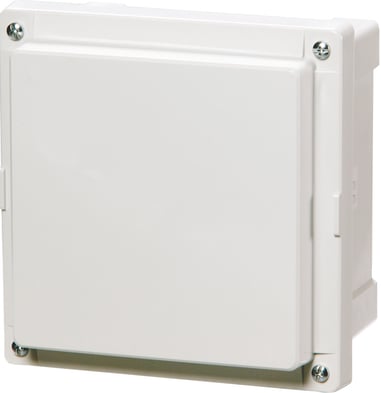

AR664SC

Sample image

Order symbol : AR884SC

Product nr : 8561085

Description : PC Enclosure

Remarks : Opaque screw cover

EAN : 6418074066312

Including : Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA-8x8_combi
Dimensions : Height Width Depth
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
ALBP88 Aluminum Back Panel
ABP88 Painted Steel Back Panel
ASP88 Aluminum Swing Panel
ASPHK8 Swing Panel Kit w/o Panel
APBP88 PVC Back Panel
ADFP88 Dead Front Panel w/ screws
ASPK88 Swing Panel Kit incl. Panel
AMFL8 8" Mounting Flange Set
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 508
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type NEMA__4_4X_6_6P_12_13
Certificates :
ARCA_CertificateofCompliance
