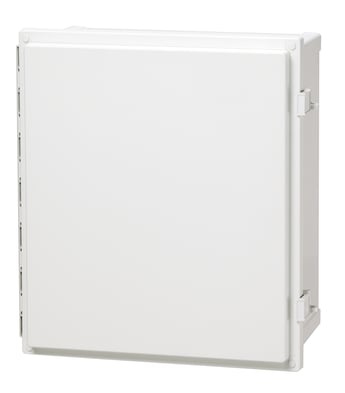

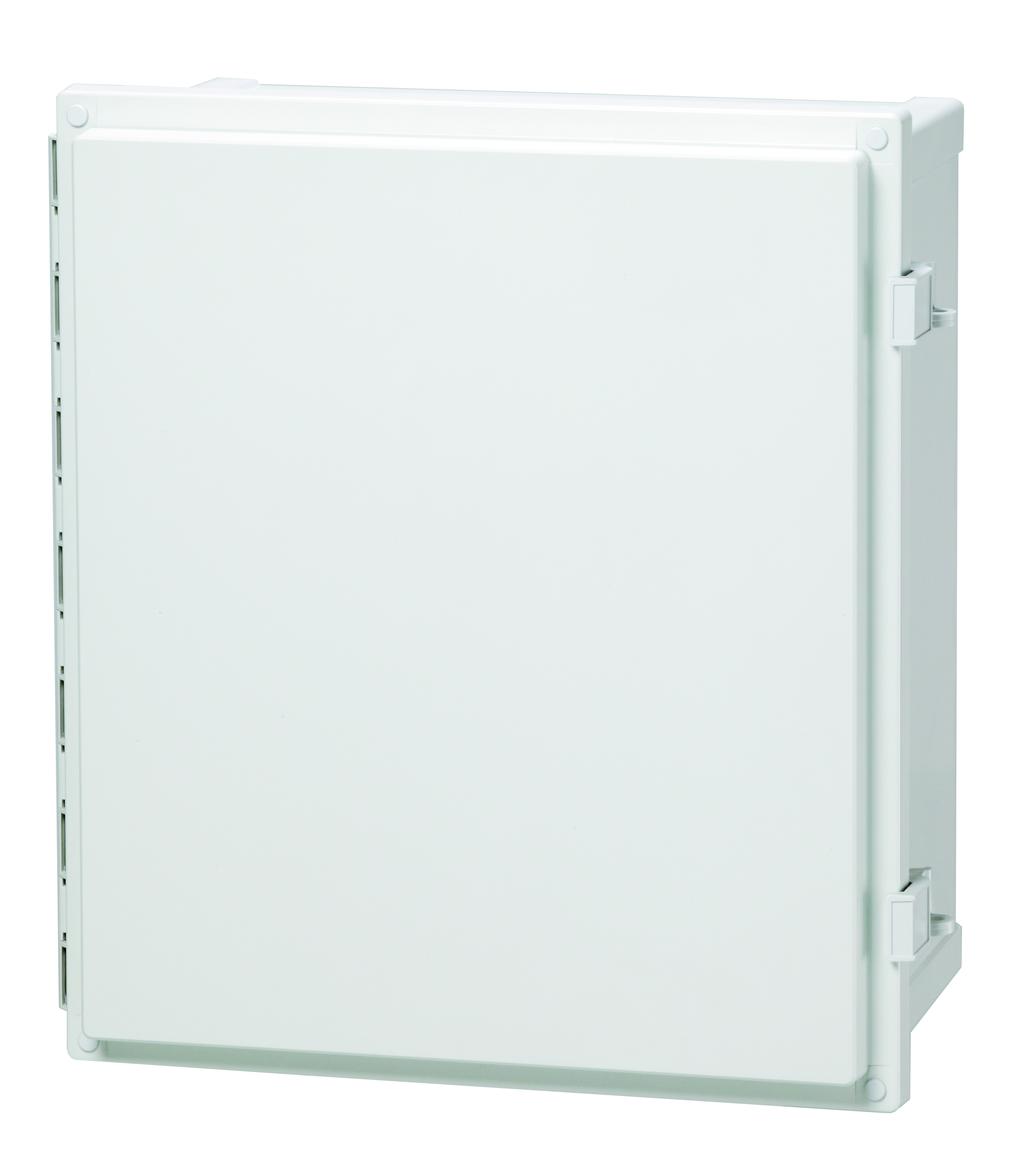

AR16148CHL
Next slide
AR16148CHL

ARCA JIC / AR 16148 / AR16148CHL

AR16148CHL 8561063

Dimensions 406 x 356 x 203.

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

  • PC : IP66; IP67; IK09;
Technical data
Product:

Product nr: 8561063

Description: PC Enclosure

Remarks: Hinged opaque cover w/Plastic quick release latch

Package: 1

Unit: Piece

EAN: 6418074067173

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 406

Width (mm): 356

Depth (mm): 203

Height (inch) : 16

Width (inch) : 14

Depth (inch) : 8

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 140

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK09;

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 508

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class : NEMA 4, 4X, 12 and 13

Product is connected to following catalogs :

ARCA JIC / AR 16148 / AR16148CHL

CAD Files
Certificates and Declarations
Contact

AR16148CHL

Fibox
AR16148CHL

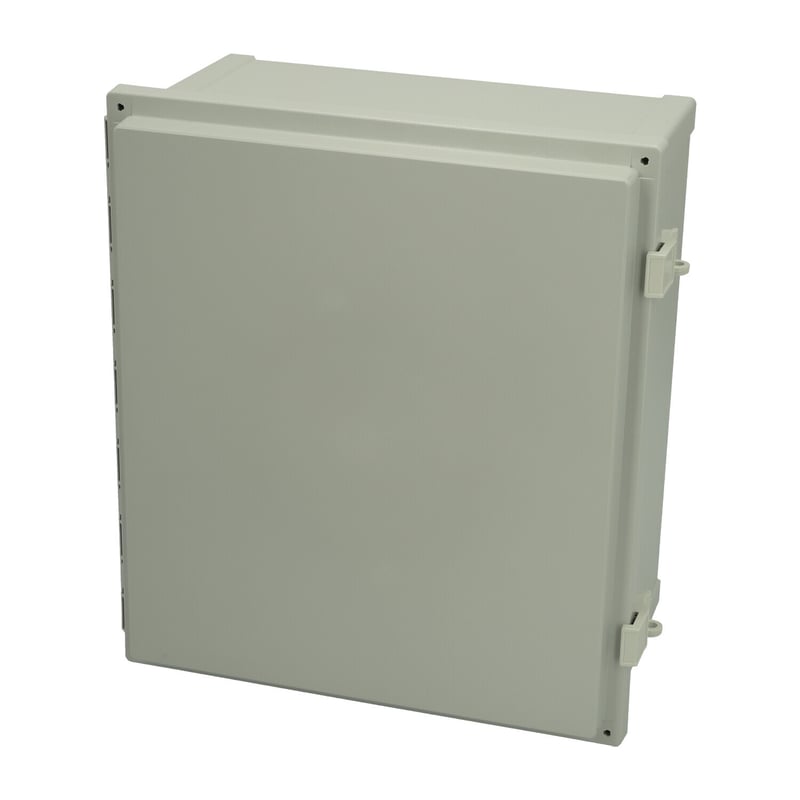

Sample image

Order symbol: AR16148CHL

Product nbr: 8561063

Description: PC Enclosure

Remarks: Hinged opaque cover w/Plastic quick release latch

EAN: 6418074067173

El. number:

  • Finland:
  • Denmark:
  • Sweden:

Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

ARCA-16x14-combi
Dimensions: Height Width Depth
mm: 406 356 203
inch: 16 14 8
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 140
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
ALBP1614 Aluminum Back Panel
(375 x 327)
ASPHK16 Swing Panel Kit w/o Panel
ADFP1614 Dead Front Panel w/ screws
(362 x 415 x 0)
APBP1614 PVC Back Panel
(375 x 327)
ABP1614 Painted Steel Back Panel
(375 x 327)
AMFL14 14" Mounting Flange Set
ASPK1614 Swing Panel Kit incl. Panel
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 508
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class NEMA 4, 4X, 12 and 13
Certificates:
ARCA_CertificateofCompliance
