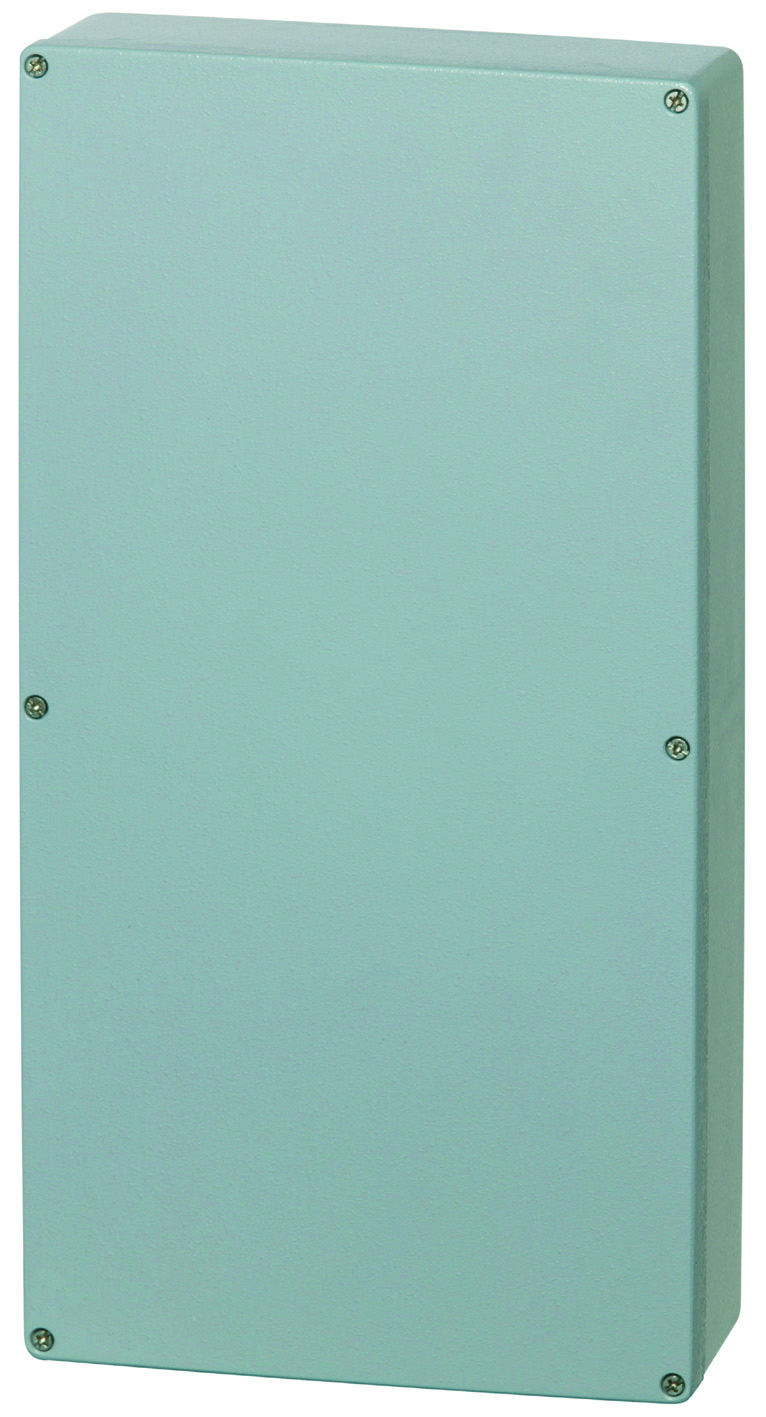

AL_316011
Next slide
AL_316011

ALUN / ALU 3160 / ALN 316011

ALN 316011 7811470

UL Code: 7811472

UL Name: ALN UL 316011

Dimensions 310 x 600 x 110.

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC: IP66; IP67; IP68; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 7811470

Description: Aluminum enclosure

Remarks: Aluminium

Package: 1

Unit: Piece

EAN: 6418074010834

SSTL number: 3420007

Electric No. Denmark:

Electric No. Sweden: 2500930

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 310

Width (mm): 600

Depth (mm): 110

Height (inch): 12.2

Width (inch): 23.62

Depth (inch): 4.33

Materials:

Material: Aluminum

Base colour: RAL 7036

Cover colour: RAL 7036

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -50 … 80

Temperature °F (short term): -60 … 285

Temperature °F (continuous): -60 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67; IP68;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Not insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating:

Glow Wire Test (IEC 695-2-1): C

NEMA Class:

Product is connected to following catalogs:

ALUN / ALU 3160 / ALN 316011

CAD files
Certificates and Declarations
Catalogues
Contact

ALN 316011

Fibox
AL_316011

Sample image

Order symbol: ALN 316011

Product nbr: 7811470

UL Code: 7811472

UL Name: ALN UL 316011

Description: Aluminum enclosure

Remarks: Aluminium

EAN: 6418074010834

El. number:

  • Finland: 3420007
  • Denmark:
  • Sweden: 2500930

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

ALN316011-18combi
Dimensions: Height Width Depth
mm: 310 600 110
inch: 12.2 23.62 4.33
Materials:
Material: Aluminum
Base colour: RAL 7036
Cover colour: RAL 7036
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -50 … 80
Temperature °F (short term): -60 … 285
Temperature °F (continuous): -60 … 175
Accessories:
AM 3160 Back Panel. for enclosures:
(293 x 585 x 1)
ARH 60 DIN-35 Mounting rail. for enclosures:
(580 x 35 x 1)
MRS 28541 Mounting foot kit (2 pcs). for enclosures:
(15 x 50 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67; IP68;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
SGSFIMKO_ALU
