Description : Cover, PC
Remarks : Grey
Package : 8
Unit : Piece
EAN : 6418074000293
SSTL number : 3420163
Electric No. Denmark : 8212007110
Electric No. Sweden : 2537910
ETIM : EC002620
Height (mm) : 380
Width (mm) : 190
Depth (mm) : 80
Height (inch) : 14.96
Width (inch) : 7.48
Depth (inch) : 3.15
Material : Polycarbonate
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- EKM80C.dwg
- EKM80C.dxf
- 3730557_FIBOX_EKM80C.step
- 3730557_FIBOX_EKM80C_G.step

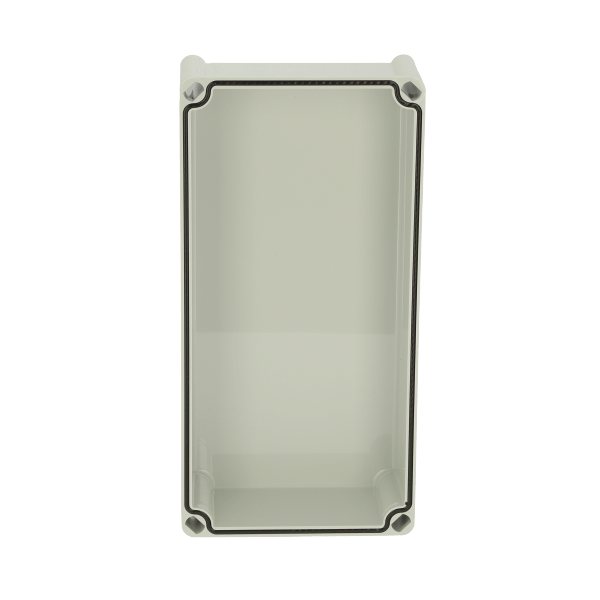

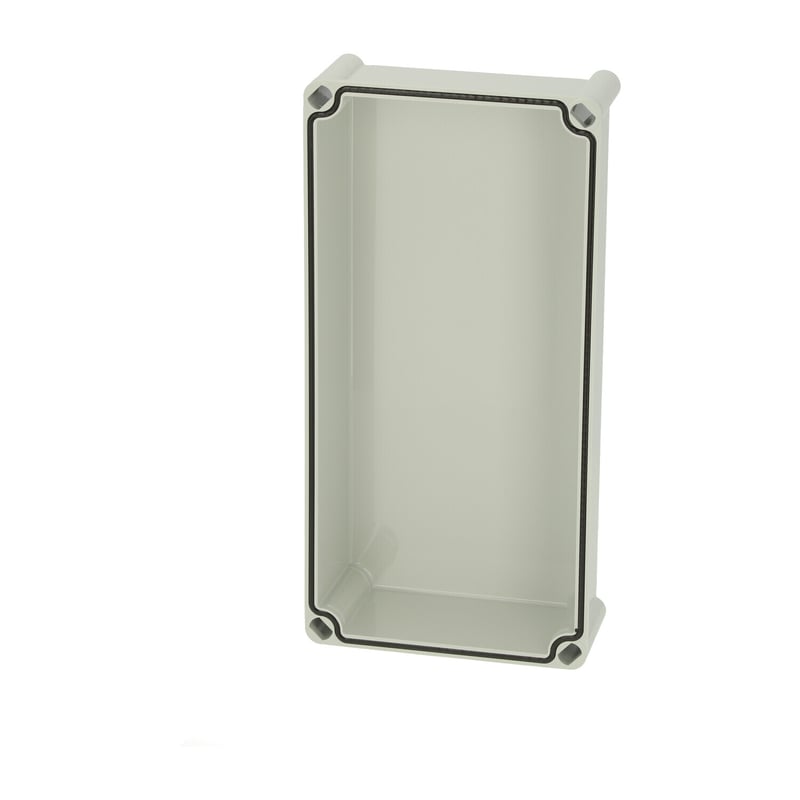

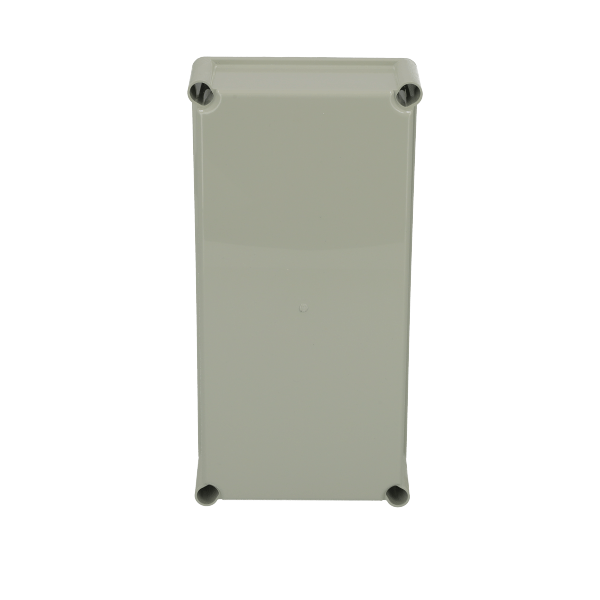

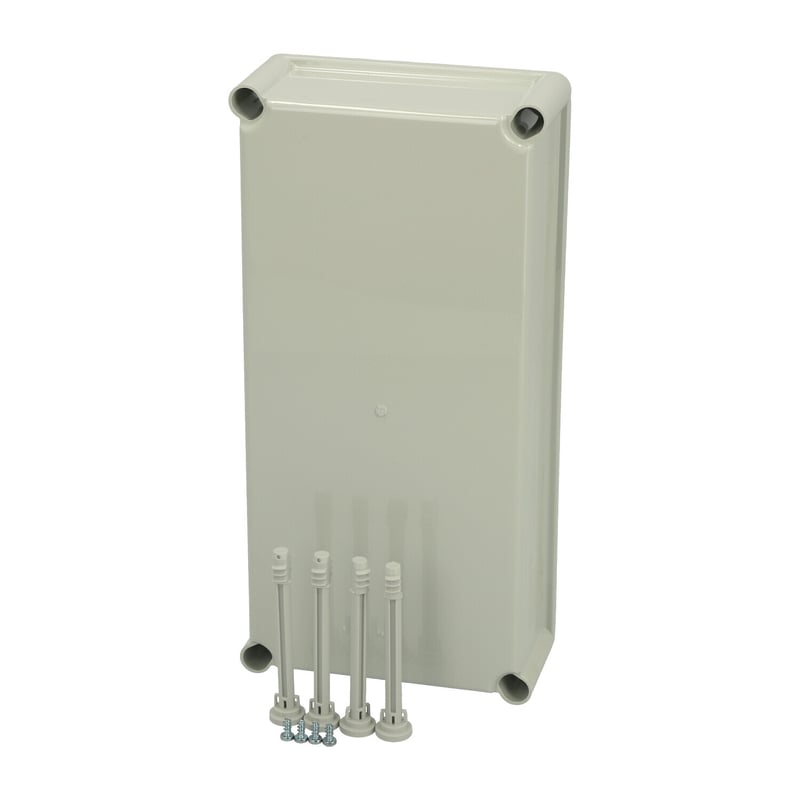

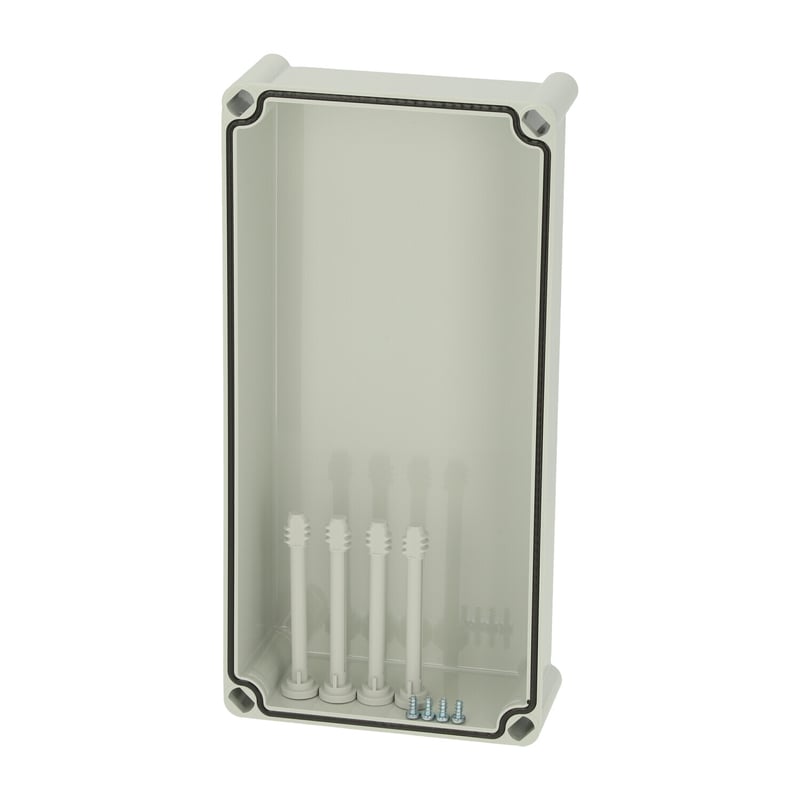

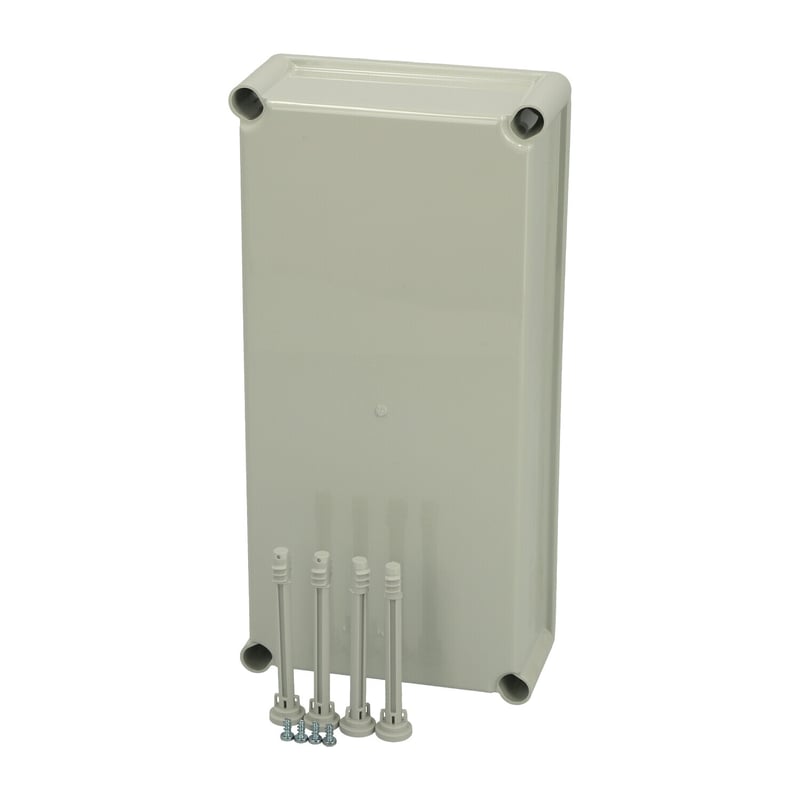

EKM 80-G
Sample image
Order symbol : EKM 80-G
Product nr : 3730557
Description : Cover, PC
Remarks : Grey
EAN : 6418074000293
El. number :
- Finland : 3420163
- Denmark : 8212007110
- Sweden : 2537910
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 380 | 190 | 80 |
| inch : | 14.96 | 7.48 | 3.15 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| EKMZR |
Extension frame, for enclosures:
(380 x 190 x 50) |
| EKV 12 |
DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7) |
| EKV 32 |
DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7) |
| EKMVT |
Mounting plate, for enclosures:
(338 x 158 x 1.5) |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFIMKO_EK | |
