Euronord P / P 0823 / P 082306 enclosure
P 082306 enclosure 7094200
Mått 75 x 230 x 55
- IP66; IK10
Teknisk data
Produktnummer : 7094200
EAN-nummer : 6418074305213
ETIM : EC000261
Höjd (mm.) : 75
Bredd (mm.) : 230
Djup (mm.) : 55
Material : Polyester
Skåpfärg : RAL_7036
Dörrfärg : RAL 7036
Förpackningsmaterial : Polyuretan
Temperatur °C (kontinuerlig) : -20 ... 95
Standards EN/IEC 60670
Täthetsklass (EN 60529): IP66
Slagtålighet (EN 62262): IK10
Brandklassning : UL 94 V0
Euronord P / P 0823 / P 082306 enclosure
CAD-filer
Observera att vi behöver din information för att du ska kunna se CAD-filerna.
FAQ (Vanliga Frågor)
Kataloger
Kontakt
P 082306 enclosure

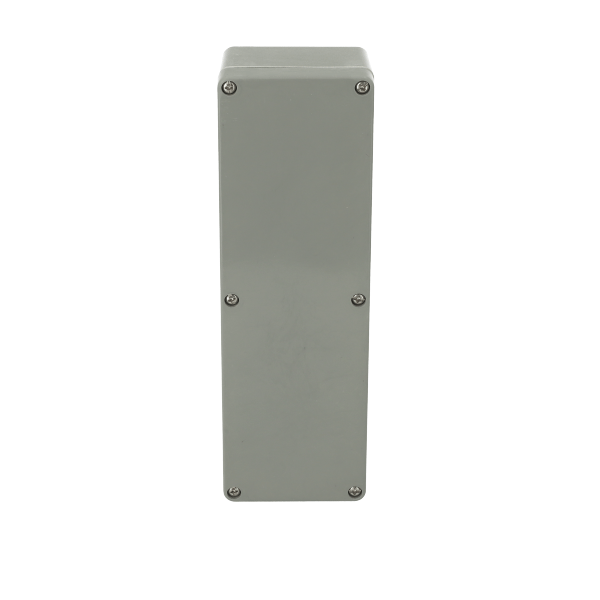

Sample image
Order symbol : P 082306 enclosure
Produktnummer : 7094200
EAN-nummer : 6418074305213
| Mått : | Längd | Bredd | Höjd |
|---|---|---|---|
| mm : | 75 | 230 | 55 |
| Material : | |
|---|---|
| Material : | Polyester |
| Skåpfärg : | RAL_7036 |
| Dörrfärg : | RAL 7036 |
| Förpackningsmaterial : | Polyuretan |
| Temperaturer : | |
|---|---|
| Temperature °C (continuous) : | -20 ... 95 |
| Klassificeringar : | |
|---|---|
| Ingress protection (EN 60529): | IP66; |
| Slagtålighet (EN 62262): | IK10; |
| electrical_insulation : | Inte isolerad |
| UV-beständig : | - |
| Brandklassning : | UL 94 V0 |
