Description : PW Inspection Protection window,
Remarks : 291x244x88 mm, DB3 lock, Transparent cover
Package : 4
Unit : Piece
EAN : 6418074320469
SSTL number : 3424740
Electric No. Sweden : 2507623
ETIM : EC002527
Ingress Protection : IP66 | IK09
Height (mm) : 291
Width (mm) : 244
Depth (mm) : 88
Height (inch) : 11.46
Width (inch) : 9.61
Depth (inch) : 3.46
Material : Polycarbonate
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP66
Impact Resistance (EN 62262): IK09
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
UL Type : 4, 4X, 12 and 13
CAD Drawings
- 4901884_FIBOX_PW_292409_T DIM.dwg
- 4901884_FIBOX_PW_292409_T.step
PW 292409 T

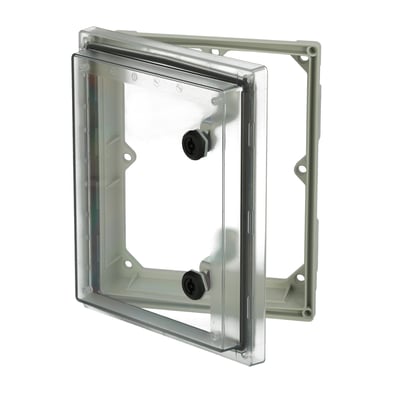

Sample image
Order symbol : PW 292409 T
Product nr : 4901884
Description : PW Inspection Protection window,
Remarks : 291x244x88 mm, DB3 lock, Transparent cover
EAN : 6418074320469
El. number :
- Finland : 3424740
- Sweden : 2507623
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 291 | 244 | 88 |
| inch : | 11.46 | 9.61 | 3.46 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; |
| Impact Resistance (EN 62262): | IK09; |
| electrical_insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| UL Type | 4, 4X, 12 and 13 |
