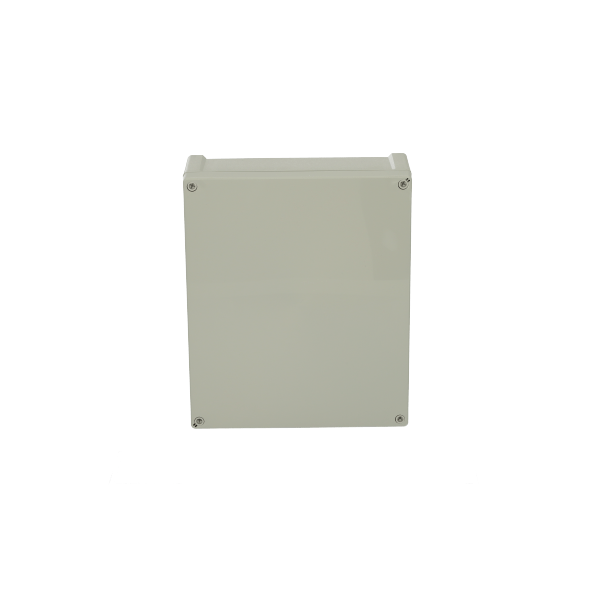

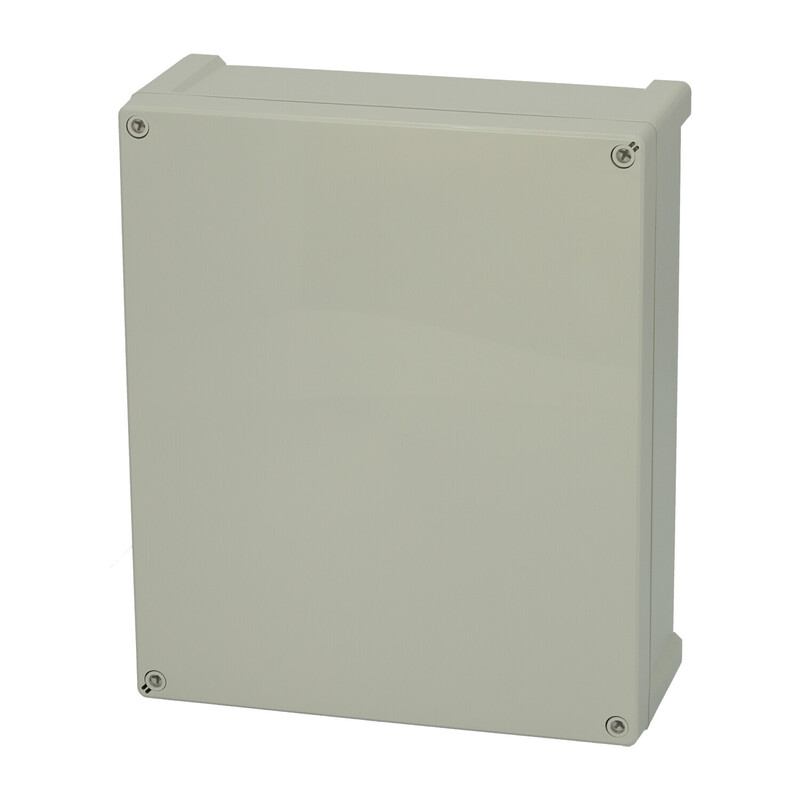

TA342912 5814004
Dimensions 344 x 289 x 117
Dimensions 13.54 x 11.38 x 4.61

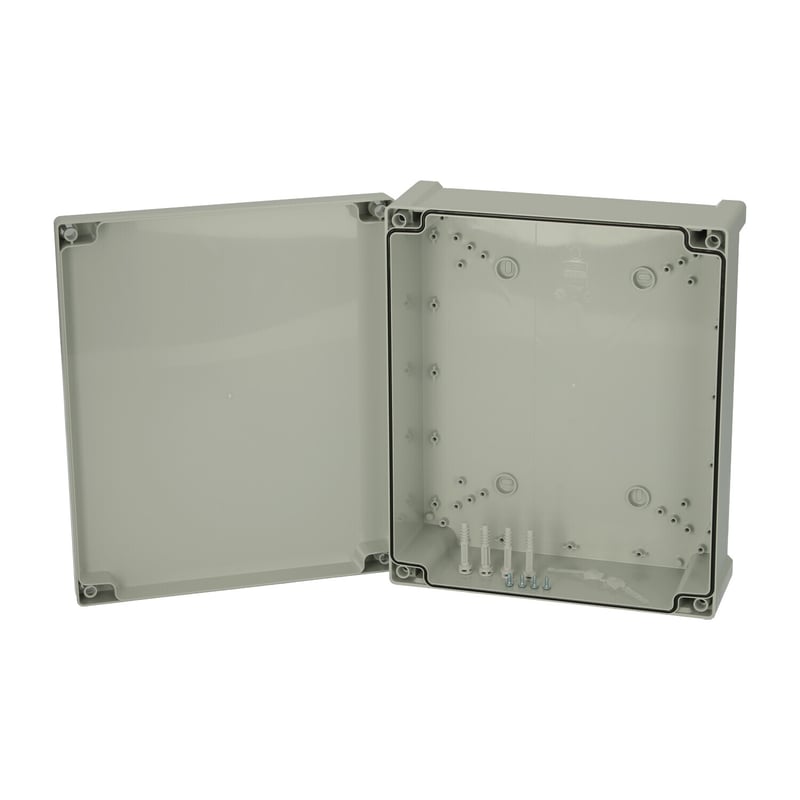

Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
- IP65; IK07
Technical data
Product nr : 5814004
Description : Enclosure, ABS
Remarks : Grey cover
Package : 2
Unit : Piece
EAN : 6418074060761
SSTL number : 3435690
Electric No. Denmark : 8212035085
Electric No. Sweden : 2508706
ETIM : EC000261
Height (mm) : 344
Width (mm) : 289
Depth (mm) : 117
Height (inch) : 13.54
Width (inch) : 11.38
Depth (inch) : 4.61
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 60
Temperature °F : -40 … 140
Standards EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
TA342912
Sample image
Order symbol : TA342912
Product nr : 5814004
Description : Enclosure, ABS
Remarks : Grey cover
EAN : 6418074060761
El. number :
- Finland : 3435690
- Denmark : 8212035085
- Sweden : 2508706

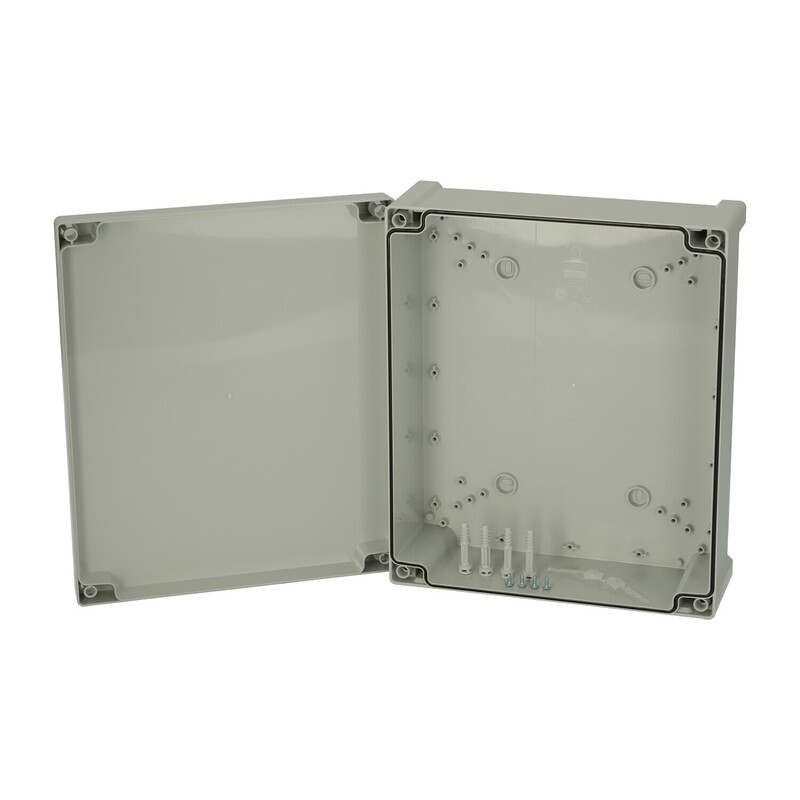

Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 344 | 289 | 117 |
| inch : | 13.54 | 11.38 | 4.61 |
| Materials : | |
|---|---|
| Material : | ABS |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 80 |
| Temperature °C (continuous) : | -40 … 60 |
| Temperature °F (short term) : | -40 … 175 |
| Temperature °F (continuous) : | -40 … 140 |
| Accessories : | |
|---|---|
| MP 3429 |
Mounting plate, for enclosures:
(315 x 265 x 1.5) |
| ARH 2328 |
DIN-35 Mounting rail, for enclosures:
(260 x 35 x 7) |
| FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
| DR 316 |
DIN-35 Mounting rail, for enclosures:
(316 x 35 x 7) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | - |
| Flammability Rating : | UL 94 HB |
| Glow Wire Test (IEC 695-2-1) °C : | 650C |
| Certificates : | |
|---|---|
| Certificate FI 40343 | |
