Description : Blind flange set, size 1
EAN : 6418074300256
SSTL number : 3413070
Electric No. Denmark : 8212009309
Electric No. Sweden : 2507769
ETIM : EC000211
Ingress Protection : IP66 | IK08
Height (mm) : 140
Width (mm) : 49
Depth (mm) : 10
Height (inch) : 5.51
Width (inch) : 1.93
Depth (inch) : 0.39
Material : Polycarbonate
Gasket material : EPDM
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP66
Impact Resistance (EN 62262): IK08
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
MB 10215-PM

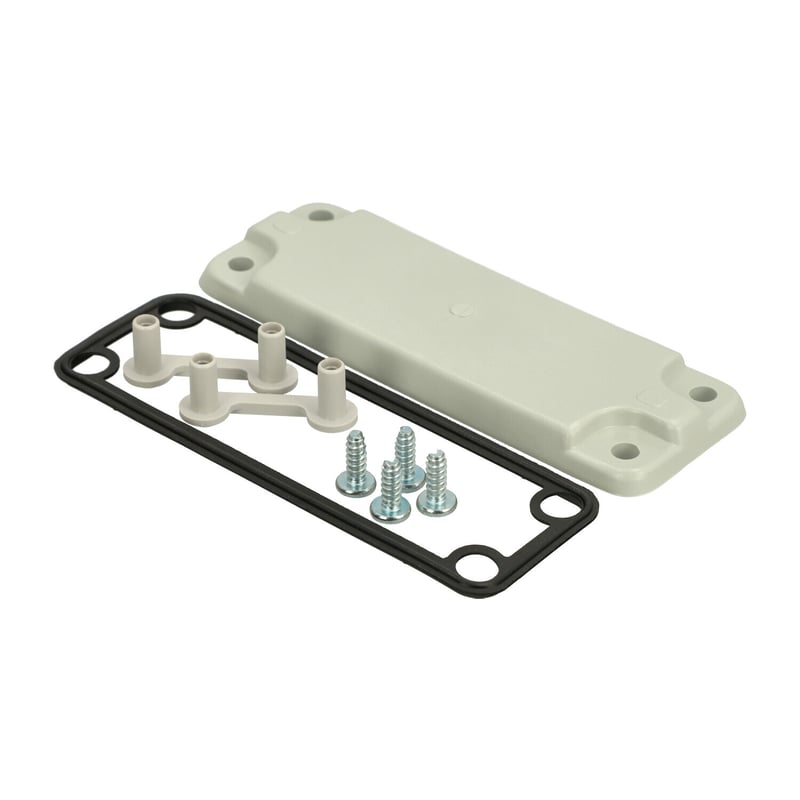

Sample image
Order symbol : MB 10215-PM
Product nr : 2550067
Description : Blind flange set, size 1
EAN : 6418074300256
El. number :
- Finland : 3413070
- Denmark : 8212009309
- Sweden : 2507769
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 140 | 49 | 10 |
| inch : | 5.51 | 1.93 | 0.39 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Gasket material : | EPDM |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
