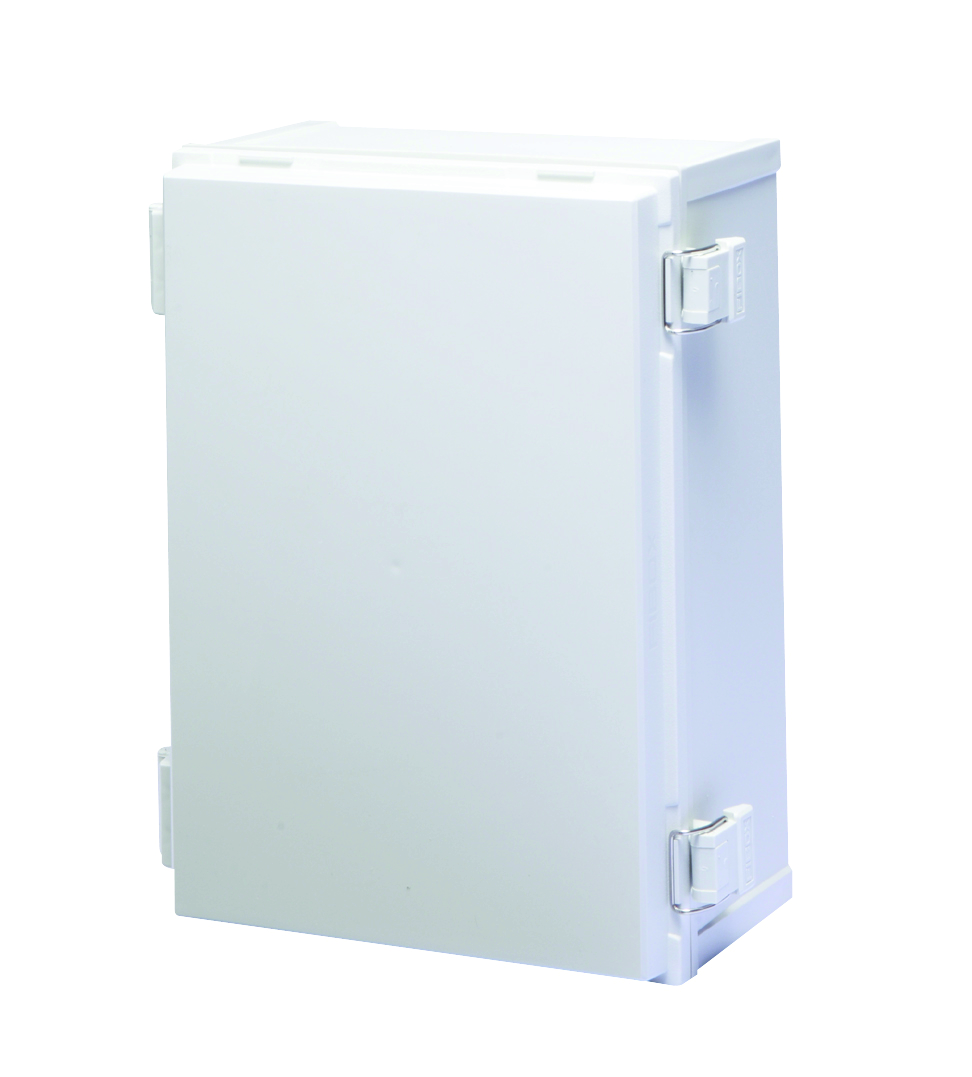

CAB_352515_G
Next slide
CAB_352515_G

CAB / CAB 2535 / CAB PC 352515 G

CAB PC 352515 G 8113335

Dimensions 350 x 250 x 150.

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

  • PC: IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 8113335

Description: Opaque door

Remarks: Latches on the long side

Package: 1

Unit: Piece

EAN: 6418074049032

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 350

Width (mm): 250

Depth (mm): 150

Height (inch): 13.78

Width (inch): 9.84

Depth (inch): 5.91

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

CAB / CAB 2535 / CAB PC 352515 G

CAD files
Catalogues
Contact

CAB PC 352515 G

Fibox
CAB_352515_G

Sample image

Order symbol: CAB PC 352515 G

Product nbr: 8113335

Description: Opaque door

Remarks: Latches on the long side

EAN: 6418074049032

El. number:

  • Finland:
  • Denmark:
  • Sweden:

Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.

CAB_250x350x150
Dimensions: Height Width Depth
mm: 350 250 150
inch: 13.78 9.84 5.91
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
EKIV 3525 Back Panel. for enclosures:
(320 x 220 x 1)
EKIV 3525 PL Back Panel. plastic. for enclosures:
(320 x 220 x 2)
Rating:
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40854
