Tempo / TEMPO 1912 / TPC 191209T

TPC 191209T 5824005

Mitat 187 x 122 x 90

  • PC : IP65; IK07; IK08
Tekniset tiedot
Tuote:

Tuote nr : 5824005

Tuotekuvaus : Kotelo PC

Lisätieto : Läpinäkyvä kirkas kansi

Pakkausyksikkö : 4

Yksikkö : Kpl

EAN koodi : 6418074048646

SSTL numero : 3424379

ETIM : EC000261

Mitat :

Pituus (mm) : 187

Leveys (mm) : 122

Korkeus (mm) : 90

Materiaalit :

Materiaali : Polykarbonaatti

Lämpötilat :
Luokat :

Tiiviysluokka (EN 60529): IP65

Iskunkestävyys (EN 62262): IK07IK08

Sähköeristys : Suojaeristetty

Halogenivapaa (DIN/VDE 0472, osa 815) : Kyllä

UV kestoisuus : UL 746C

Paloluokka : UL 94 V0

Hehkulankatesti (IEC 60695): 960C

Tuote löytyy seuraavista luetteloista :

Tempo / TEMPO 1912 / TPC 191209T

TPC 191209T

Fibox

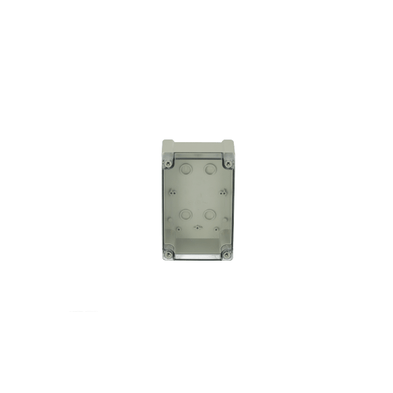

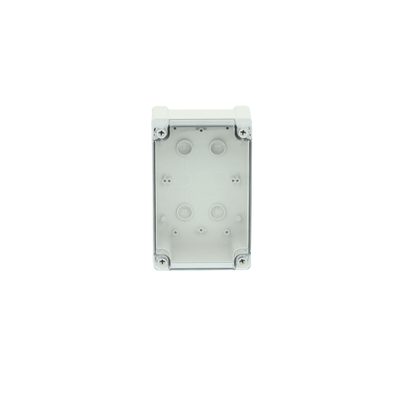

5824005_TPC191209T 360_ANIMA_SMALL.gif

Sample image

Order symbol : TPC 191209T

Tuote nr : 5824005

Tuotekuvaus : Kotelo PC

Lisätieto : Läpinäkyvä kirkas kansi

EAN koodi : 6418074048646

El. number :

  • Suomi : 3424379
Tempo-1912_Combi
Mitat : Pituus Leveys Korkeus
mm : 187 122 90
Materiaalit :
Materiaali : Polykarbonaatti
Lämpötilat :
Lisätarvikkeet :
MIV 10 DIN-35 Asennuskisko, koteloille:
(100 x 35 x 1)
MP 1912 Asennuslevy, koteloille:
DH-3 DIN-35 Asennuskisko, koteloille:
(140 x 35 x 1)
FP 10674 Seinäkiinnike (2 kpl )sis. ruuvit
Luokat :
Ingress protection (EN 60529): IP65;
Iskunkestävyys (EN 62262): IK07; IK08;
electrical_insulation : Suojaeristetty
Halogenivapaa (DIN/VDE 0472, osa 815) : Kyllä
UV kestoisuus : UL 746C
Paloluokka : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40343
