MNX Accessories

Koko : 66 x 80 x 1 mm

100x100x35-100x100x75

MIV 100

Koko : 98 x 48 x 1 mm

130x80x35-130x80x125

MIV 125

Koko : 98 x 98 x 1 mm

130x130x35-130x130x125

MIV 150

Koko : 148 x 98 x 1 mm

180x130x35-255x180x175

MIV 175

Koko : 148 x 148 x 1 mm

180x180x60-180x180x125

MIV 200

Koko : 223 x 148 x 1 mm

255x180x63-255x180x175

MIV 300

Koko : 330 x 225 x 0 mm

360x255x152

DIN Mounting rails

MIN 5

Koko : 50 x 15 x 1 mm

130x80x35-130x80x125

MIN 8

Koko : 80 x 15 x 1 mm

100x100x35-100x100x75

MIN 10

Koko : 100 x 15 x 1 mm

130x80x35-180x130x175

MIN 15

Koko : 150 x 15 x 1 mm

180x130x35-360x255x152

MIN 20

Koko : 225 x 15 x 1 mm

255x180x63-360x255x152

B-3

Koko : 80 x 35 x 1 mm

100x100x35-100x100x75, 110x80x65, 110x80x85

MIV 5

Koko : 50 x 35 x 1 mm

130x80x35-130x80x125

MIV 10

Koko : 100 x 35 x 1 mm

130x80x35-180x130x175

MIV 15

Koko : 150 x 35 x 1 mm

180x130x35-360x255x152

MIV 20

Koko : 225 x 35 x 1 mm

255x180x63-360x255x152

MIV 30

Koko : 329 x 35 x 1 mm

360x255x152

Front panels

FP A 100/130

Koko : 120 x 62 x 1 mm

130x80x35-130x80x125

FP A 125/130

Koko : 120 x 112 x 1 mm

130x130x35-130x130x125

FP A 150/180

Koko : 170 x 112 x 1 mm

180x130x35-180x130x175

FP A 175/180

Koko : 170 x 162 x 1 mm

180x180x60-180x180x150

FP A 200/180

Grey plastic hinges (2 pcs)

Koko : 237 x 170 x 1 mm

255x180x63-255x180x175

Front panel accessories

HFP 130

Front plate hinge series

for FP A 100-125

HFP 180

Front plate hinge series

for FP A 150-200

Hinges and Wall mounting

TH A

incl. mounting screws

TH BA

Black plastic hinges (2 pcs)

incl. mounting screws

FP 22046

Wall fastening lug (4 pcs)

incl. screws

FP 10674

Wall fastening lug (2 pcs) incl. screws

(MNX 300 requires 2 sets) Not for CM 30/25

Blind plugs

MB 14560

Grey blind plug

Use with TH A hinges

MB 14560B

Black blind plug

Use with TH BA hinges

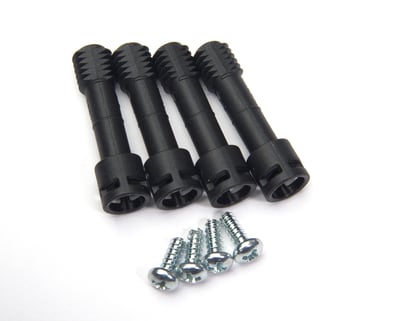

Cover screws

SS 14550L

for 10/13 mm cover, grey

SS 14551H

for 25-100 mm covers, grey

SS 14550BL

for 10/13 mm cover, black

SS 14551BH
