PCTQ3 203612
7025790
EURONORD 3 range is designed to house DIN-rail mounted terminal block and various types of sensors. EURONORD 3 enclosures are available in polycarbonate and ABS.
Dimensions - 200 x 360 x 120
Description : Enclosure, PC
Remarks : Smoked transparent cover (quick-locking)
Package : 2
Unit : Piece
EAN : 6418074099389
SSTL number : 3424269
Electric No. Denmark : 8212052026
Electric No. Sweden : 2508205
ETIM : EC000261
Ingress Protection : IP66 | IP67 | IK07 | IK08
Height (mm) : 200
Width (mm) : 360
Depth (mm) : 120
Height (inch) : 7.87
Width (inch) : 14.17
Depth (inch) : 4.72
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards : EN/IEC 61439-1:2015
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- 203610B.dwg
- 203610B.dxf
- FIBOX_EU203610B.step
- FIBOX_EU203610B.x_t
- FIBOX_EU203610B.zip
- FIBOX_EU3_203602C.dwg
- FIBOX_EU3_203602C.dxf
- FIBOX_EU3_203602C.step
- FIBOX_EU3_203602C.x_t
PCTQ3 203612

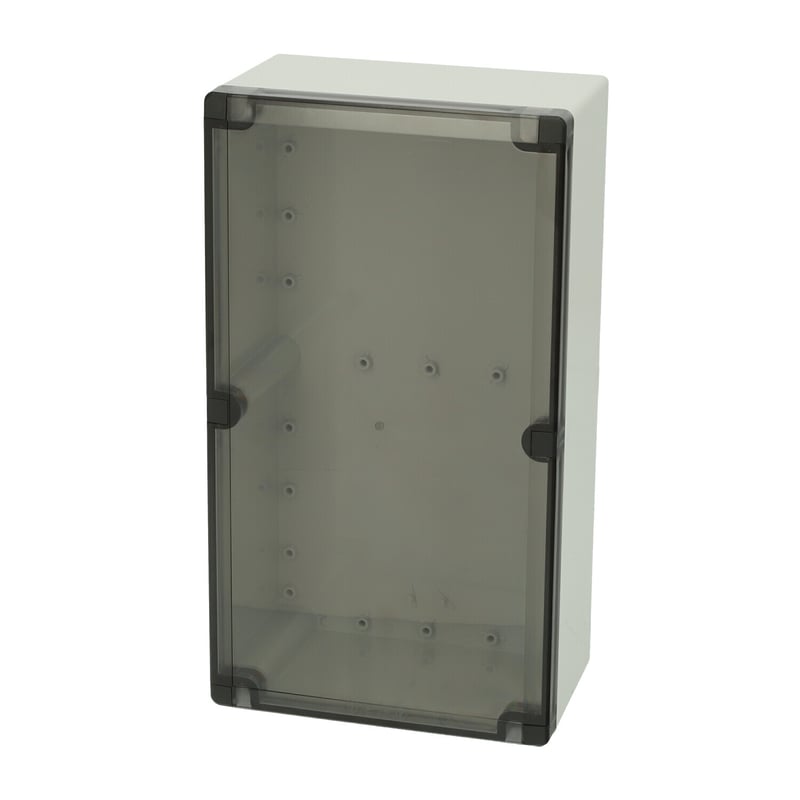

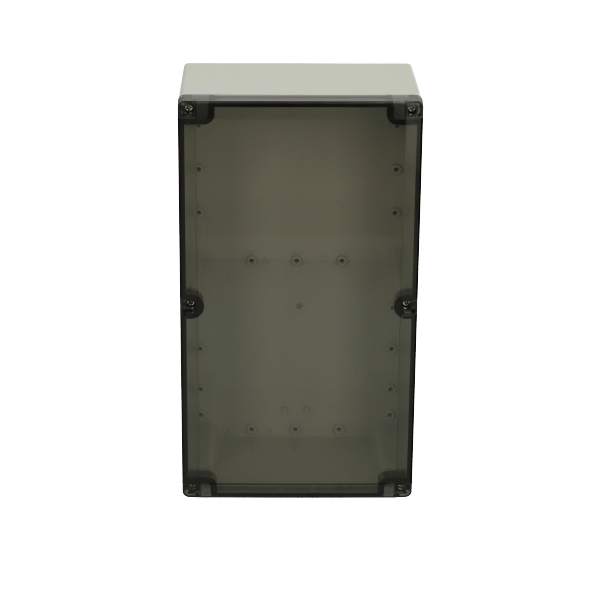

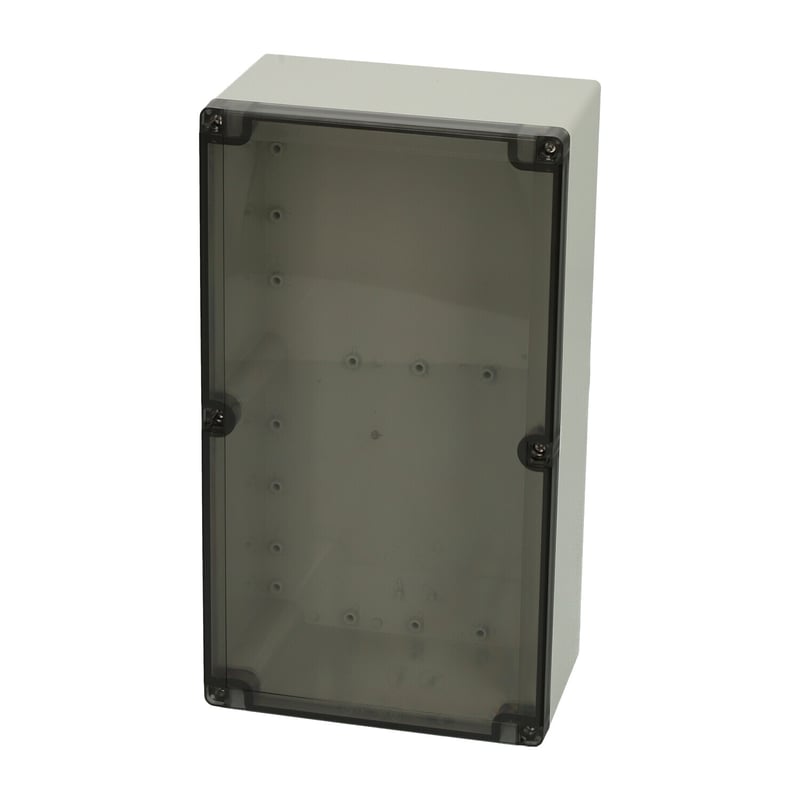

Sample image
Order symbol : PCTQ3 203612
Product nr : 7025790
Description : Enclosure, PC
Remarks : Smoked transparent cover (quick-locking)
EAN : 6418074099389
El. number :
- Finland : 3424269
- Denmark : 8212052026
- Sweden : 2508205

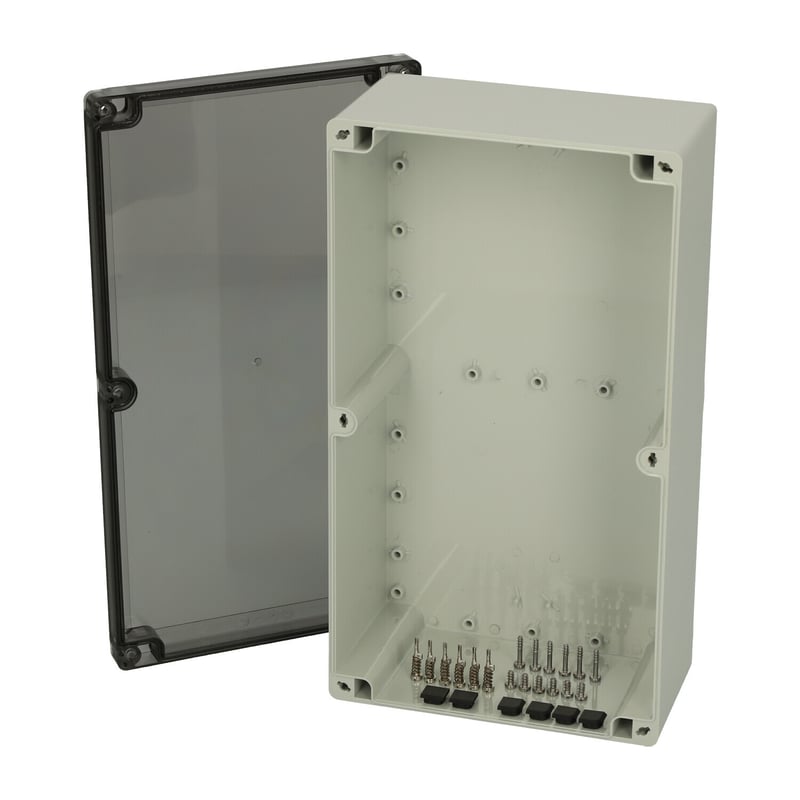

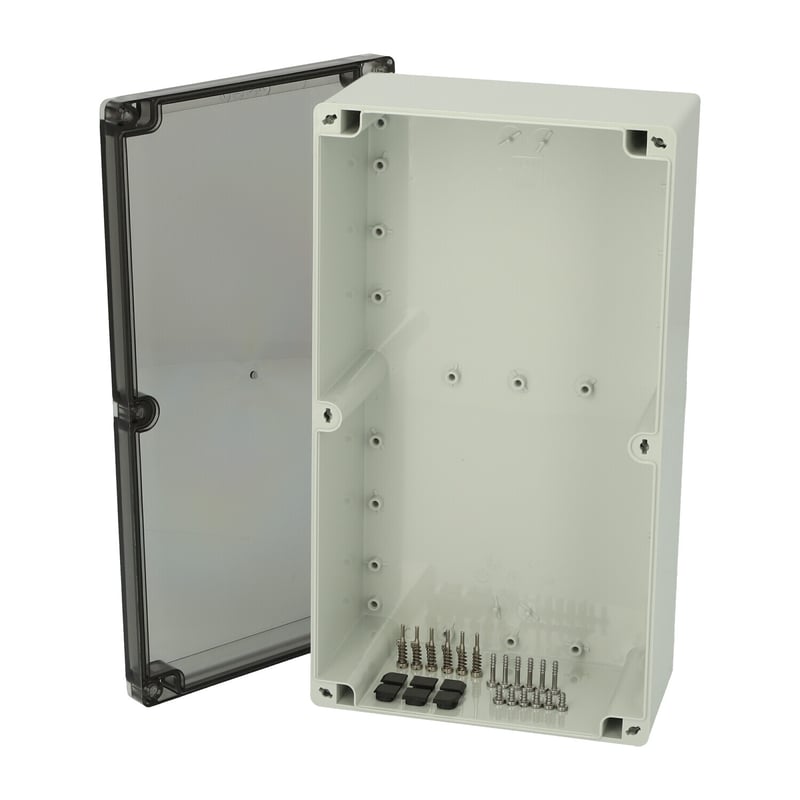

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 200 | 360 | 120 |
| inch : | 7.87 | 14.17 | 4.72 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Clear transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| TM 2036 |
Mounting plate, for enclosures:
(318 x 186 x 1.5) |
| TH A |
Grey plastic hinges (2 pcs)
(30 x 20 x 12) |
| TRH 2036 |
DIN-35 Mounting rail, for enclosures:
(35 x 340 x 1.5) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| SGSFimko_EURONORD | |
