EKO 80-G 3730558
Dimensions 280 x 280 x 80
Dimensions 11.02 x 11.02 x 3.15
Technical data
Product nr : 3730558
Description : Cover, PC
Remarks : Grey
Package : 4
Unit : Piece
EAN : 6418074000330
SSTL number : 3420168
Electric No. Denmark : 8212007152
Electric No. Sweden : 2537914
ETIM : EC002620
Height (mm) : 280
Width (mm) : 280
Depth (mm) : 80
Height (inch) : 11.02
Width (inch) : 11.02
Depth (inch) : 3.15
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
/ /
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
EKO 80-G

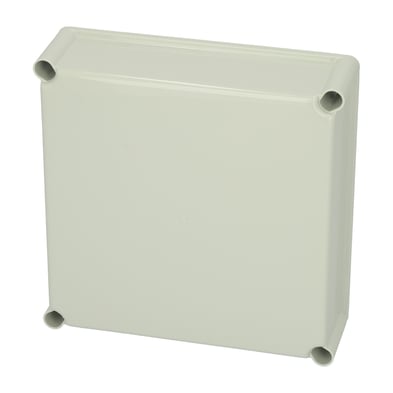

Sample image
Order symbol : EKO 80-G
Product nr : 3730558
Description : Cover, PC
Remarks : Grey
EAN : 6418074000330
El. number :
- Finland : 3420168
- Denmark : 8212007152
- Sweden : 2537914
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 280 | 280 | 80 |
| inch : | 11.02 | 11.02 | 3.15 |
| Materials : |
|---|
| Temperatures : | |
|---|---|
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| EKOZR |
Extension frame, for enclosures:
(280 x 280 x 50) |
| EKV 22 |
DIN-35 Mounting rail, for enclosures:
(235 x 35 x 1) |
| EKOVT |
Mounting plate, for enclosures:
(238 x 238 x 1) |
| MPI EKO 2828 |
Multiperforated plastic mounting plate
(244 x 244 x 4) |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Certificates : | |
|---|---|
| SGSFIMKO_EK | |
