SOLID / SOLID 5628 / ABS 5628 13 T-3FSH

ABS 5628 13 T-3FSH 9996271

Dimensions 560 x 280 x 130.

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC : IP65; IK08; EN 62208:2003. IEC 62208:2003

Product number : 9996271 Download product card

Technical data

Product:

Product nr: 9996271

Description: Enclosure. ABS

Remarks: Transparent hinged cover

Package: 1

Unit: Piece

EAN: 6418074060990

SSTL number: 3435804

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 560

Width (mm): 280

Depth (mm): 130

Height (inch) : 22.05

Width (inch) : 11.02

Depth (inch) : 5.12

Materials :

Material: ABS

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) : -40 … 60

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529) : IP65;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695) : 650 °C

NEMA Class :

Product is connected to following catalogs :

SOLID / SOLID 5628 / ABS 5628 13 T-3FSH

Dimensional Drawings

CAD Files

Contact

Accessories

EKTZR

Extension frame. for enclosures:
(560 x 280 x 50)

EKTVT

Back Panel. for enclosures:
(518 x 238 x 1)

EKV 22

DIN-35 Mounting rail. for enclosures:
(235 x 35 x 1)

EKV 50

DIN-35 Mounting rail. for enclosures:
(515 x 35 x 1)

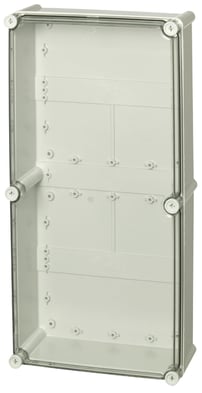

Sample image

Order symbol: ABS 5628 13 T-3FSH

Product nbr: 9996271

Description: Enclosure. ABS

Remarks: Transparent hinged cover

EAN: 6418074060990

El. number:

Finland: 3435804
Denmark:
Sweden:

Including: Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

Dimensions:	Height	Width	Depth
mm:	560	280	130
inch:	22.05	11.02	5.12

Materials:
Material:	ABS
Base colour:	RAL 7035 -light grey
Cover colour:	Clear transparent
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 80
Temperature °C (continuous):	-40 … 60
Temperature °F (short term):	-40 … 175
Temperature °F (continuous):	-40 … 140

Accessories:
EKTZR	Extension frame. for enclosures: (560 x 280 x 50)
EKTVT	Back Panel. for enclosures: (518 x 238 x 1)
EKV 22	DIN-35 Mounting rail. for enclosures: (235 x 35 x 1)
EKV 50	DIN-35 Mounting rail. for enclosures: (515 x 35 x 1)

Rating:
Ingress protection (EN 60529):	IP65;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	-
Flammability Rating:	UL 94 HB
Glow Wire Test (IEC 695-2-1) °C:	650 °C
NEMA Class

Certificates:
Certificate NCS FI 30308
