Cable management / Membrane flange plates / FMC 3F

FMC 3F 3550795

Dimensions 217 x 85 x 1.

  • PC :
Technical data
Product:

Product nr : 3550795

Description : Size 2, Lead-through 7 (Ø3-55mm)

Remarks :

Package : 12

Unit : Piece

EAN : 6418074056528

SSTL number :

Electric No. Denmark : 8212009299

Electric No. Sweden : 2665512

ETIM :

Dimensions :

Height (mm) : 217

Width (mm) : 85

Depth (mm) : 1

Height (inch) : 8.54

Width (inch) : 3.35

Depth (inch) : 0.04

Materials :

Material :

Temperatures :

Temperature °C (short term) :

Temperature °C (continuous) :

Temperature °F (short term) :

Temperature °F (continuous) :

Ratings :

Ingress Protection (EN 60529):

Impact Resistance (EN 62262):

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): C

NEMA Class :

Product is connected to following catalogues :

Cable management / Membrane flange plates / FMC 3F

CAD Files
Certificates and Declarations
Contact

FMC 3F

Fibox
fmc_3f

Sample image

Order symbol : FMC 3F

Product nr : 3550795

Description : Size 2, Lead-through 7 (Ø3-55mm)

Remarks :

EAN : 6418074056528

El. number :

  • Finland :
  • Denmark : 8212009299
  • Sweden : 2665512

Including :

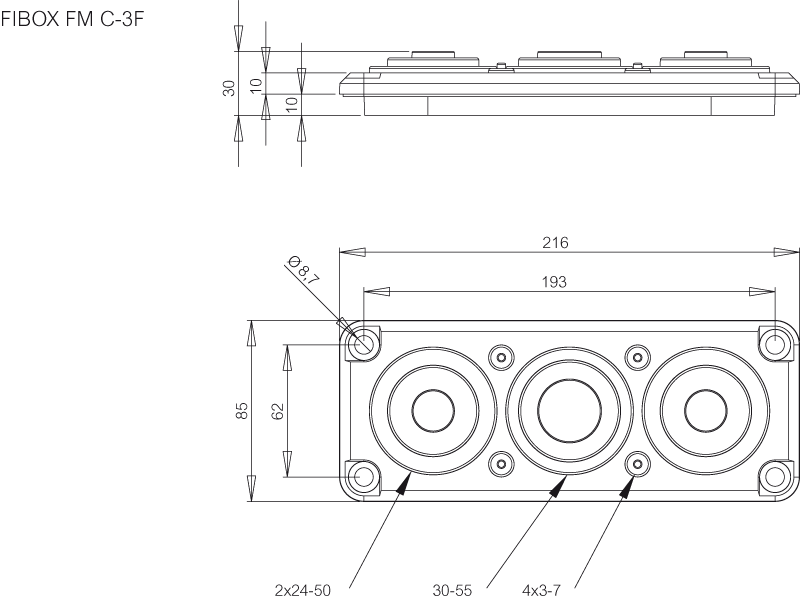

FIBOX FMC-3 dim
Dimensions : Height Width Depth
mm : 217 85 1
inch : 8.54 3.35 0.04
Materials :
Material :
Base colour :
Cover colour :
Gasket material :
Temperatures :
Temperature °C (short term) :
Temperature °C (continuous) :
Temperature °F (short term) :
Temperature °F (continuous) :
Rating :
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : C
NEMA Class
Certificates :
