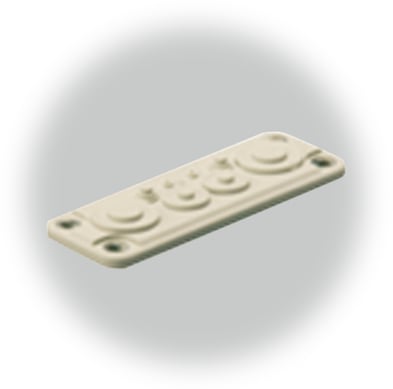

fmb_5_f
Next slide
fmb_5_f

Cable management / Membrane flange plates / FMB 5F

FMB 5F 3550794

Dimensions 140 x 49 x 1.

  • PC :
Technical data
Product:

Product nr : 3550794

Description : Size 1, Lead-through 8 (Ø2.5-25mm)

Remarks : Optional RJ-45 lead-through

Package : 12

Unit : Piece

EAN : 6418074056511

SSTL number :

Electric No. Denmark : 8212009260

Electric No. Sweden : 2665510

ETIM :

Dimensions :

Height (mm) : 140

Width (mm) : 49

Depth (mm) : 1

Height (inch) : 5.51

Width (inch) : 1.93

Depth (inch) : 0.04

Materials :

Material :

Temperatures :

Temperature °C (short term) :

Temperature °C (continuous) :

Temperature °F (short term) :

Temperature °F (continuous) :

Ratings :

Ingress Protection (EN 60529):

Impact Resistance (EN 62262):

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): C

NEMA Class :

Product is connected to following catalogues :

Cable management / Membrane flange plates / FMB 5F

CAD Files
Certificates and Declarations
Contact

FMB 5F

Fibox

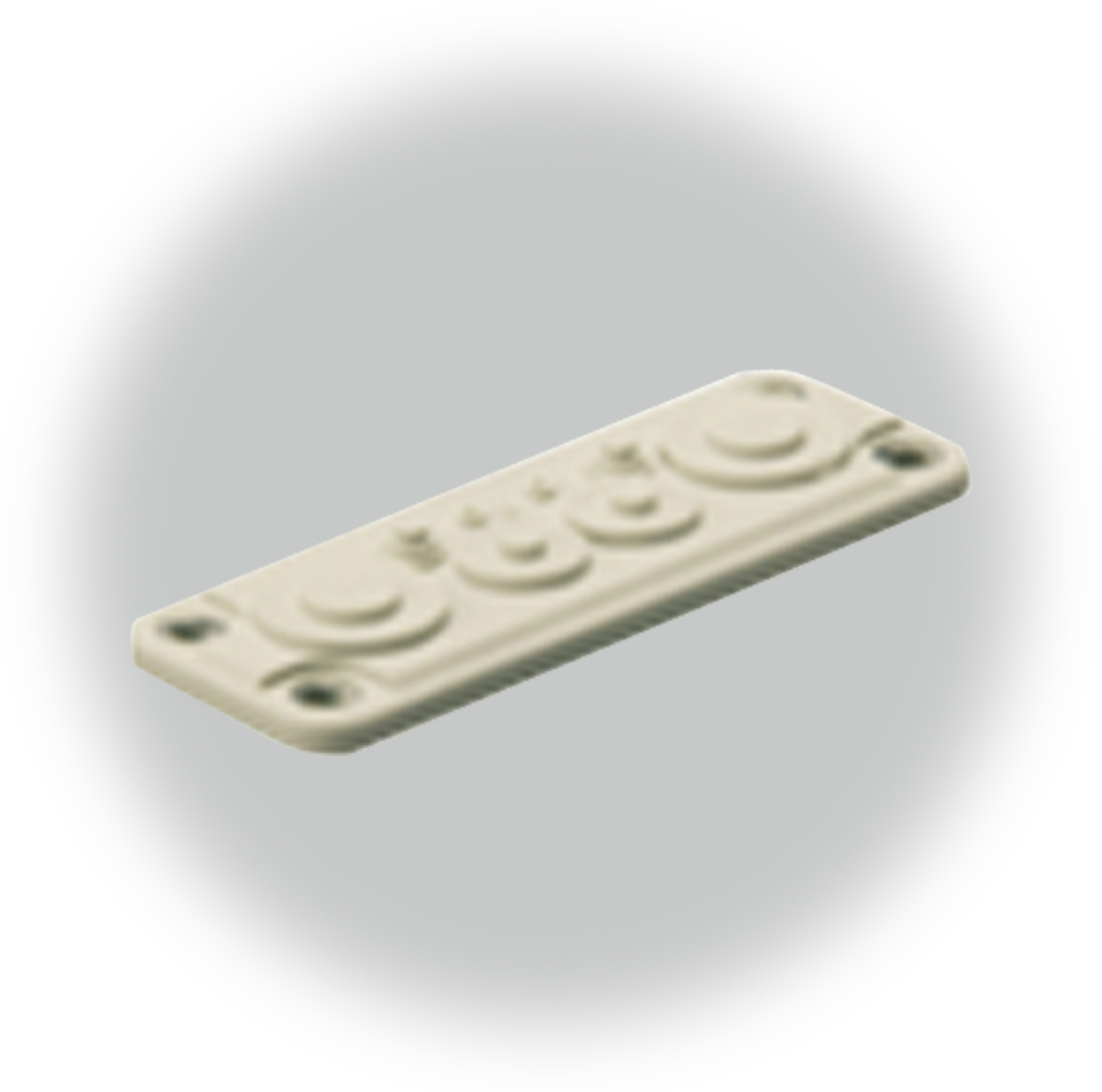

fmb_5_f

Sample image

Order symbol : FMB 5F

Product nr : 3550794

Description : Size 1, Lead-through 8 (Ø2.5-25mm)

Remarks : Optional RJ-45 lead-through

EAN : 6418074056511

El. number :

  • Finland :
  • Denmark : 8212009260
  • Sweden : 2665510

Including :

FIBOX-FMB-5F_dim
Dimensions : Height Width Depth
mm : 140 49 1
inch : 5.51 1.93 0.04
Materials :
Material :
Base colour :
Cover colour :
Gasket material :
Temperatures :
Temperature °C (short term) :
Temperature °C (continuous) :
Temperature °F (short term) :
Temperature °F (continuous) :
Rating :
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : C
NEMA Class
Certificates :
