EKPVT 3770552

Dimensions 338 x 238 x 1.

PC:

Product number: 3770552 Download product card

Technical data

Product:

Product nr 3770552

Description : Mounting plate, for enclosures:

Remarks : 380x280x130, 380x280x180, 380x280x230, 560x380x180

Package : 4

Unit : Piece

EAN : 6418074039781

SSTL number : 3421023

Electric No. Denmark : 8212007848

Electric No. Sweden : 2538309

ETIM :

Dimensions :

Height (mm) : 338

Width (mm) : 238

Depth (mm) : 1

Height (inch) : 13.31

Width (inch) : 9.37

Depth (inch) : 0.04

Materials :

Material :

Temperatures :

Temperature °C (short term) :

Temperature °C (continuous) :

Temperature °F (short term) :

Temperature °F (continuous) :

Ratings :

Ingress Protection (EN 60529):

Impact Resistance (EN 62262):

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695): C

NEMA Class :

Dimensional Drawings

CAD files

Certificates and Declarations

FAQ

Open Support & FAQ

Catalogues

Open Downloadables

Contact

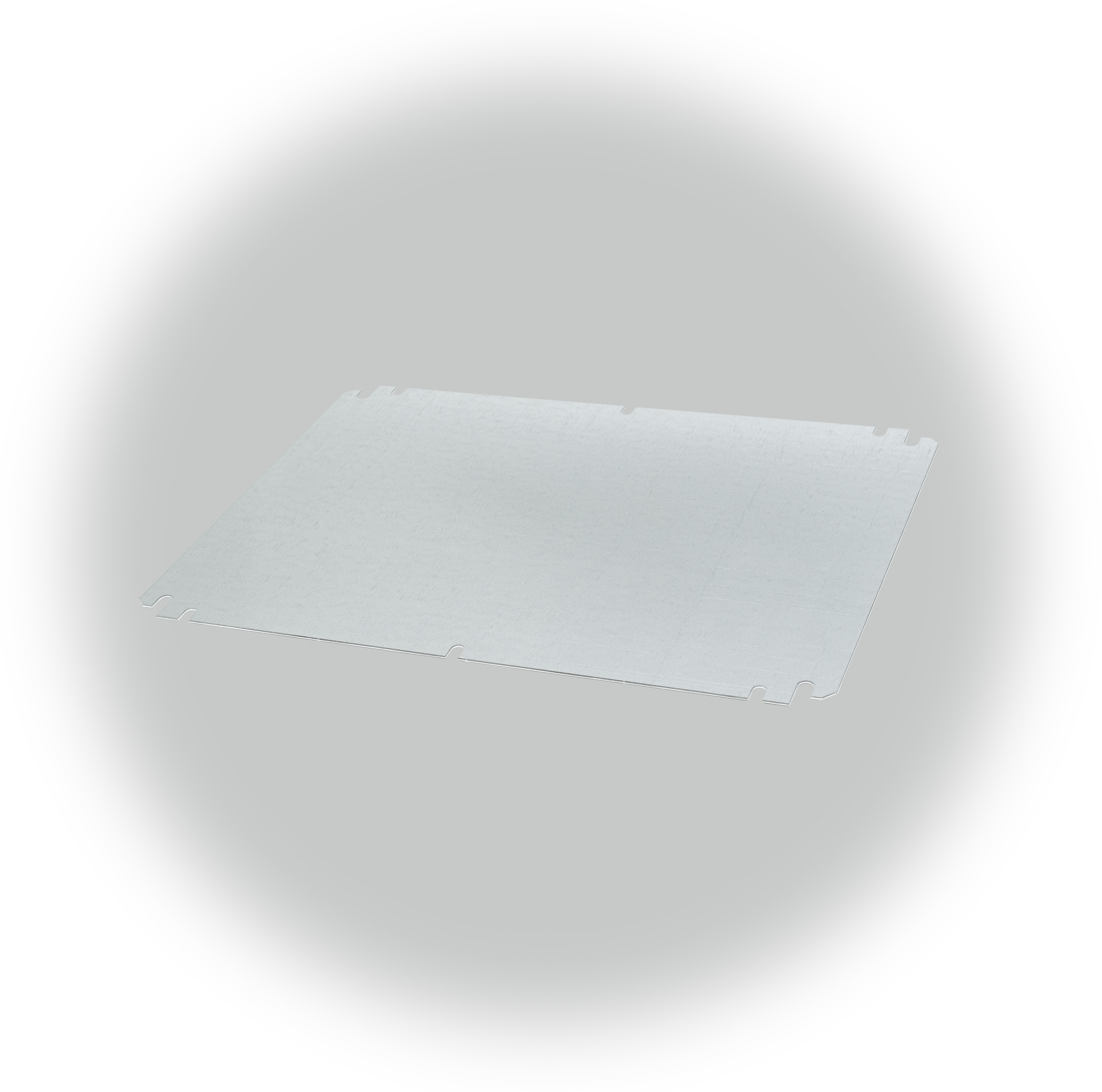

Sample image

Order symbol : EKPVT

Product nr : 3770552

Description : Mounting plate, for enclosures:

Remarks : 380x280x130, 380x280x180, 380x280x230, 560x380x180

EAN : 6418074039781

El. number :

Finland : 3421023
Denmark : 8212007848
Sweden : 2538309

Including :

Dimensions :	Height	Width	Depth
mm :	338	238	1
inch :	13.31	9.37	0.04

Materials :
Material :
Base colour :
Cover colour :
Gasket material :

Temperatures :
Temperature °C (short term) :
Temperature °C (continuous) :
Temperature °F (short term) :
Temperature °F (continuous) :

Rating :
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation :	Not insulated
Halogen free (DIN/VDE 0472, Part 815):	0
UV resistance :	-
Flammability Rating :
Glow Wire Test (IEC 695-2-1) °C :	C
NEMA Class

Certificates :
