Technical data
Product nr : 3730692
Description : Window for 13 modules
Remarks : Clear cover
Package : 10
Unit : Piece
EAN : 6418074031686
SSTL number : 3420119
Electric No. Denmark : 8212008009
Electric No. Sweden : 2539782
Height (mm) : 257
Width (mm) : 108
Height (inch) : 10.12
Width (inch) : 4.25
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Catalogues
Contact
L 13

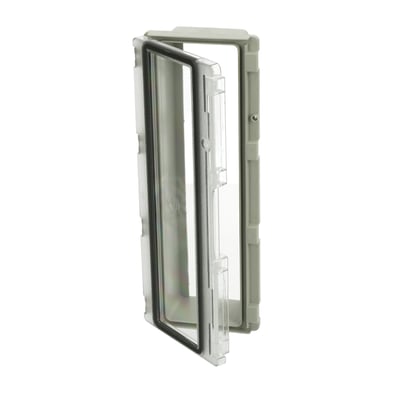

Sample image
Order symbol : L 13
Product nr : 3730692
Description : Window for 13 modules
Remarks : Clear cover
EAN : 6418074031686
El. number :
- Finland : 3420119
- Denmark : 8212008009
- Sweden : 2539782
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 257 | 108 | 0 |
| inch : | 10.12 | 4.25 | 0 |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK08; |
| Electrical insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | No |
| UV resistance : | - |
