Technical data
Product nr : 3730661
Description : Window for 4 modules
Remarks : Clear cover
Package : 10
Unit : Piece
EAN : 6418074035493
SSTL number : 3420138
Electric No. Denmark : 8212008041
Electric No. Sweden : 2539773
Height (mm) : 96
Width (mm) : 77
Depth (mm) : 1
Height (inch) : 3.78
Width (inch) : 3.03
Depth (inch) : 0.04
Temperature °C (short term) : -40 … 120 °C
Temperature °F (short term) : -40 … 250 °F
Temperature °F (continuous) : -40 … 175 °F
Dimensional Drawings
Catalogues
Contact
L 04

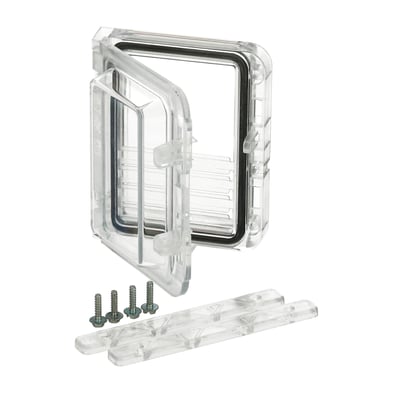

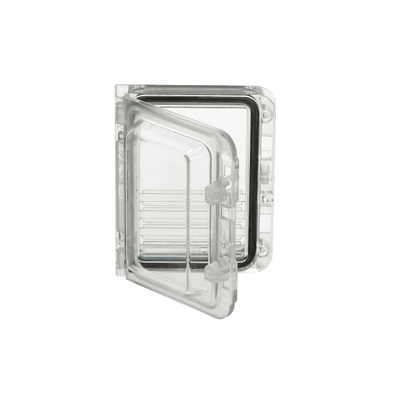

Sample image
Order symbol : L 04
Product nr : 3730661
Description : Window for 4 modules
Remarks : Clear cover
EAN : 6418074035493
El. number :
- Finland : 3420138
- Denmark : 8212008041
- Sweden : 2539773
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 96 | 77 | 1 |
| inch : | 3.78 | 3.03 | 0.04 |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 °C |
| Temperature °F (short term) : | -40 … 250 °F |
| Temperature °F (continuous) : | -40 … 175 °F |
| Ratings : | |
|---|---|
| Electrical insulation : | Not insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | No |
| UV resistance : | - |
